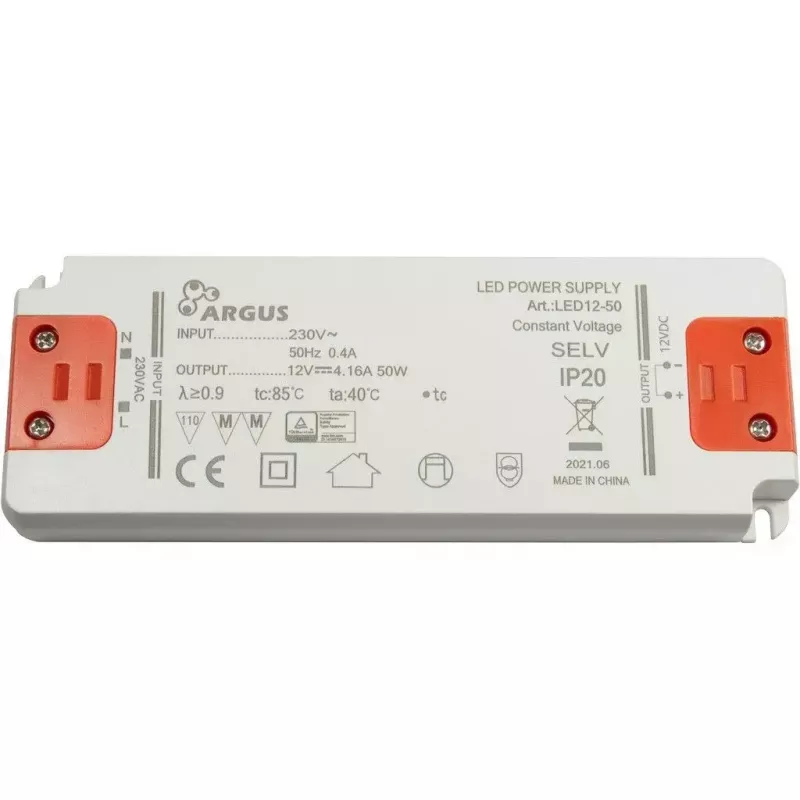

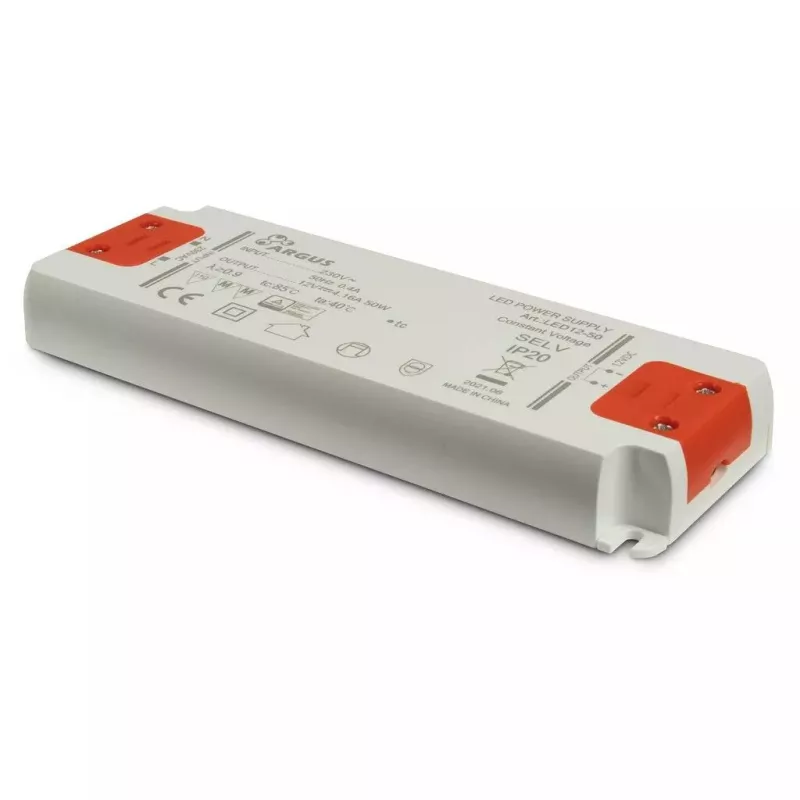

Controlador LED Inter-Tech LED12-50 50W IP20 100000h

The LED12-50 is a 50W LED driver from INTER-TECH with a 12V DC output and a rated output current of 4160 mA. It accepts an AC input voltage range of 207–253 V, has an IP20 protection rating and an estimated MTBF of 100,000 hours. The driver is compact (58 mm × 160 mm × 18 mm) and is designed to power low-voltage LED modules and strips in indoor installations.

Advantages

The Inter-Tech LED12-50 combines a 50W output and a stable 12V/4160 mA supply in a compact housing, offering five built-in protective circuits to guard connected LEDs against common electrical faults. Its long MTBF of 100,000 hours and conformity with IP20 make it suitable for continuous indoor operation where a reliable low-voltage LED driver is required.

Suitable for

• Powering 12V LED strips and modules
• Indoor lighting installations where IP20 is sufficient
• Small commercial or residential LED lighting projects

Key specifications

• Output power: 50 W
• Output voltage: 12 V DC
• Output current: 4160 mA
• Input voltage: 207–253 V AC
• Protection class: IP20
• MTBF: 100,000 hours
• Dimensions (W × D × H): 58 × 160 × 18 mm
• Brand: INTER-TECH, MPN: 88882200, EAN: 4260455646987

How to use

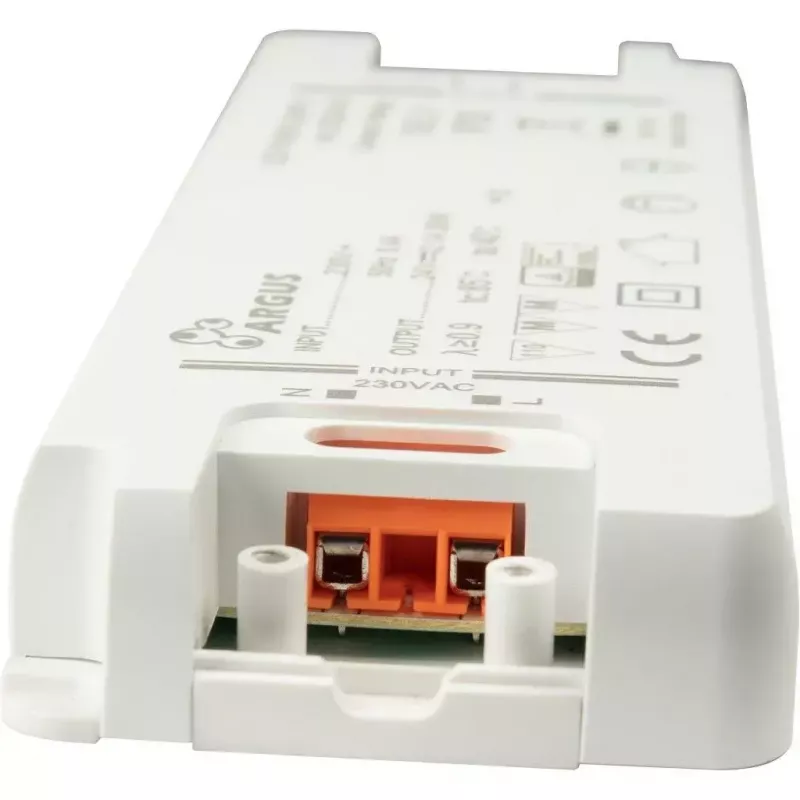

Install the LED12-50 in a dry, ventilated indoor location and secure it according to applicable electrical regulations. Connect the AC input to a 207–253 V supply and the 12 V DC output to the LED load, observing correct polarity. Ensure the combined LED load does not exceed 50 W or the rated 4160 mA output. Allow space for cooling and follow local wiring codes during installation.

Recommendations

Use the driver only in indoor environments protected from moisture and dust consistent with IP20. Verify load compatibility and keep the driver within its specified input voltage range to ensure longevity and reliable performance.
