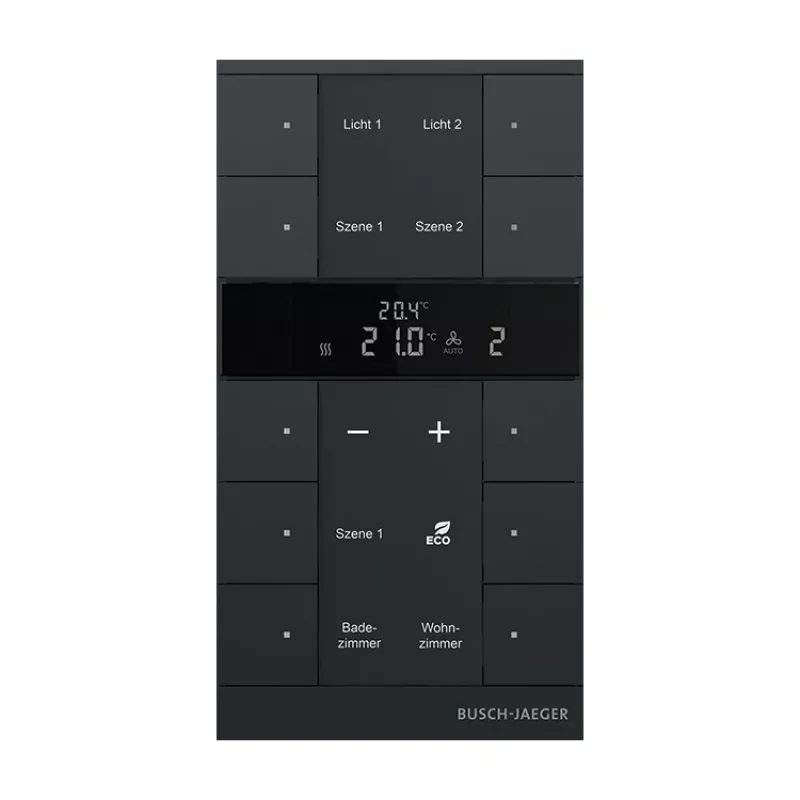

Busch-Jaeger Termostato de ambiente 10 canales, negro mate SBR-F-10.0.11-885 (2CKA006220A0901)

In a modern smart home, the Busch-Jaeger Room Temperature Controller 10-fold in matte black provides precise climate management for up to ten separate zones or functions. Installed flush-mounted in a standard wall box, it integrates seamlessly with the Busch-free@home system, allowing you to adjust heating and cooling from a central touch interface with clear text display.

Key specifications

• System: Busch-free@home
• Product type: Room temperature controller
• Number of functions: 10-fold
• Colour: Matte black
• Mounting type: Flush-mounted
• Display: LCD with clear text display
• Control elements: Touch buttons
• Integrated sensors: Temperature sensor
• Operating modes: Heating, cooling, automatic
• Temperature setting range: 5 °C to 30 °C
• Power supply: free@home bus voltage (24 V DC)
• Protection class: IP20
• Material: Thermoplastic
• Bus system: free@home bus
• Additional inputs: 2 binary inputs (e.g., for window contact, external sensor)
• Backlight: Yes
• Software features: Weekly program, presence simulation, frost protection, valve protection, heating/cooling changeover
• Installation depth: 29 mm
• Operating temperature: 5 °C to 45 °C

Why choose it

This controller offers centralized temperature management for multiple rooms or zones, reducing the need for individual thermostats. Its touch buttons and backlit display provide intuitive operation, while the integrated sensor and binary inputs allow for enhanced automation, such as window contact detection.

Ideal use cases

• Residential homes with multiple heating/cooling zones
• Office buildings requiring centralized climate control
• Integration into Busch-free@home smart home installations

Good to know

The device is powered directly from the free@home bus, eliminating the need for a separate power supply. Its flush-mounted design ensures a clean, modern appearance.
