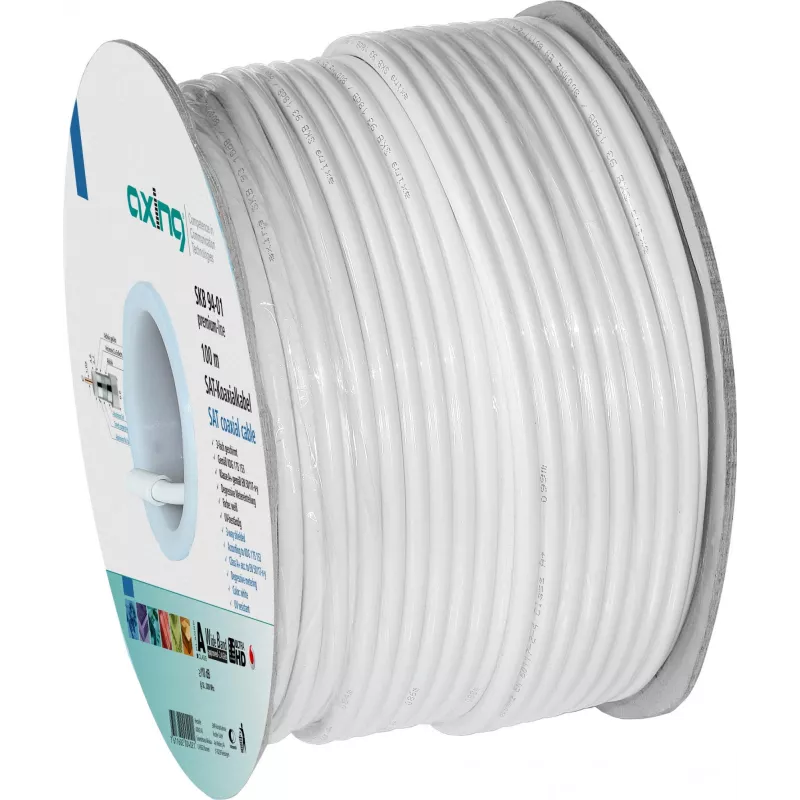

Cable coaxial Axing SKB09401 100 m funda de PVC 6,6 mm

The Axing SKB09401 is a 100 m coaxial cable with a PVC jacket and a 6.6 mm outer diameter designed for indoor SAT and CATV installations. Constructed with a copper inner conductor and a physically-foamed dielectric, the cable provides consistent signal transmission and durability for building cabling and audiovisual distribution.

Advantages

This coaxial cable meets KDG 1 TS 153 requirements and is classified A+ according to EN 50117-x-y, with fire behaviour rated Eca per EN 50575. The cable features a copper inner conductor, a physically-foamed dielectric, and a combined screening of aluminium foil, tinned copper braid and aluminium foil for improved electromagnetic shielding. It comes in white and is supplied on a 100 m cardboard spool with degressive metering.

Suitable for

Key specifications

How to use

Strip the outer jacket and prepare the inner conductor and dielectric according to standard coaxial cable termination procedures. Use compatible F-type or other appropriate connectors and compression tools for a secure connection. Route the cable indoors, avoiding contact with sharp edges and sources of excessive heat, and fix it with suitable clips or conduits to prevent mechanical stress.

Recommendations

For optimal performance, maintain proper bend radius according to manufacturer guidelines, avoid excessive tension when pulling the cable, and ensure the screening is properly grounded at distribution points to minimize interference.
