Cable coaxial de antena ShiverPeaks 80012 — 100 % apantallado, 75 dB de atenuación, compatible con BK

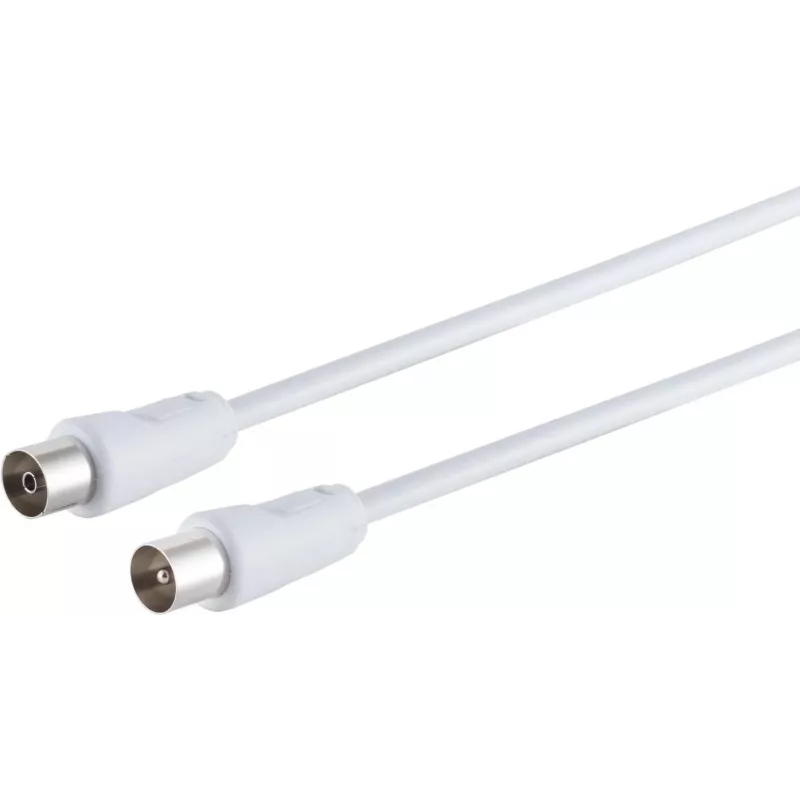

Coaxial Antenna Cable ShiverPeaks 80012 is a 1.50 m, straight white coaxial cable designed for antenna and RF connections where high shielding and signal integrity are required. The cable features a 9.5 mm connector interface with a solid copper inner conductor (0.5 mm) and double shielding: an inner aluminium-foil layer and an outer copper braid (32 × 0.12 mm). The assembly and connectors are fully shielded and conform to relevant DIN connection dimensions, making the cable compatible with BK-type antenna equipment, routers, TV tuners and other RF devices.

Advantages

The cable’s double shielding construction provides rated shielding attenuation of 75 dB, offering strong protection against EMI and RFI to maintain stable signal transmission. A fully shielded connector and coupling reduce leakage and ensure continuity of the shield across the connection. The use of a solid copper inner conductor supports reliable low-loss signal transfer for analog and digital RF applications. The straight, 1.50 m length and standard connector interface simplify installation in domestic and professional setups.

Suitable for (tasks / use cases)

• Connecting external antennas to routers, modems and access points
• Linking TV tuners, set-top boxes and terrestrial or satellite antenna inputs
• Use in installations requiring strong EMI/RFI protection and consistent RF performance
• Indoor antenna routing where a 1.50 m straight cable is convenient

Key specifications

• Cable length: 1.50 m
• Connector type: straight antenna connector, 9.5 mm interface dimensions
• Inner conductor: solid copper, 0.5 mm diameter
• Shielding: double shield — aluminium foil inner layer + copper braid outer layer (32 × 0.12 mm)
• Shielding attenuation: 75 dB
• Cable colour: white

How to use

Ensure both the device and antenna connectors are clean and free of debris before connecting. Align the straight connectors and push or screw them together according to the device’s coupling method until a secure mechanical and electrical fit is achieved. Route the cable without sharp bends; maintain bend radii appropriate for coaxial cables to avoid damaging the inner conductor or degrading shielding performance. When disconnecting, hold the connector body rather than pulling the cable sheath to avoid stress on the internal conductor and shield.

Recommendations

For best RF performance, keep the cable away from large sources of electromagnetic interference (power supplies, large motors) and avoid tight coils. Use the 1.50 m length for short runs; for longer distances, select a cable with appropriate attenuation and shielding characteristics. Confirm compatibility with your equipment’s BK connector type and DIN connection dimensions before installation.
