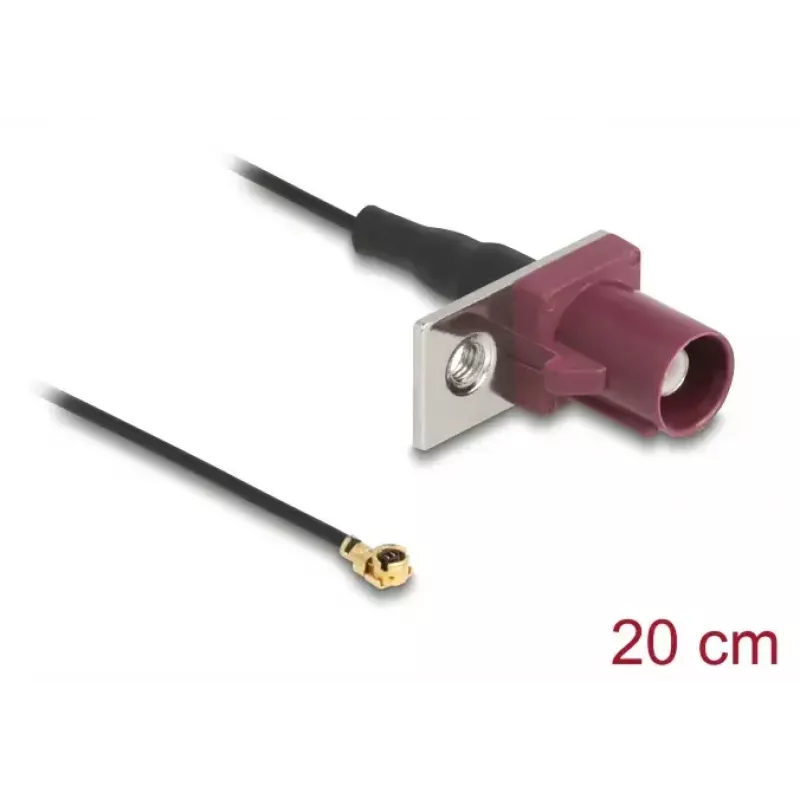

Cable coaxial DELOCK 90730 — FAKRA D a I-PEX MHF1, 0,2 m, Ø1,13 mm, negro/burdeos

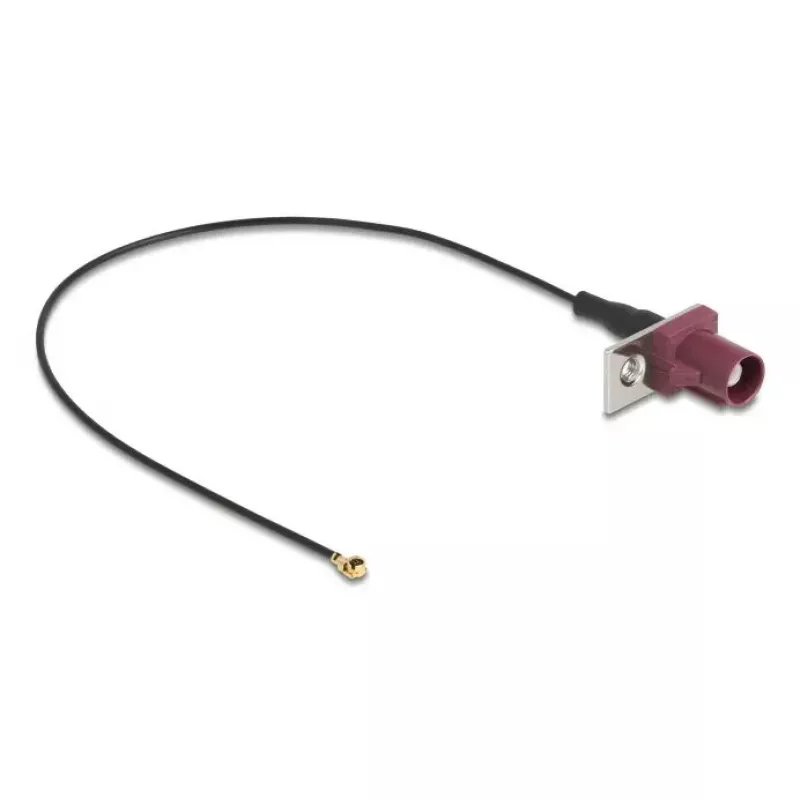

DELOCK 90730 is a 0.2 m coaxial cable designed for short RF connections. It features a FAKRA D male straight plug on one end and an I-PEX MHF1 male angled connector on the other, with a conductor diameter of 1.13 mm. The cable’s compact overall dimensions make it suitable for installations where space is limited, enabling reliable signal transfer between automotive or telematics modules and board-level antennas or adapters. The product is supplied as a single unit in a polybag and is intended for use in radio frequency systems that require a 50 Ω transmission line.

Advantages

The cable combines standardized automotive FAKRA termination with a small board-level I-PEX MHF1 connector to provide a stable RF connection in confined spaces. Its short length and 1.13 mm conductor diameter reduce insertion loss over the short runs it is intended for, while the 50 Ω impedance ensures compatibility with common RF components. The angled I-PEX MHF1 connector facilitates routing in tight assemblies, and the color combination assists identification during installation.

Suitable for

Key specifications

How to use

Ensure both mating connectors are compatible and that connected devices are powered down before installation. Insert the FAKRA D plug into the corresponding FAKRA receptacle until it clicks to secure the connection, and press the I-PEX MHF1 connector onto the board-level mating socket with gentle but firm pressure to avoid damaging the delicate interface. Route the cable to avoid sharp bends and pinch points; maintain a bend radius suitable for small-diameter coaxial assemblies. Verify signal continuity and RF performance after installation.

Recommendations

For reliable performance, use this short coaxial cable only for the intended short-distance RF links and maintain gentle bends; avoid repeated mating cycles on the I-PEX MHF1 connector to preserve contact integrity. When used in automotive environments, verify compatibility with surrounding components and secure the cable to prevent movement under vibration.
