Cable coaxial Televes T-100 PVC Eca Class A - 250m caja con alivio de tracción

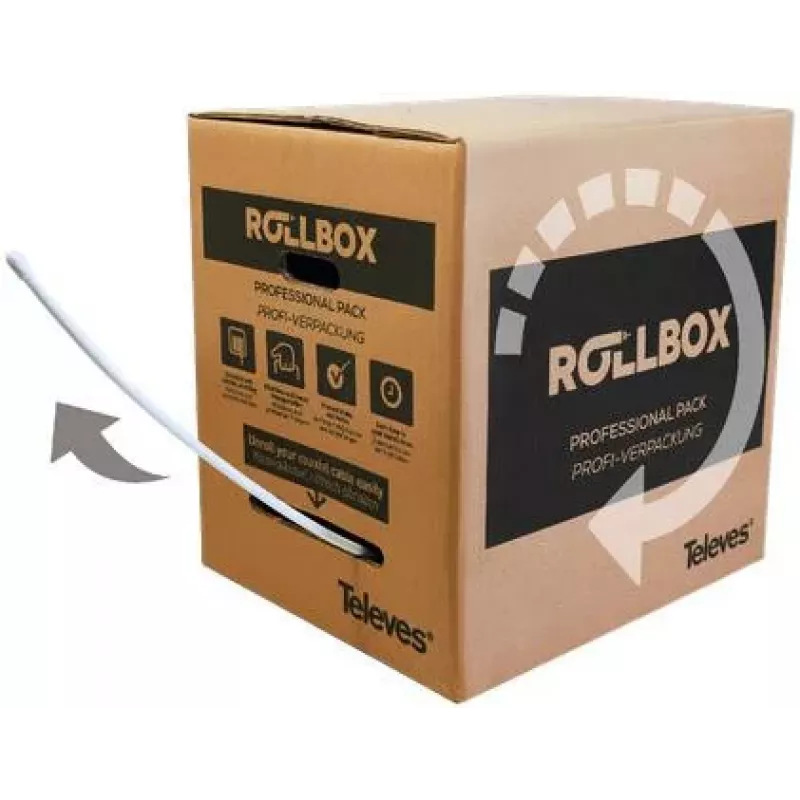

The Televes T-100 coaxial cable is a high-performance, double-shielded cable designed for professional TV and satellite installations. With Class A shielding and Eca fire classification, it ensures excellent signal integrity and safety. Supplied in a convenient 250m pull box for easy handling and storage.

Advantages

Superior shielding with aluminium foil and tinned copper braid (>77% coverage) provides excellent protection against interference. Class A rating guarantees optimal performance for DVB-T, DVB-S/S2, and DAB/FM signals. The PVC jacket is durable and flexible, suitable for indoor and outdoor use.

Suitable for

• DVB-T and DVB-S/S2 antenna installations
• DAB/FM radio distribution
• Satellite TV systems
• Broadband communication networks

Key specifications

• Cable type: Coaxial
• Impedance: 75 Ohm
• Inner conductor: Copper, 1.00 mm diameter
• Dielectric: Foamed PE

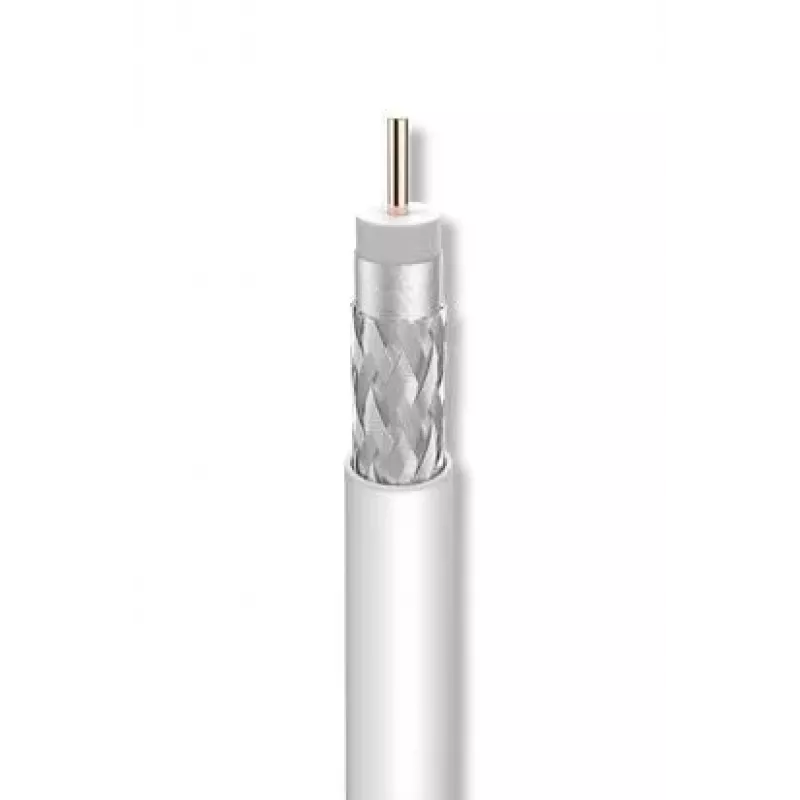

• Shielding: Double (Aluminium foil + Tinned copper braid)
• Braid coverage: >77%
• Jacket material: PVC
• Outer diameter: 6.9 mm
• Length: 250 m
• Fire classification: Eca (EN 50575)
• Shielding class: Class A (EN 50117-2-4)
• Attenuation @ 200 MHz: 8.0 dB/100m
• Attenuation @ 862 MHz: 17.5 dB/100m
• Attenuation @ 2150 MHz: 29.0 dB/100m
• Return loss (5-2150 MHz): >20 dB
• Operating temperature: -5°C to +70°C

Recommendations

For best performance, use with F-type connectors and ensure proper grounding. Suitable for both indoor and outdoor installations when protected from direct sunlight.
