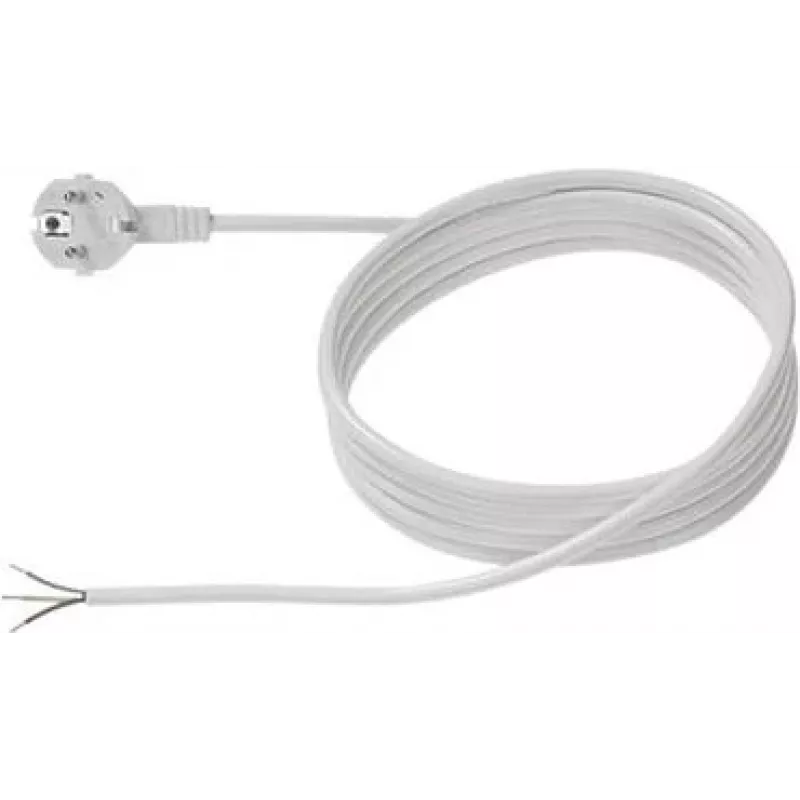

Cable de alimentación Bachmann 304.274 blanco 2 m

Cable de alimentación Bachmann 304.274 blanco 2 m
-20%
Black Week
Cable de alimentación Bachmann 304.274 blanco 2 m
14,62 €
18,28 €−20 %
PDF
PDF
Stock 64 Código 2240007 Modelo 304.274 Garantía 3 años

Envíos y devoluciones

Entrega estimada lunes, 14 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Power Cable Bachmann 304.274 White 2 m is a 2‑metre mains lead with a right‑angle plug featuring a dual earthing contact system and a 30 mm stripped second end fitted with end sleeves. Rated for 250 V and 16 A, this white power cable is intended to provide safe power connection between equipment and mains supply.

Advantages

The cable combines a space-saving right‑angle plug with a dual earthing contact for reliable grounding. At 2 metres length it offers extended reach while the white colour allows discreet integration in light interiors. The stripped end with end sleeves facilitates secure, low‑resistance termination when connecting to devices or distribution blocks.

Suitable for

  • Connecting electrical equipment to a 230–250 V mains supply
  • Office and home appliances requiring a 16 A mains lead
  • Installations where a right‑angle plug reduces strain or saves space
  • Wiring where a prepared stripped end with end sleeves is needed

Key specifications

  • Brand: Bachmann
  • Model / MPN: 304.274
  • EAN: 4016514002238
  • Length: 2 m
  • End 1: right‑angle plug with dual earthing contact, moulded
  • End 2: 30 mm stripped with end sleeves
  • Rated voltage: 250 V
  • Rated current: 16 A
  • Colour: white

How to use

Insert the right‑angle plug into a suitable mains socket rated for 250 V and 16 A. Use the stripped end with end sleeves to terminate the cable to the intended device or terminal block, ensuring connections are tightened to manufacturer torque specifications and that no bare conductor is exposed. Inspect the cable and terminations for correct polarity and secure earthing before applying power.

Recommendations

Use this cable only with equipment and sockets that match the 250 V / 16 A rating. Do not modify the moulded plug. Replace the cable if the insulation is damaged or if connections become loose. For fixed installations, ensure compliance with local electrical regulations and, if required, have the termination performed by a qualified electrician.

Aspectos destacados
  • Connecting electrical equipment to a 230–250 V mains supply
  • Office and home appliances requiring a 16 A mains lead
  • Installations where a right‑angle plug reduces strain or saves space
  • Wiring where a prepared stripped end with end sleeves is needed
  • Brand: Bachmann
  • Model / MPN: 304.274
  • EAN: 4016514002238
  • Length: 2 m
  • End 1: right‑angle plug with dual earthing contact, moulded
  • End 2: 30 mm stripped with end sleeves
  • Rated voltage: 250 V
  • Rated current: 16 A
  • Colour: white

Especificaciones

Especificaciones
Ángulo del conector
90
Color del producto
Blanco
Corriente de entrada
16
Diámetro
7 mm
Formato del conector 1
Angular
Género del conector 1
Macho
Longitud del cable
2 m
Material de la funda
Policloruro de vinilo (PVC)
Peso
0.2 kg
Tamaño del núcleo
1 mm²
Tensión de entrada
250

Folleto

Abrir documento
Historial de precios de los últimos 6 meses
Cable de alimentación Bachmann 304.274 blanco 2 m
Actual
14,62 €
Mínimo 7 d
14,62 €
Máximo 7 d
17,26 €
Variación 24 h
-2,64 €   -15%
Variación 7 d
-2,53 €   -15%
Variación 30 d
-3,37 €   -19%
