Cable de alimentación Bachmann 322.174 negro 2 m

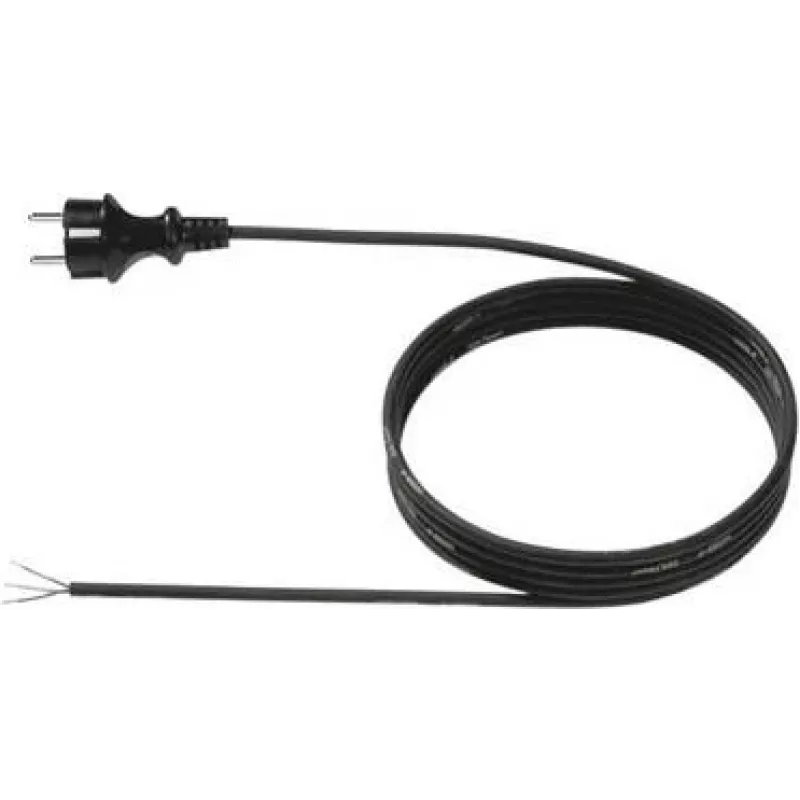

The Bachmann 322.174 power cable is a 2 m black mains lead rated for 250 V and 16 A. It features a moulded central plug with a dual earthing contact system and a splash-water-protected plug body. The opposite end is stripped to 30 mm and fitted with end sleeves, providing a ready-to-connect conductor finish for installation or device connection.

Advantages

This power cable offers a standard 16 A current rating and 250 V voltage compatibility for typical household and office equipment. The moulded plug with dual earthing contacts enhances grounding reliability, while the splash-water protection increases safety in environments where moisture exposure is possible. Pre-stripped conductors with end sleeves simplify wiring and reduce preparation time during installation.

Suitable for

• Connecting household appliances and office devices requiring 16 A, 250 V supply
• Equipment installations where a 2 m cable length is sufficient
• Applications needing a pre-stripped cable end for quick terminal connection

Key specifications

• Brand: Bachmann
• Model / MPN: 322.174
• EAN: 4016514002818
• Length: 2 m
• Rated voltage: 250 V
• Rated current: 16 A
• End 1: central moulded plug with dual earthing contact system, splash-water protected
• End 2: 30 mm stripped conductors with end sleeves
• Color: Black

How to use

Verify that the device to be powered is compatible with a 250 V, 16 A supply. Insert the moulded central plug into a matching socket ensuring correct grounding contact. Connect the pre-stripped conductors with end sleeves to the device terminals or terminal block, observing correct polarity and secure clamping to prevent loose connections. Do not use the cable if insulation or connectors are damaged.

Recommendations

For safe operation, use the cable only within its rated electrical limits (250 V, 16 A), avoid prolonged exposure to direct water jets despite splash protection, and perform periodic inspections of the plug, insulation and stripped end sleeves. Ensure connections are made by qualified personnel when used in permanent installations.
