Cable de alimentación EFB Elektronik Euro‑C7, acodado 180°, negro, 5 m, 2×0,75 mm²

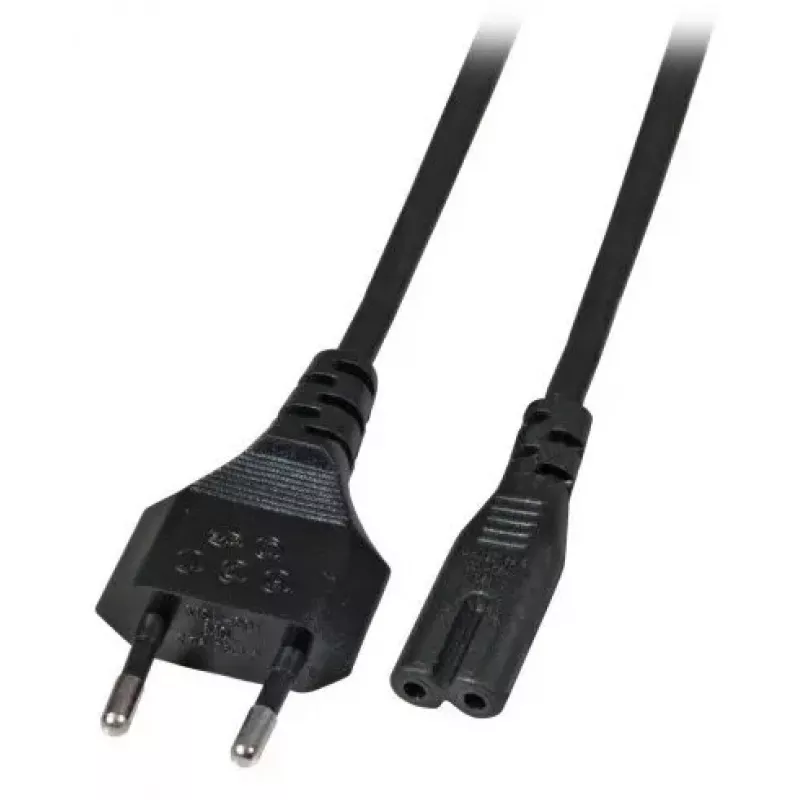

The Power cable EFB Elektronik Euro‑C7 is a 5 m mains lead designed for devices that use the Euro‑C7 (figure‑8) connector. The cable features a 180° angled Euro plug and a twin conductor construction with a 2×0.75 mm² cross‑section. Its black PVC jacket provides flexibility for routing behind furniture or equipment while maintaining safe insulation for everyday home and office use.

Advantages

The 180° angled Euro plug reduces strain on the outlet and allows the cable to run close to walls or equipment, improving installation neatness. The 5 m length offers extended reach compared with short mains leads, enabling flexible placement of audio/video devices, small appliances or portable electronics. A standard 2×0.75 mm² conductor cross‑section ensures consistent power delivery for low‑to‑medium power devices while the flexible PVC jacket resists kinking and simplifies handling.

Suitable for

• Audio and video equipment with a Euro‑C7 (figure‑8) inlet
• Laptops and portable CD/DVD players that accept a figure‑8 mains connector
• Small household appliances and chargers with compatible inlets
• Office equipment where a longer reach and low‑profile plug orientation are needed

Key specifications

• Connector type: Euro‑C7 (figure‑8) on device end; European 2‑pin mains plug at wall end with 180° angled body
• Cable length: 5 m
• Conductor configuration: twin conductor
• Conductor cross‑section: 2×0.75 mm²
• Insulation/jacket material: flexible PVC
• Color: black

How to use

Ensure the device is switched off before connecting the mains lead. Insert the Euro‑C7 (figure‑8) end into the device inlet until it seats firmly. Align the angled Euro plug with the wall outlet and insert it fully, taking advantage of the low‑profile orientation to keep the cable close to the wall. Avoid tight bends near the connectors and route the cable to prevent tripping hazards. Disconnect by pulling the plug body rather than the cable itself.

Recommendations

Use this cable for low‑to‑medium power devices specified to accept a Euro‑C7 connector. Do not use the cable with devices that require higher current or different connector types. Inspect the cable periodically for damage to the jacket or connectors and replace it if any wear or exposed conductors are found.
