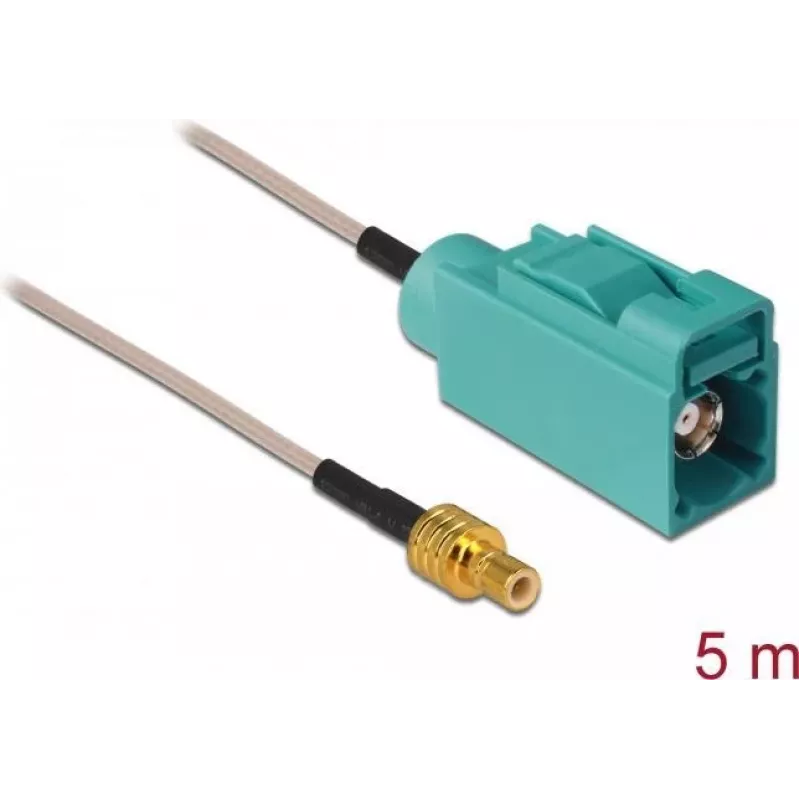

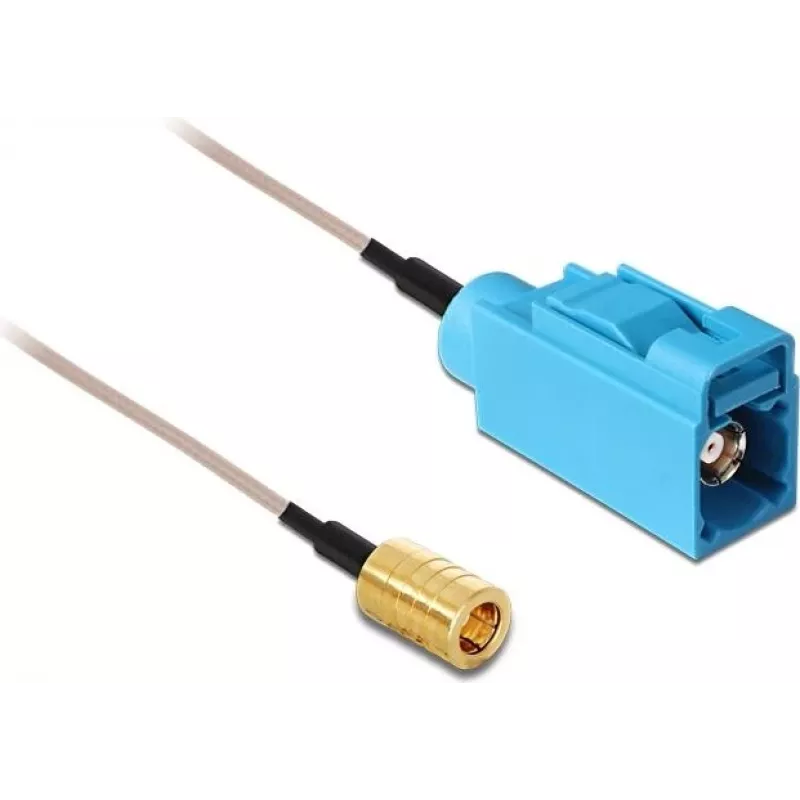

Cable de antena Delock SMB hembra a FAKRA Z hembra RG-316 5 m negro 88671

When a standard antenna cable cannot bridge the gap between an SMB-equipped device and a FAKRA Z port, this Delock 5-metre RG-316 cable provides the missing link. It is built for installations that demand a longer reach without sacrificing signal integrity.

Who is it for

Technicians and integrators working with automotive, marine, or industrial RF systems who need a dependable, low-loss connection between SMB and FAKRA Z interfaces.

Main features

• Connector 1: SMB female
• Connector 2: FAKRA Z female (water blue code)
• Cable type: RG-316, 50 Ohm impedance
• Length: 5 metres
• Double shielded, FEP jacket
• Operating temperature range: -55 °C to 200 °C

Tips

Ensure the FAKRA Z coding matches your mating connector; the water blue key prevents incorrect mating with other FAKRA codes. For best performance, avoid exceeding the minimum bending radius of 10 mm.
