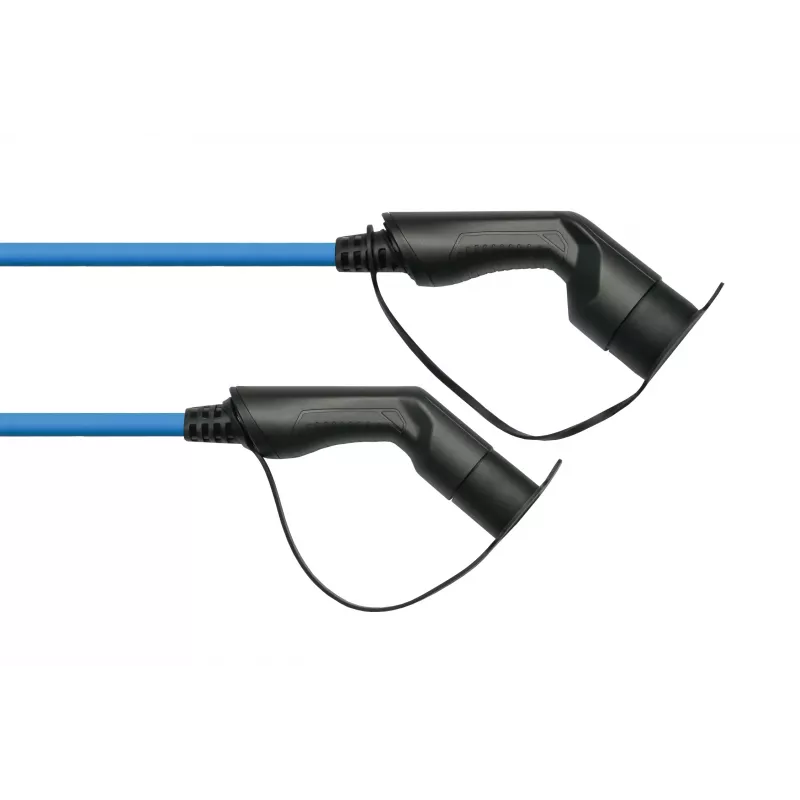

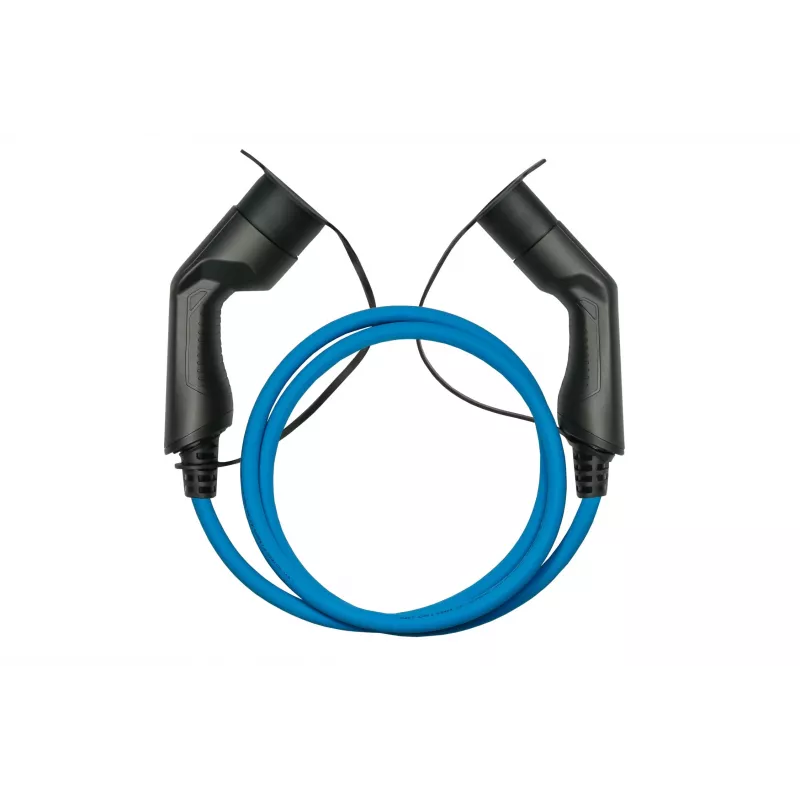

Cable de carga para VE kabelmeister® Modo 3, conector Type 2 a conector hembra, trifásico, 16 A, 11 kW, Azul, 5 m

The kabelmeister® EVC01-050B is a high-quality Mode 3 electric vehicle charging cable designed for safe and efficient charging of electric and plug-in hybrid vehicles. With Type 2 connectors on both ends (plug for charging station, socket for vehicle), this 3-phase cable supports up to 16 A and 11 kW charging power. The 5-meter length in blue offers flexibility and visibility. Manufactured with TPE sheath and copper conductors, it complies with IEC 62196-2 and EN 50620 standards, and is TÜV and CE certified.

Advantages

Reliable 3-phase charging with 11 kW power; robust TPE outer sheath for durability; IP54 protection when connected; wide operating temperature range from -30°C to +50°C; certified safety and quality.

Suitable for

• Electric vehicles (EV) and plug-in hybrid electric vehicles (PHEV) with Type 2 inlet
• Charging stations with Type 2 socket
• Private and public charging infrastructure

Key specifications

• Charging Mode: Mode 3

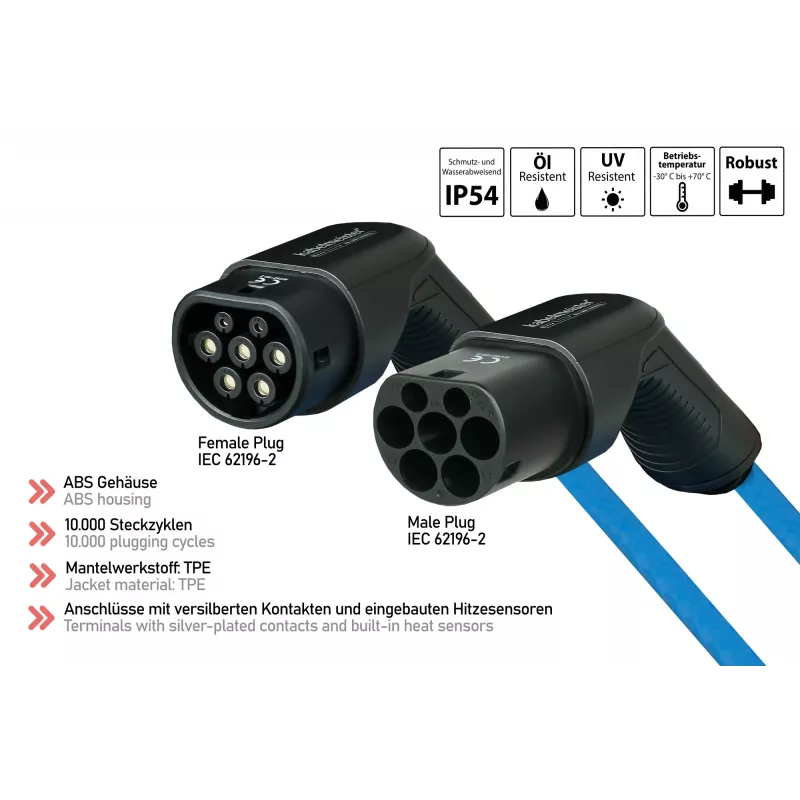

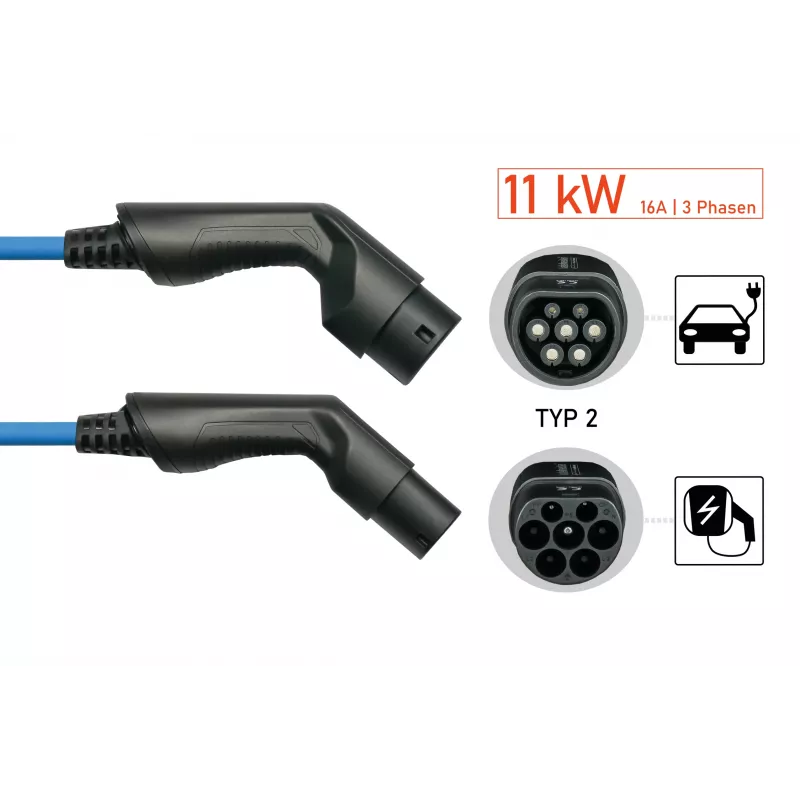

• Connector 1: Type 2 male plug (charging station side)
• Connector 2: Type 2 female socket (vehicle side)
• Number of Phases: 3-phase
• Maximum Current: 16 A
• Maximum Charging Power: 11 kW
• Cable Length: 5 m
• Cable Colour: Blue
• Operating Voltage: 400V AC
• Protection Rating: IP54 (connected)
• Conductor Material: Copper
• Sheath Material: TPE
• Power Conductor Cross-section: 5 x 2.5 mm²
• Signal Conductor Cross-section: 2 x 0.5 mm²
• Standards: IEC 62196-2, EN 50620
• Certifications: CE, TÜV

Recommendations

For optimal performance, ensure your charging station and vehicle support 3-phase charging. Always use the cable within its specified ratings. Store in a dry place when not in use.
