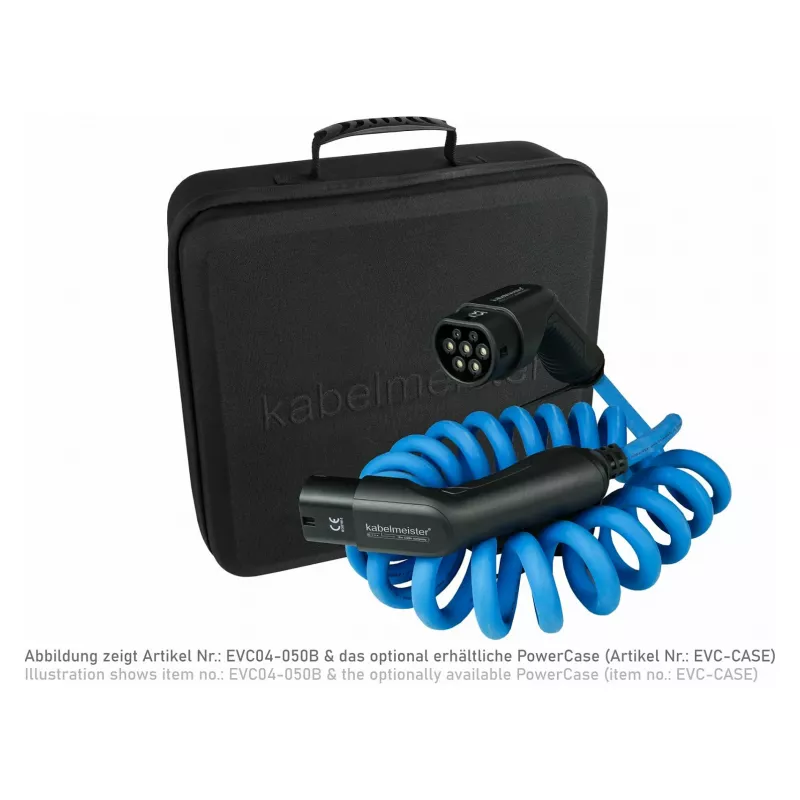

Cable de carga para VE KABELMEISTER Modo 3 Type 2 11 kW 16 A trifásico en espiral 5 m Negro

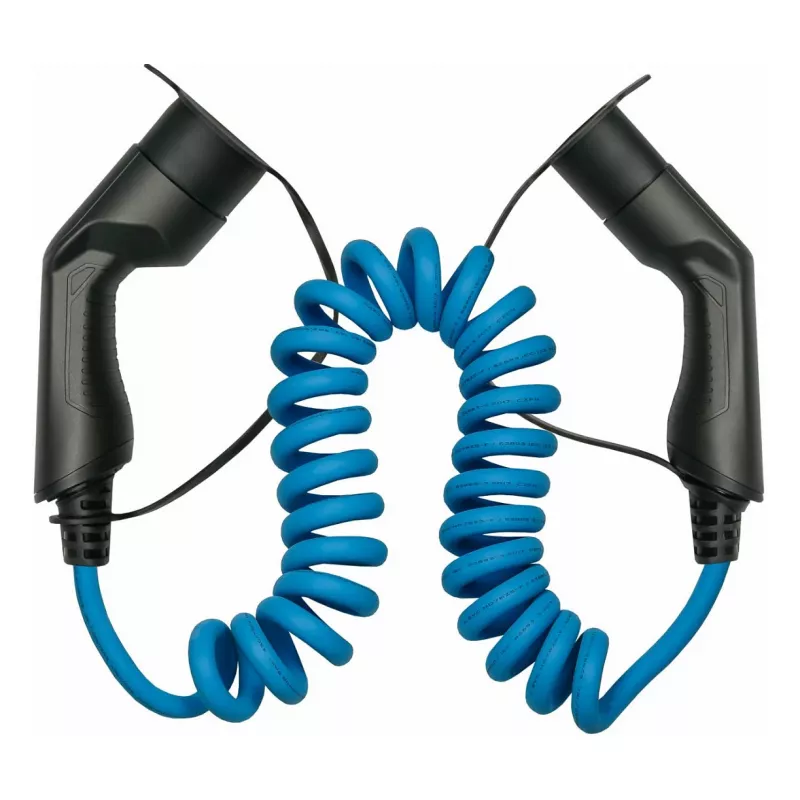

The KABELMEISTER Mode 3 Type 2 EV Charging Cable is a high-quality, coiled charging cable designed for electric vehicles with Type 2 inlets. With a maximum charging power of 11 kW and a current of 16 A, this 3-phase cable ensures efficient and reliable charging at home or public AC charging stations. The coiled design (5 m extended length) provides tangle-free storage and flexible reach, making it ideal for everyday use.

Advantages

Coiled cable prevents tangling and saves space; robust TPE insulation ensures durability and flexibility even in extreme temperatures (-30°C to +50°C); IP54 protection class when connected guarantees safe operation in various weather conditions; complies with IEC 62196-2 and EN 50620 standards for maximum safety and compatibility.

Suitable for

• All electric vehicles with a Type 2 inlet (e.g., Tesla, BMW, Volkswagen, Audi, Mercedes-Benz, Renault, Hyundai, Kia, etc.)
• All AC charging stations with a Type 2 outlet (Mode 3)
• Private and public charging infrastructure

Key specifications

• Charging Mode: Mode 3 (AC)
• Connector Type (Vehicle Side): Type 2 male (IEC 62196-2)
• Connector Type (Charging Station Side): Type 2 male (IEC 62196-2)
• Maximum Charging Power: 11 kW
• Maximum Charging Current: 16 A
• Number of Phases: 3-Phase
• Operating Voltage: 400V AC
• Cable Type: Coiled (Spiralkabel)
• Cable Length (Extended): 5 m
• Conductor Configuration: 5 x 2.5 mm² (Power) + 2 x 0.5 mm² (Control)
• Protection Class (Connectors): IP54 (when connected)
• Operating Temperature Range: -30°C to +50°C
• Cable Color: Black
• Standards Compliance: IEC 62196-2, EN 50620
• Insulation Material: TPE (Thermoplastic Elastomer)

Recommendations

For optimal performance, ensure your charging station supports Mode 3 and Type 2 connectors. This cable is not compatible with Type 1 vehicles or CHAdeMO fast chargers. Always store the cable in a dry place when not in use.
