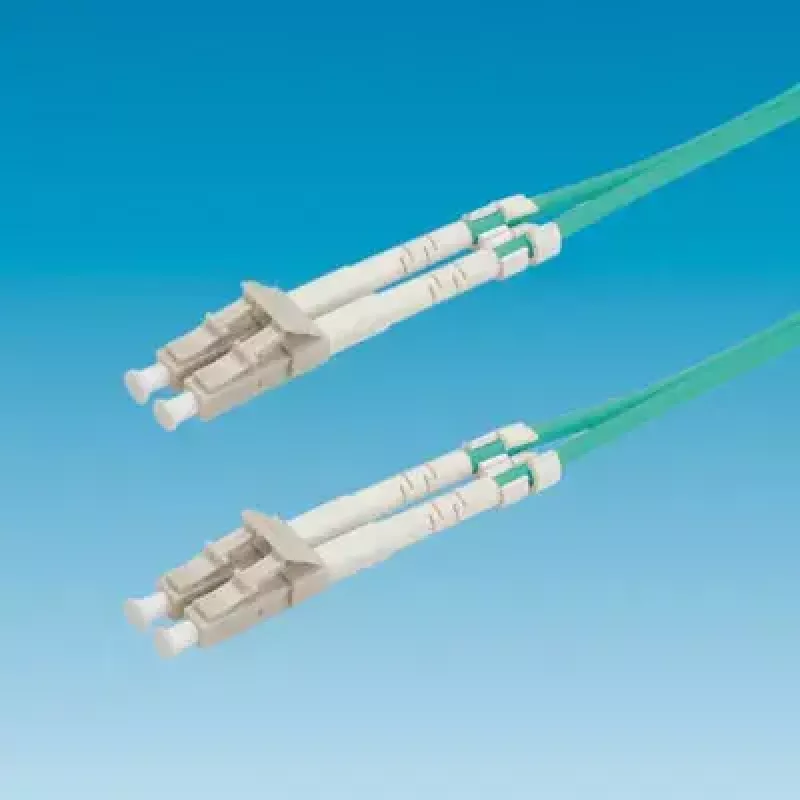

Cable de conexión de fibra óptica ROLINE 50/125µm OM3 LC/LC Low-Loss 1m

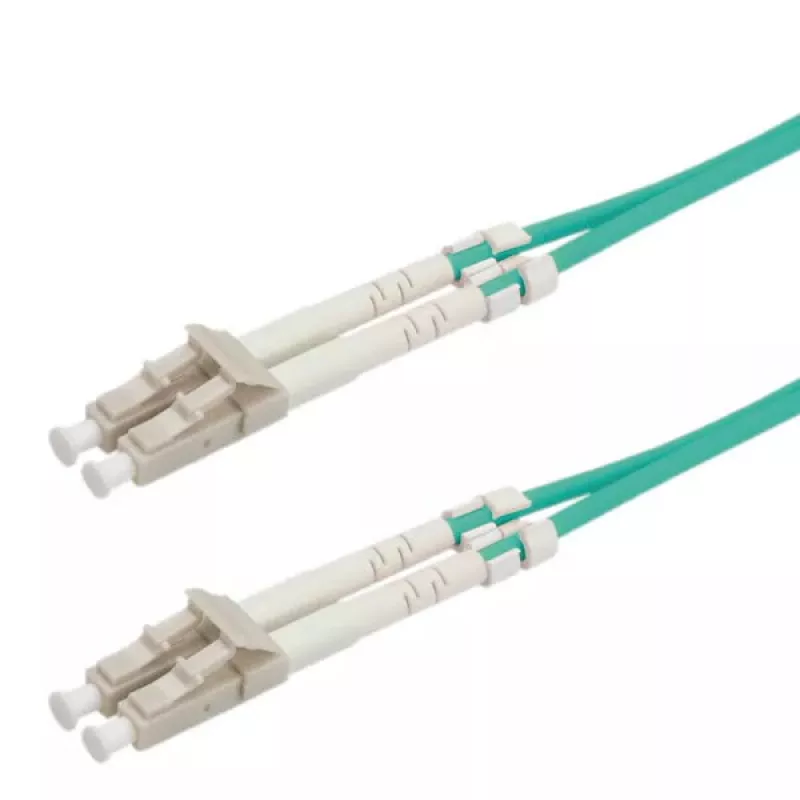

FO Jumper Cable ROLINE 50/125µm OM3 LC/LC Low-Loss 1m is a 1 meter duplex fiber optic patch cable with OM3 multimode 50/125µm fiber and LC connectors on both ends. The cable is assembled to ROLINE quality standards and designed for high bandwidth applications with low insertion loss, making it suitable for networking installations and data center links where reliable high-speed transmission is required.

Advantages

The use of OM3 multimode fiber and low-loss LC connectors results in very low insertion loss and reduced reflection compared with standard connectors. The cable assembly delivers typical insertion loss values significantly lower than standard LC connectors (typical 0.15 dB versus 0.5 dB for standard LC), ensuring better signal integrity over short to medium distances. The product is manufactured and assembled to ROLINE quality specifications and comes in a standardized turquoise color for OM3 identification.

Suitable for

• Data center uplinks and horizontal cabling
• Network switches, patch panels and transceiver connections
• High-bandwidth multimode fiber links (short to medium range)

Key specifications

• Fiber type: Multimode 50/125 µm, OM3
• Connector type: LC to LC (duplex)
• Connector loss (typical): low-loss LC ≈ 0.15 dB
• Standard LC typical loss for comparison: ≈ 0.5 dB
• Length: 1 m
• Color: Turquoise (OM3 identification)
• Brand / MPN / EAN: ROLINE / 21.15.8821 / 7611990119974

How to use

Connect each LC connector to the corresponding LC ports on devices such as switches, transceivers or patch panels, ensuring proper orientation and gentle insertion to avoid damage to the ferrules. Use the duplex clip to maintain correct polarity where required. Route and secure the cable to avoid tight bends; observe the manufacturer’s minimum bend radius for multimode fiber to preserve performance.

Recommendations

For best performance, use this OM3 LC/LC low-loss jumper in short- to medium-range multimode links within data centers or network rooms, pair it with compatible OM3 components and handle connectors with dust caps until installation to minimise contamination and insertion loss.
