Cable de fibra óptica BlueOptics EFE080-0010M-R-BO LC G.657.A1 10 m amarillo

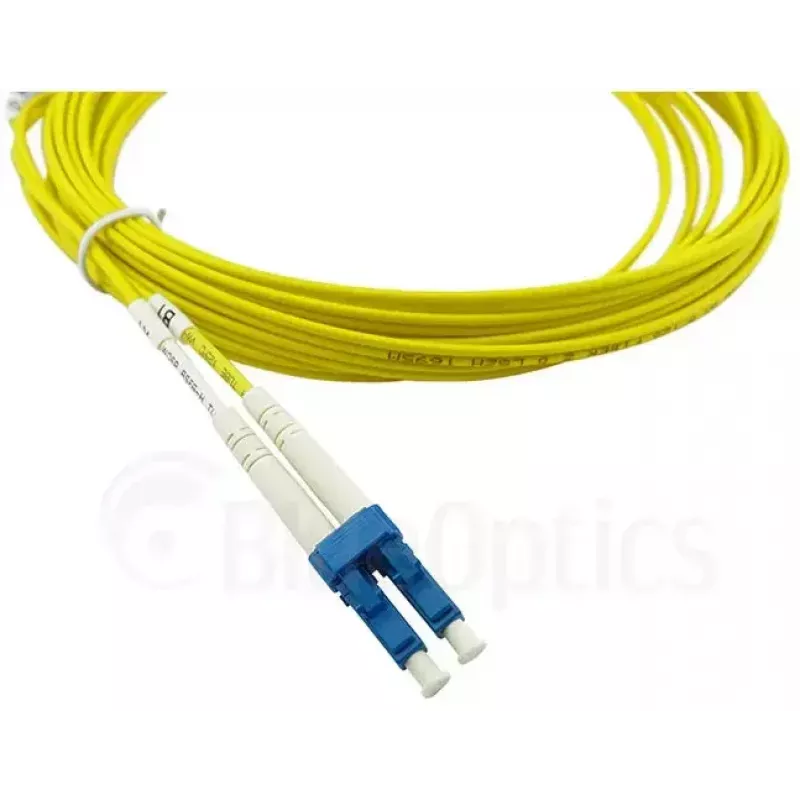

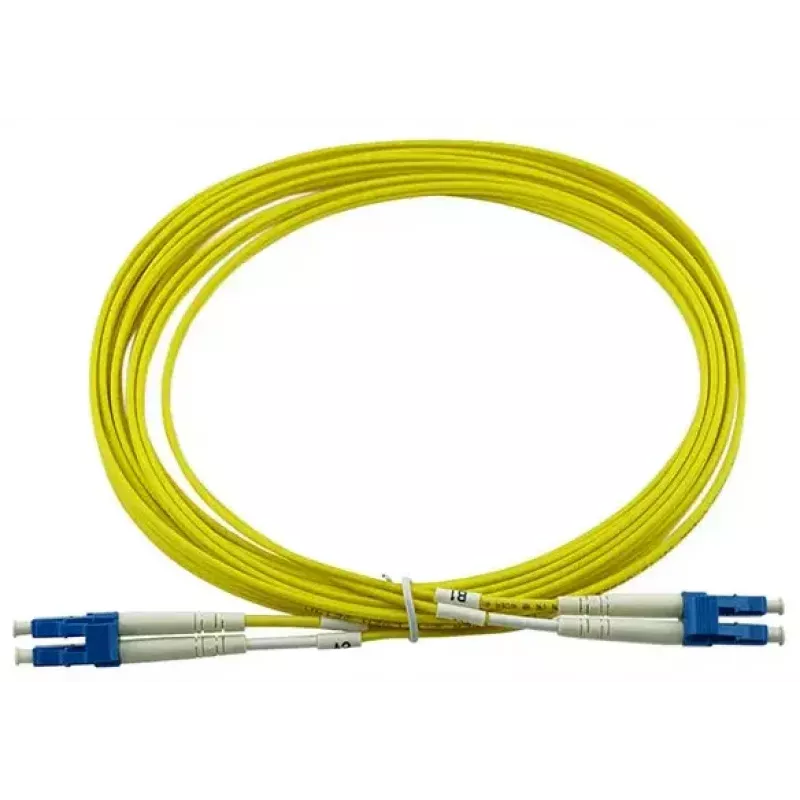

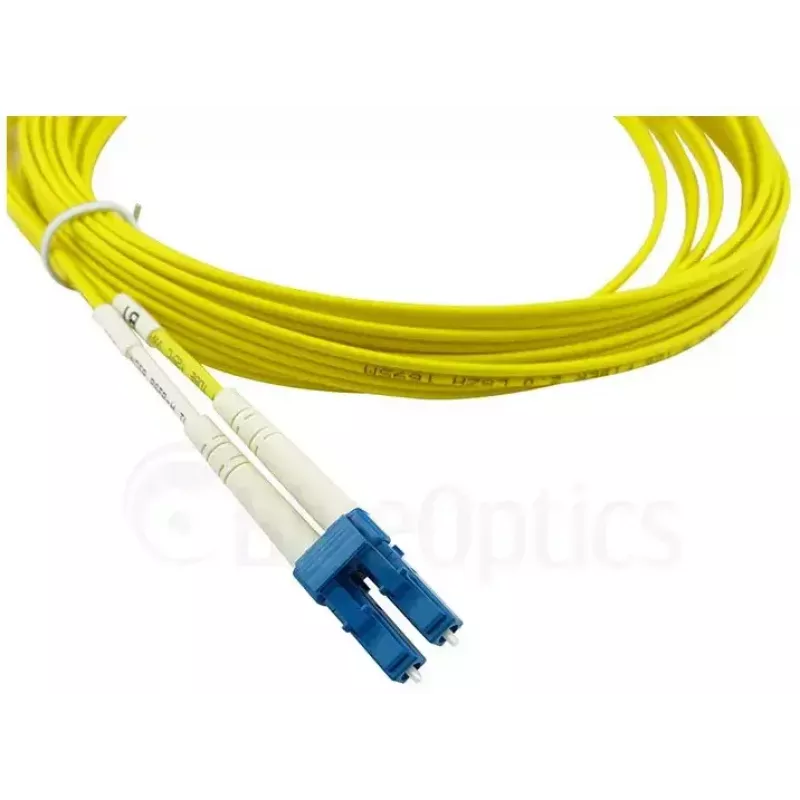

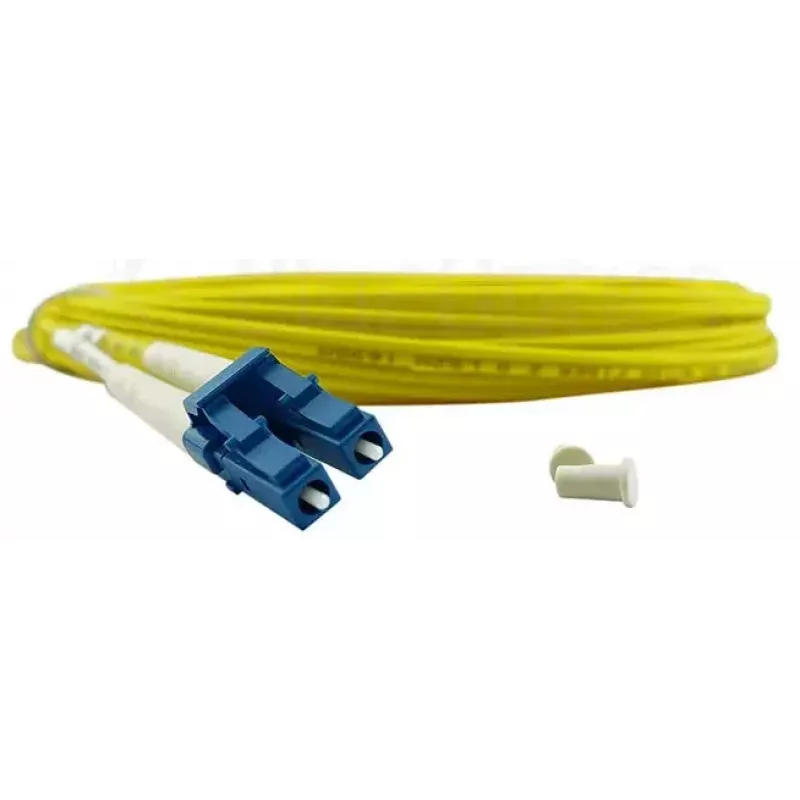

The BlueOptics EFE080-0010M-R-BO LC G.657.A1 10 m Yellow is a 10-metre single-mode fibre optic patch cable with LC connectors on both ends and G.657.A1 fibre (9 µm core). Designed for full-duplex transmission, this cable supports high-speed optical links and is suitable for connecting patch panels, optical transceivers and other fibre ports. The yellow outer jacket provides clear visual identification for single-mode lines.

Advantages

The cable uses single-mode G.657.A1 fibre for low attenuation and good bend performance in confined routing environments. Both ends are fitted with precision LC connectors and a ceramic ferrule to ensure stable mating and low insertion loss. The LSZH (flame-retardant, low-smoke, zero-halogen) jacket reduces hazardous emissions in case of fire and is appropriate for indoor installations with safety requirements. Each cable is factory-tested for input loss and return loss and is delivered with a measurement protocol for quality verification.

Suitable for

Key specifications

How to use

Route the BlueOptics LC–LC patch cable between the two intended ports without sharp bends; maintain the manufacturer’s minimum bend radius for G.657.A1 fibre to preserve performance. Remove dust caps from LC connectors prior to insertion and use appropriate dust-cleaning tools if necessary. Insert the LC connectors into the corresponding LC ports until they click to ensure secure mating. For optimal performance, avoid excessive tension on the cable and secure it with suitable cable management accessories in racks and panels.

Recommendations

Store and handle the cable in a clean environment; use connector dust caps when the cable is not connected. Refer to the provided measurement protocol to verify insertion loss and return loss values after installation. For permanent installations, plan routing to avoid tight bends and mechanical stress, and consider length variants if shorter or longer runs are required.
