Cable de fibra óptica EFB Elektronik DJP-LCLCOM3-UNI-20 20 m

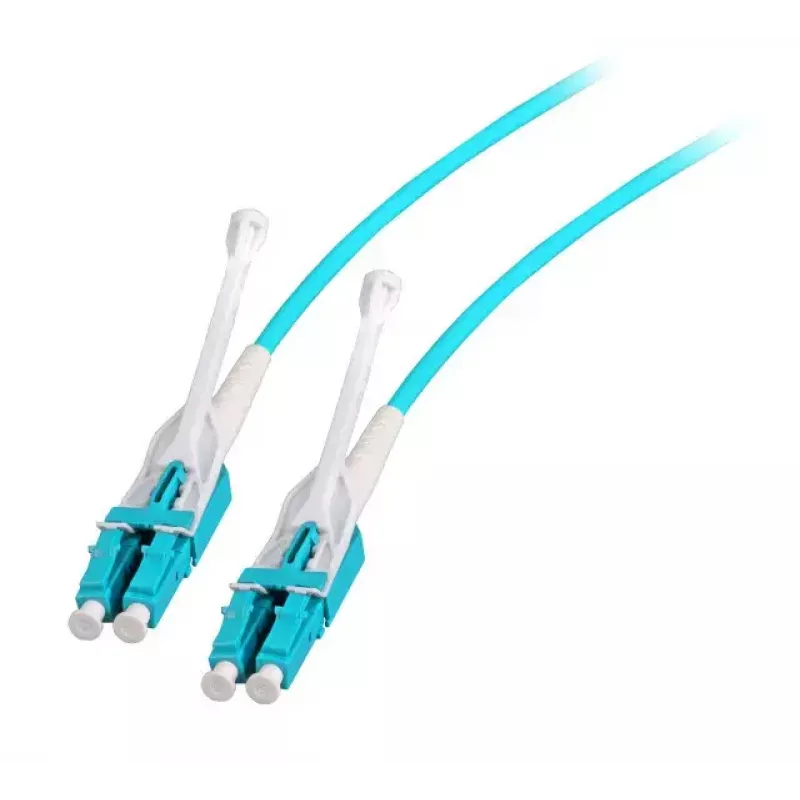

The EFB Elektronik DJP-LCLCOM3-UNI-20 is a 20 m OM3 fibre optic cable with LC uniboot duplex connectors on both ends. It has a 50 µm core diameter and an aqua jacket, designed for high-speed data transmission and compact patchpanel installations. The LC HD uniboot jumper features a long unlock latch for easier unlocking in HD patchpanels and allows quick polarity or coding changes to meet application requirements.

Advantages

The uniboot LC design reduces cable bulk by housing both fibers in a single connector body while preserving full duplex functionality. The long unlock latch simplifies connector release in high-density (HD) patchpanels. Available in OM3, OM4 and G.657.A1 categories, the jumper supports standard multimode performance and flexible deployment options.

Suitable for

• Data centre patching and cross-connects
• High-density rack and panel installations
• Short- to medium-reach multimode network links
• Structured cabling in enterprise and telecom environments

Key specifications

• Length: 20 m
• Connector type: LC uniboot duplex — both ends
• Fiber type: OM3 multimode, 50 µm core
• Color: aqua
• MPN: DJP-LCLCOM3-UNI-20
• EAN: 4049759236205

How to use

Route the cable from device to device or between patchpanel ports, taking care to maintain minimum bend radius for multimode fibre. Insert the LC uniboot connectors into the corresponding LC ports until the latch clicks; use the long unlock latch to release connectors in tight or high-density patchpanels. Change connector polarity or coding by reorienting the duplex tail as required for your link configuration.

Recommendations

Store and install the cable following standard fibre-handling practices: avoid excessive bending, protect connector endfaces from dust with dust caps until installation, and perform end-to-end tests after installation to verify link performance.
