Cable de instalación de red DSIT DANICOM CAT6A S/FTP 100m LSZH Fca a granel

Network installers running high-speed backbone links in office buildings, data centres, and industrial facilities need a cable that delivers 10 Gigabit performance without compromising on safety. The DSIT DANICOM CAT6A S/FTP cable answers that call: a 100-metre reel of screened, foiled twisted-pair copper, jacketed in low-smoke zero-halogen material with an Fca fire rating. Pull it through risers, plenums, and cable trays, and terminate it into patch panels, keystone jacks, or RJ45 connectors for a permanent, reliable infrastructure.

Key specifications

• Cable type: Bulk network installation cable
• Category: CAT6A
• Shielding: S/FTP (screened/foiled twisted pair)
• Jacket material: LSZH (low smoke zero halogen)
• CPR fire classification: Fca
• Length: 100 m
• Max data transfer rate: 10 Gbps
• Max bandwidth: 500 MHz
• Conductor: Bare copper, solid
• Pairs: 4 twisted pairs
• Impedance: 100 Ohm
• Application: Indoor
• Connectors: None (bulk cable)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

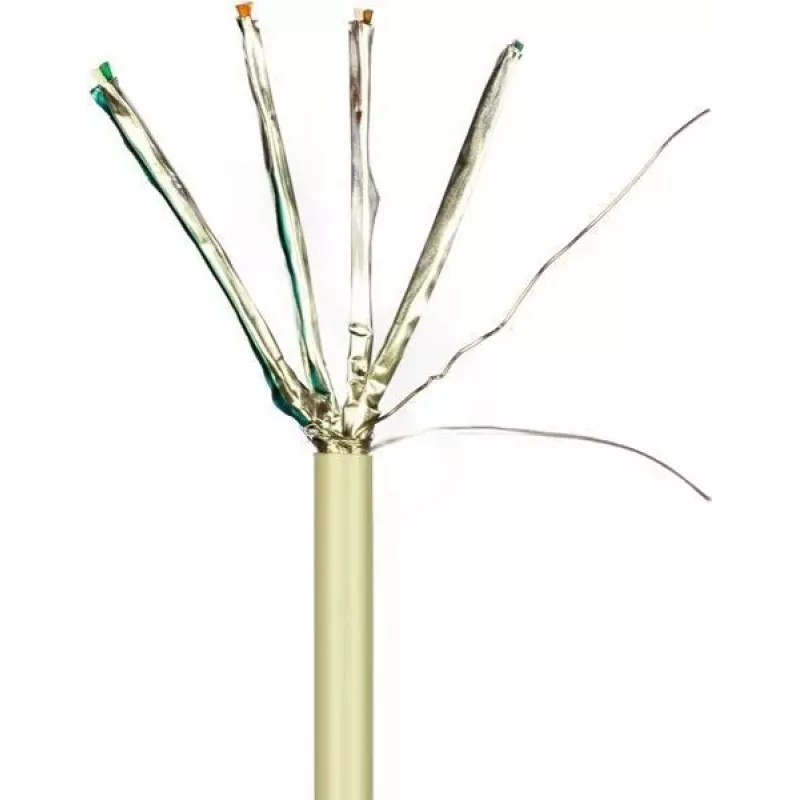

CAT6A S/FTP construction pairs an overall braided screen with individual foil on each pair, virtually eliminating alien crosstalk and EMI. That means you can bundle dozens of cables together without signal degradation, and run 10GBASE-T over the full 100-metre channel. The LSZH jacket emits very little smoke and no corrosive halogen gases in a fire, helping protect people and equipment. With an Fca CPR rating, it meets European safety requirements for fixed installations in many building types.

Ideal use cases

• Structured cabling in offices, schools, and hospitals
• Data centre backbone and server-to-switch links
• High-density patch panel terminations
• PoE++ (Power over Ethernet) applications up to 100 W
• Industrial Ethernet where EMI is a concern

Good to know

The cable is supplied on a 100-metre reel, ready to be pulled and cut to length. It is not UV or oil resistant, so keep it indoors. No connectors are included—terminate with your preferred RJ45 plugs or jacks. For best performance, maintain pair twists as close to the termination point as possible and use CAT6A-rated components throughout the channel.
