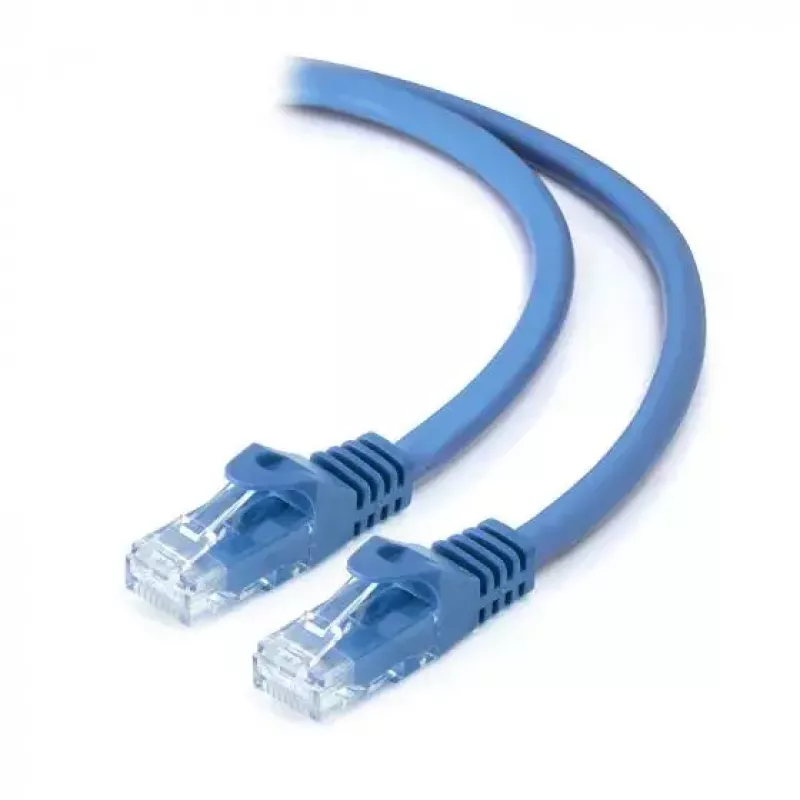

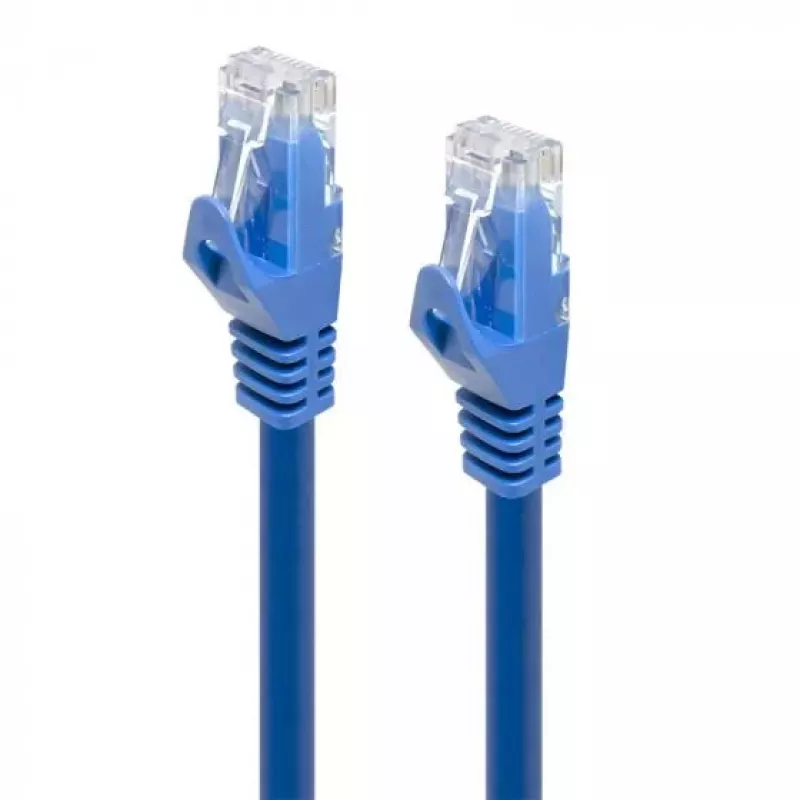

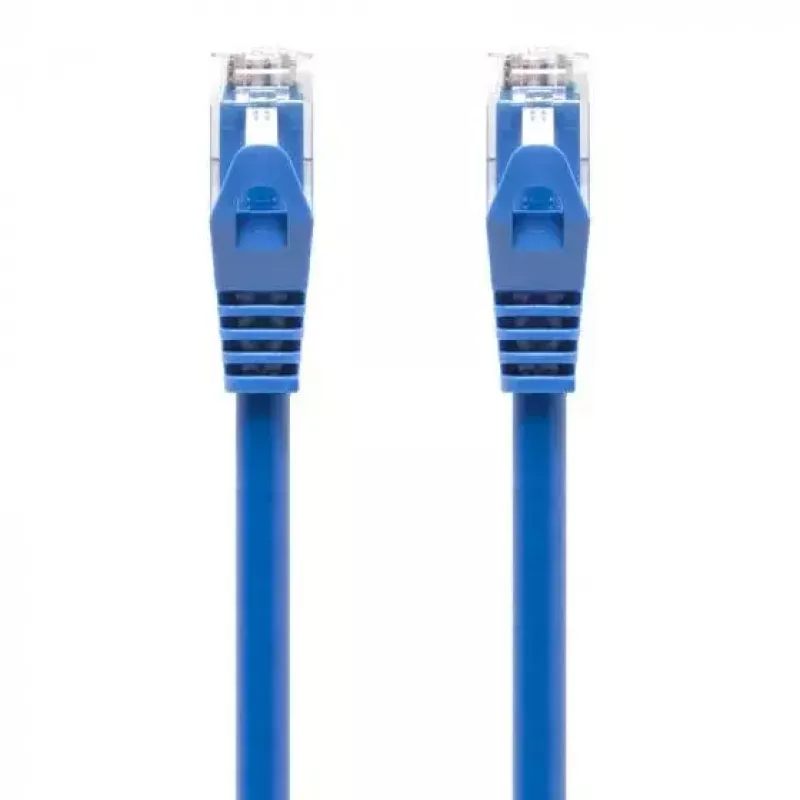

Cable de red ALOGIC azul CAT6 LSZH 2m

The ALOGIC Blue CAT6 LSZH 2m network cable provides a reliable wired connection for Ethernet devices. Wired as 568B and compliant with EU specifications, this CAT6 cable supports multi-gigabit network protocols and is designed to transfer voice, data, video and communications signals with minimal loss. The cable uses four pairs of 24 AWG insulated copper conductors separated by an internal cross to maintain consistent pair spacing, improving crosstalk performance and reducing insertion and return losses. Gold-plated RJ-45 connectors and a snagless boot protect the connector and ensure clear signal transmission. The LSZH outer jacket reduces harmful smoke and halogen emissions in the event of a fire, making it suitable for use in homes and offices.

Advantages

This CAT6 cable reduces impedance and return loss to help improve effective network speeds and supports up to 1000 Mbit/s over appropriate infrastructure. The 24 AWG twisted pairs with a separator maintain signal integrity and lower crosstalk. Gold-plated RJ-45 plugs provide corrosion resistance and reliable contact, while the snagless boot and robust jacket protect the cable during installation and everyday use. The LSZH jacket enhances safety by emitting less toxic smoke if exposed to fire.

Suitable for

• Connecting PCs, routers, switches and networked devices
• Home and office Ethernet installations
• Data, voice and video transmission over local area networks

Key specifications

• Brand: ALOGIC
• Model/MPN: C6-02B-BLUE
• Type: CAT6 Ethernet patch cable, LSZH jacket
• Length: 2 m
• Wiring: 568B
• Conductor: 4 pairs, 24 AWG insulated copper
• Connector: RJ-45 with gold plating
• Rated throughput: up to 1000 Mbit/s (dependent on network conditions)

How to use

Plug one gold-plated RJ-45 connector into the Ethernet port of your device (PC, switch, router) and the other connector into the corresponding network port. Ensure connectors click into place and route the cable to avoid tight bends or tension. For best performance, use with compatible CAT6 infrastructure and network equipment rated for the desired speeds.

Recommendations

For reliable performance, avoid sharp bends and kinks, keep the cable away from large sources of electromagnetic interference, and replace the cable if the jacket or connectors become damaged. Use the cable indoors or in environments where LSZH properties are required or recommended.
