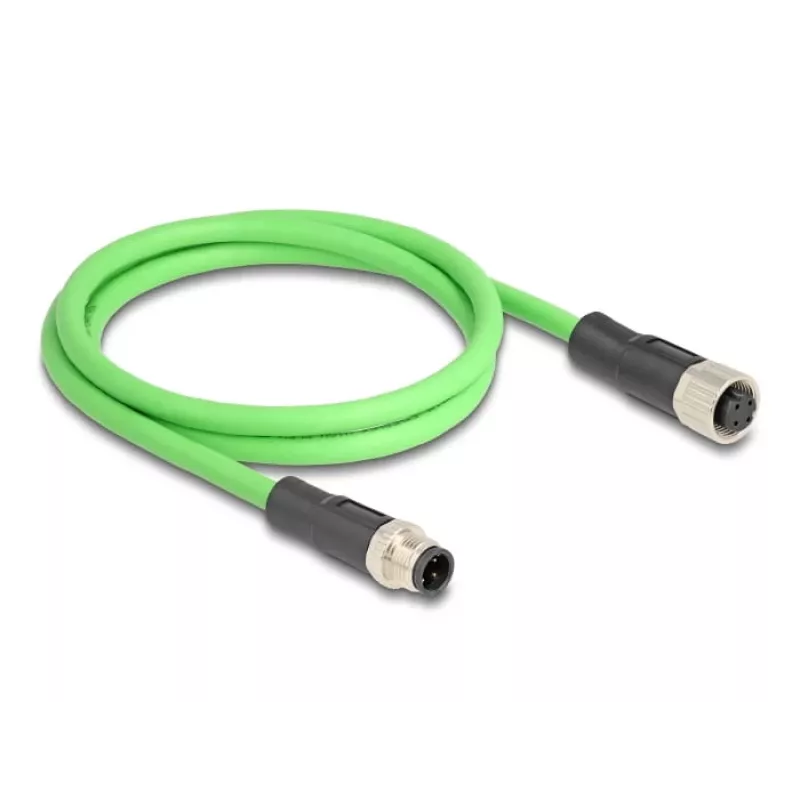

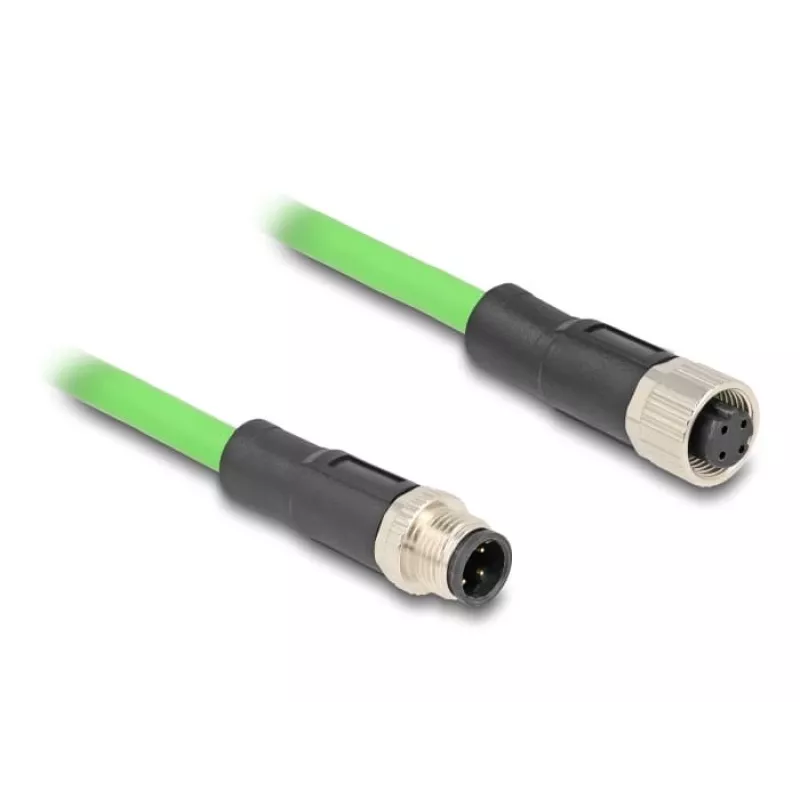

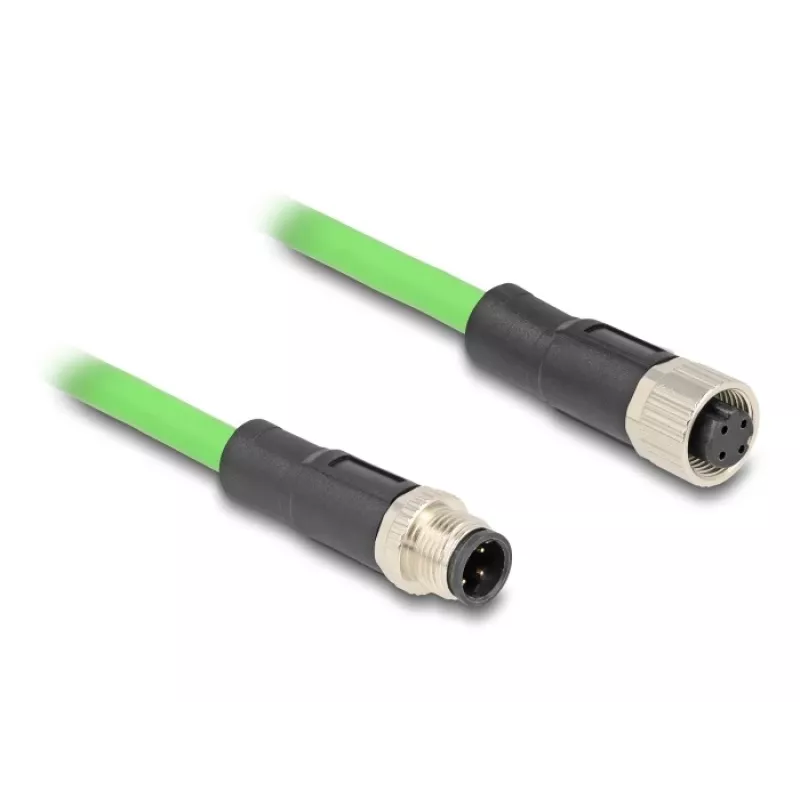

Cable de red DeLOCK M12 D-codificado 4 polos macho a hembra PUR (TPU) 1 m

The DeLOCK M12 Cable D-coded is a 1 m industrial Ethernet cable with a 4-pin M12 male to female connection designed for reliable data transmission in machine control and automation environments. The cable jacket is made of polyurethane (PUR/TPU) and the product meets UL 94 certification standards, providing mechanical robustness and resistance to oils and UV exposure.

Advantages

The PUR (TPU) cable sheath offers oil and UV resistance and the cable is processed for high durability. It supports up to 10 million bending cycles, making it suitable for continuous motion applications and harsh industrial conditions. The D-coded M12 4-pin connector ensures stable Ethernet connections in industrial networks.

Suitable for

• Machine control systems
• Factory automation and robotics
• Connections within drag chains and moving assemblies
• Industrial Ethernet installations requiring M12 D-coded interfaces

Key specifications

• Brand: DELOCK
• Model / MPN: 80406
• EAN: 4043619804061

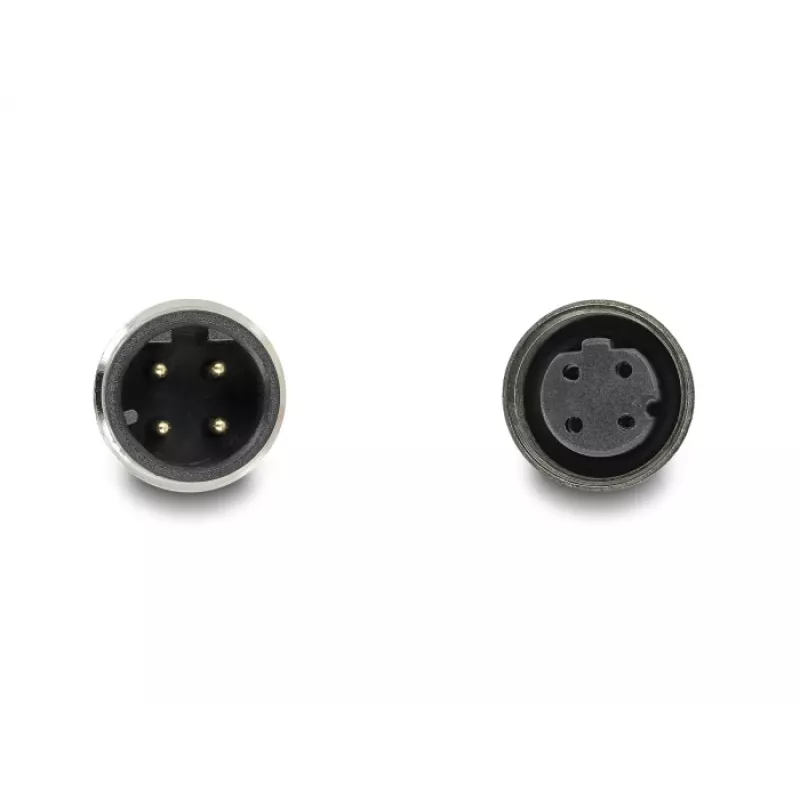

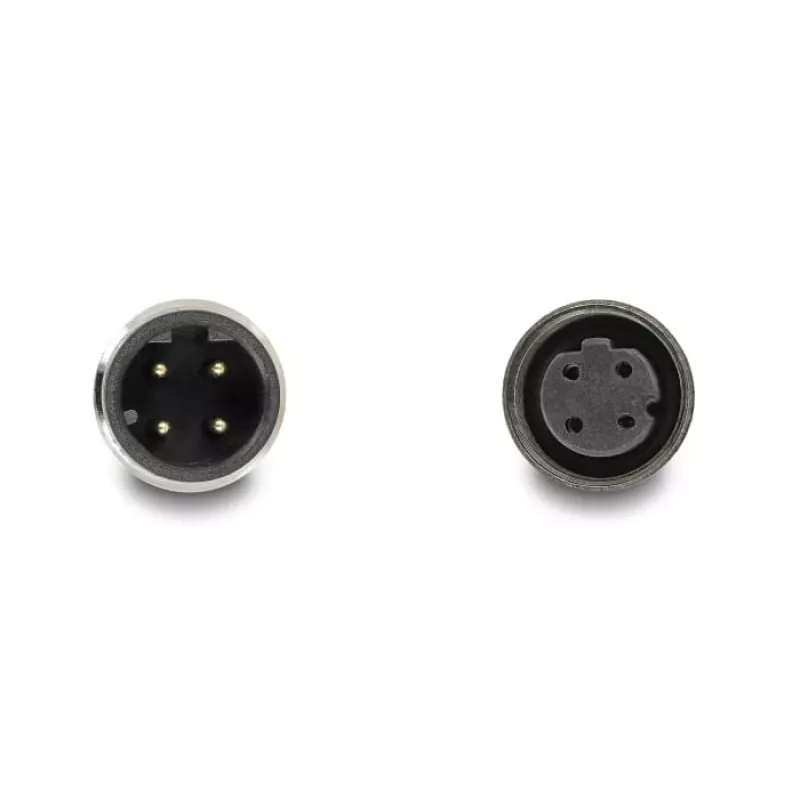

• Connector: M12 D-coded 4-pin male to female
• Cable length: 1 m
• Jacket material: PUR (TPU)
• Drag chain suitability: up to 10 million bending cycles
• Certification: UL 94

How to use

Connect the M12 male end to the corresponding D-coded M12 female port on one device and the M12 female end to the mating male connector on the other device. Ensure connectors are properly aligned before tightening, and avoid excessive torsion or sharp bends beyond the specified bending radius. Use appropriate strain relief and routing to protect the cable in moving installations.

Recommendations

For prolonged service life, route the cable inside designated drag chains or protective conduits when used in moving applications, avoid exposure to chemicals beyond the stated oil resistance, and perform periodic inspections for wear in harsh environments.
