Cable de red EFB Elektronik 99827.500

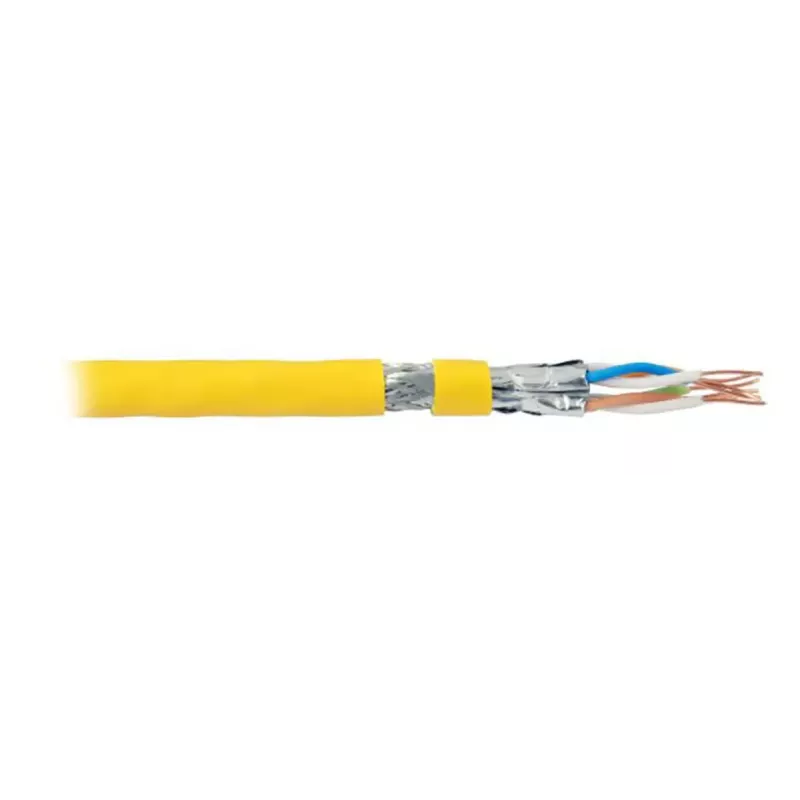

The EFB Elektronik 99827.500 is a Cat8.2 installation cable engineered for electrical transmission up to 2000 MHz, delivering transmission rates up to 40 GBit/s according to IEEE 802.3. The cable features S/FTP shielding and comes in a yellow jacket for visibility. It is suitable for primary (campus), secondary (riser) and tertiary (horizontal) structured cabling installations.

Advantages

This networking cable exceeds the electrical transmission requirements of Category 8 and lower, supporting high bandwidth up to 2000 MHz and data rates up to 40 GBit/s. The S/FTP shielding provides protection against electromagnetic interference, and the 500 m length supports extended runs in building and campus environments. The yellow sheath improves identification during installation and maintenance.

Suitable for

• Primary (campus) backbone cabling
• Secondary (riser) vertical cabling between floors
• Tertiary (horizontal) in-room and workstation connections
• High-speed data centers and server rooms requiring 40 GBit/s links

Key specifications

• Category: Cat8.2
• Model: EFB Elektronik 99827.500
• Shielding: S/FTP
• Frequency range: up to 2000 MHz
• Maximum data rate: up to 40 GBit/s (per IEEE 802.3)
• Length: 500 m
• Color: yellow
• Manufacturer brand: Draka
• MPN: 60030331
• EAN: 8717511628280

How to use

Install the Cat8.2 cable following standard structured cabling practices. Route the cable along approved pathways for primary, secondary or tertiary cabling, avoid sharp bends and excessive tension, and maintain separation from power lines where required. Terminate the cable with compatible Cat8 connectors or modules and test each run for continuity, shielding integrity and performance up to 2000 MHz to verify 40 GBit/s capability.

Recommendations

Use this S/FTP Cat8.2 cable for backbone and horizontal runs where 40 GBit/s performance and robust EMI protection are required. For best results, pair with certified Cat8 components and perform post-installation testing to ensure compliance with IEEE 802.3 link performance.
