helos Cat.6a Superflex Cat.7 Cable en bruto GHMT AWG 26/7 Cable de conexión 363677, 0,25 m, gris

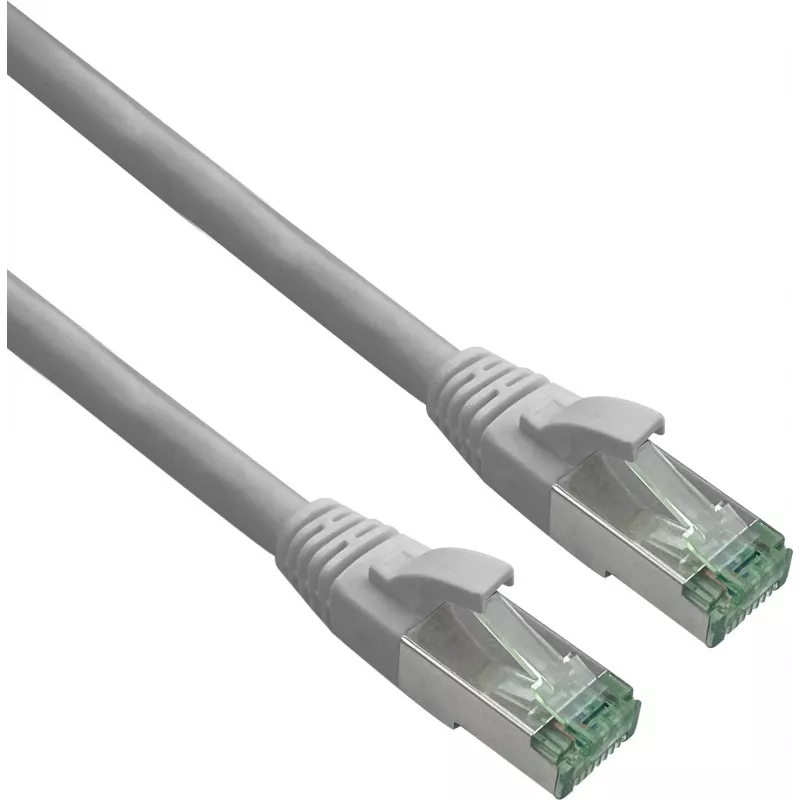

The helos Cat.6a Superflex Cat.7 raw cable patch cable (MPN 363677) is a grey network cable with a length of 0.25 m. It features a halogen-free LSZH and TPE jacket, copper conductors, and gold-plated RJ-45 contacts.

Key features

• Cat.7 raw cable, GRS-certified
• Halogen-free LSZH and TPE jacket
• Copper conductors, flexible
• Gold-plated RJ-45 contacts
• S/FTP (S-STP) shielding
• Supports 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Power over Ethernet (PoE), PoE+, PoE++ (4PPoE)
• Plug & Play

Specifications

• Brand: helos
• MPN: 363677
• Product colour: Grey
• Ethernet LAN: Yes
• Cable length: 0.25 m
• Cable standard: Cat7
• Cable shielding: S/FTP (S-STP)
• Connector 1: RJ-45
• Connector 2: RJ-45
• Connector 1 gender: Male
• Connector 2 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Contact plating: Gold
• Connector shielding material: Nickel
• Jacket material: Low smoke halogen-free (LSZH), Thermoplastic Elastomer (TPE)
• Cable shape: Round
• Conductor type: Flexible
• Conductor material: Copper
• Cable class: Ea
• Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• AWG cable size: 26/7
• Data transfer rate: 10000 Mbit/s
• Frequency: 600 MHz
• Bending radius (min.): 2.5 cm
• Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
• Operating temperature: -20 - 65 °C
• Storage temperature: -20 - 80 °C
• Sustainability certificates: Global Recycled Standard (GRS)
• Does not contain: Halogen
• Compliance certificates: REACH, RoHS, WEEE
• Outer diameter: 6 mm
• Quantity per pack: 1 piece(s)
