helos Cat.6a Superflex Cat.7 Cable en bruto GHMT AWG 26/7 Cable de conexión 363702, 0,15 m, amarillo

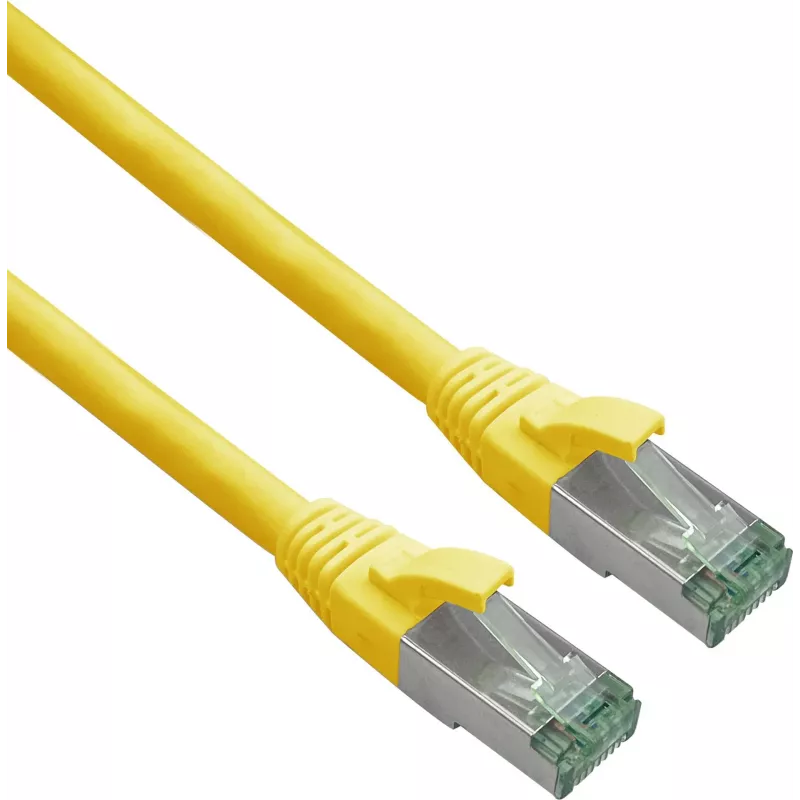

The helos Cat.6a Superflex Cat.7 Raw Cable GHMT AWG 26/7 Patch Cable 363702 is a yellow network cable with a length of 0.15 m. It features a halogen-free LSZH and TPE jacket, copper conductors, and gold-plated RJ45 contacts.

Key features

• Halogen-free LSZH and TPE jacket
• Copper conductors
• Gold-plated RJ45 contacts
• Nickel-shielded connectors
• Flexible round cable
• Power over Ethernet (PoE) support: PoE+, PoE++ (4PPoE), up to 90 W
• Plug & Play
• GRS-certified (Global Recycled Standard)

Specifications

• Brand: helos
• MPN: 363702
• Product colour: Yellow
• Ethernet LAN: Yes
• Cable length: 0.15 m
• Cable standard: Cat7
• Cable shielding: S/FTP (S-STP)
• Connector 1: RJ-45
• Connector 2: RJ-45
• Connector 1 gender: Male
• Connector 2 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Contact plating: Gold
• Connector shielding material: Nickel
• Jacket material: Low smoke halogen-free (LSZH), Thermoplastic Elastomer (TPE)
• Cable shape: Round
• Conductor type: Flexible
• Conductor material: Copper
• Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• AWG cable size: 26/7
• Data transfer rate: 10000 Mbit/s
• Frequency: 600 MHz
• Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
• Total Power over Ethernet (PoE) power: 90 W
• Operating temperature: -20 - 65 °C
• Storage temperature: -20 - 80 °C
• Contains no: Halogen
• Conformity certificates: REACH, RoHS, WEEE
• Outer diameter: 6 mm
• Quantity per pack: 1 piece(s)
