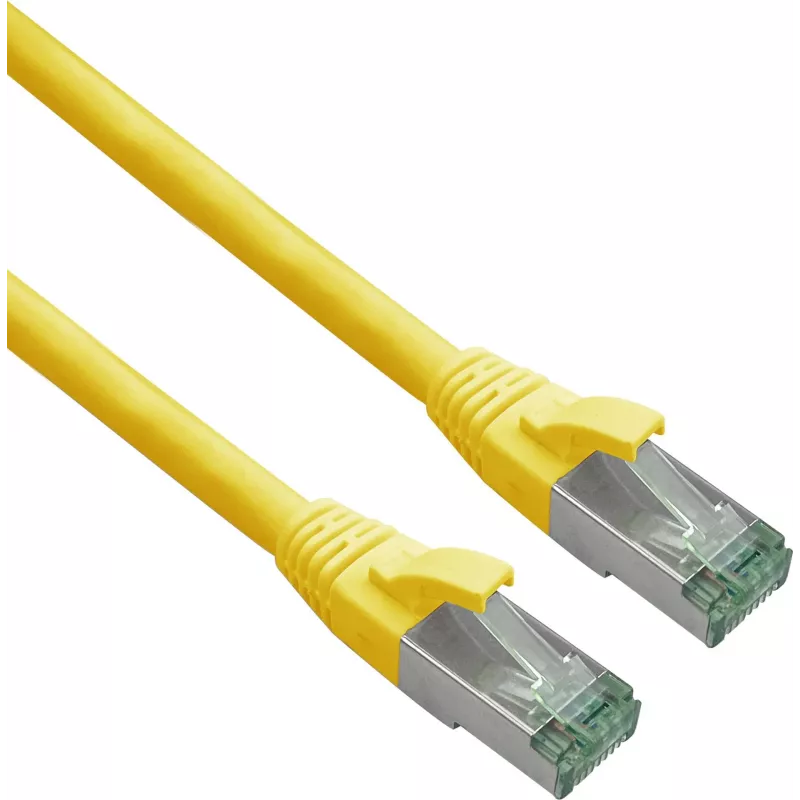

helos Cat.6a Superflex Cat.7 Cable en bruto GHMT AWG 26/7 Cable de conexión 363707, 2 m, amarillo

The helos Cat.6a Superflex Cat.7 raw cable patch cable (MPN 363707) is a 2 m yellow network cable with a halogen-free LSZH and TPE jacket. It supports 10 Gigabit Ethernet and frequencies up to 600 MHz, and is GRS-certified.

Key features

• Cat.7 raw cable with Cat.6a RJ45 connectors
• Halogen-free LSZH and TPE jacket
• GRS-certified (Global Recycled Standard)
• Supports 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Power over Ethernet (PoE) support: PoE+, PoE++ (4PPoE) up to 90 W
• Plug & Play

Specifications

• Brand: helos
• MPN: 363707
• Product colour: Yellow
• Ethernet LAN: Yes
• Cable length: 2 m
• Cable standard: Cat7
• Cable shielding: S/FTP (S-STP)
• Connector 1: RJ-45
• Connector 2: RJ-45
• Connector 1 gender: Male
• Connector 2 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Contact plating: Gold
• Connector shielding material: Nickel
• Jacket material: Low smoke halogen-free (LSZH), Thermoplastic Elastomer (TPE)
• Cable shape: Round
• Conductor type: Flexible
• Conductor material: Copper
• Cable class: Ea
• AWG cable size: 26/7
• Data transfer rate: 10000 Mbit/s
• Frequency: 600 MHz
• Bending radius (min.): 2.4 cm
• Operating temperature: -20 - 65 °C
• Storage temperature: -20 - 80 °C
• Contains no: Halogen
• Conformity certificates: REACH, RoHS, WEEE
• Outer diameter: 6 mm
• Quantity per pack: 1 piece
