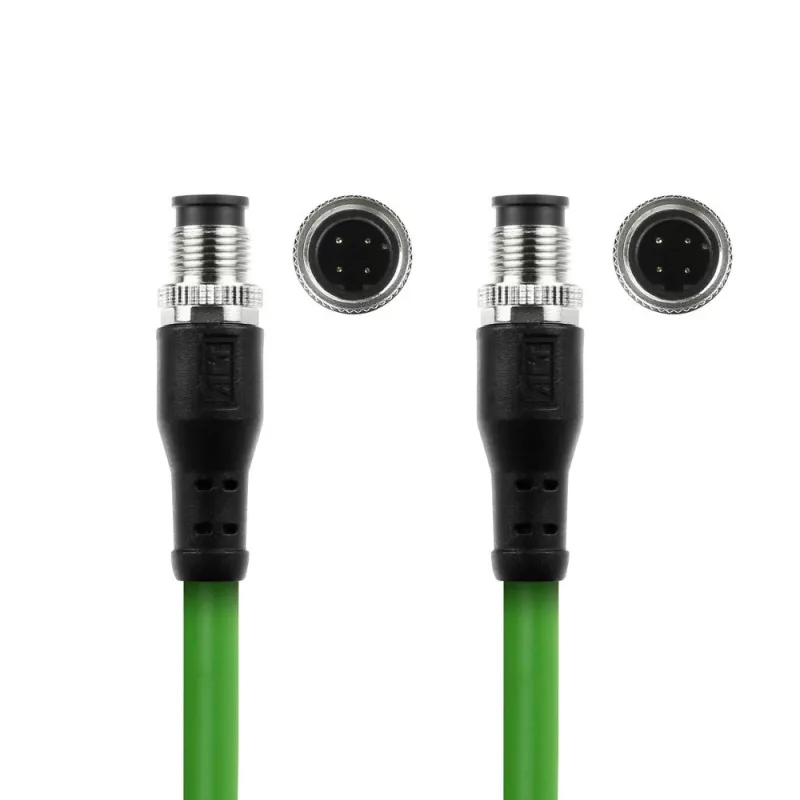

Cable de sensor ACT Industrial 1,50 m M12D 4 polos conector macho a conector macho M12D 4 polos, cable TPE Superflex Xtreme, apantallado

The ACT Industrial sensor cables (actor cables) are provided with a TPE (Thermo Plastic Elastomer) sheath and are therefore highly resistant to mechanical loads such as movements in a chain. The connectors are overmoulded TPE and degree of protection is IP67.

Superflex Xtreme cable, each individual core consists of 19 strands of copper that together form a diameter of AWG22. This makes the cable more flexible than, for example, a standard AWG24/7 patch cable.

Stranded conductors are build up of uninsulated thin strands of wire twisted together.
How greater the number of strands in a stranded conductor, the greater the flexibility of the wire.

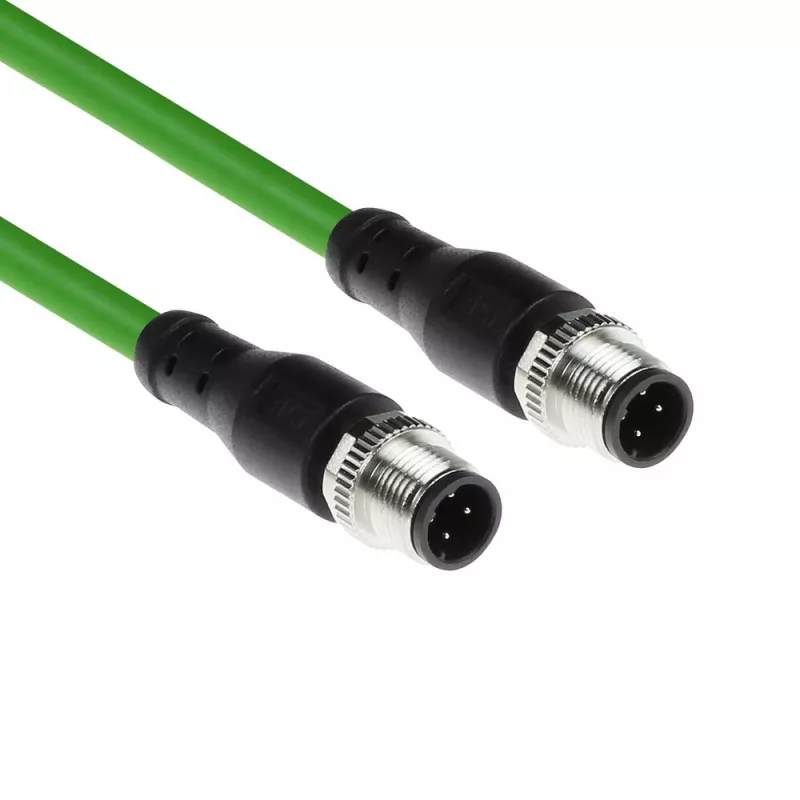

ACT Industrial 1.50 meters Sensor cable M12D 4-pin male to M12D 4-pin male, Superflex Xtreme TPE cable, shielded. Cable length: 1.5 m, Connector 1: M12, Connector 2: M12
