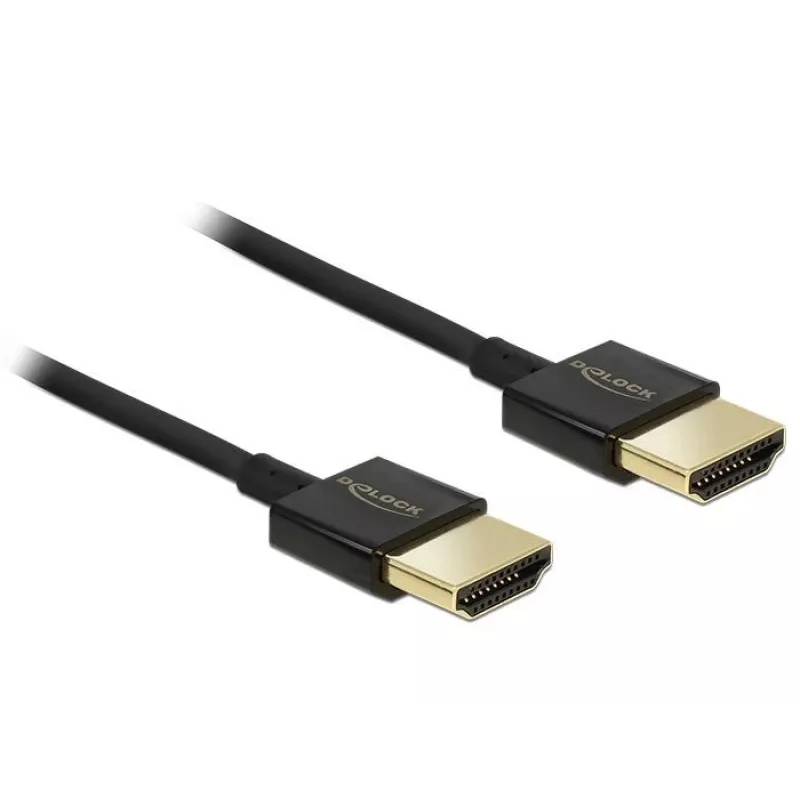

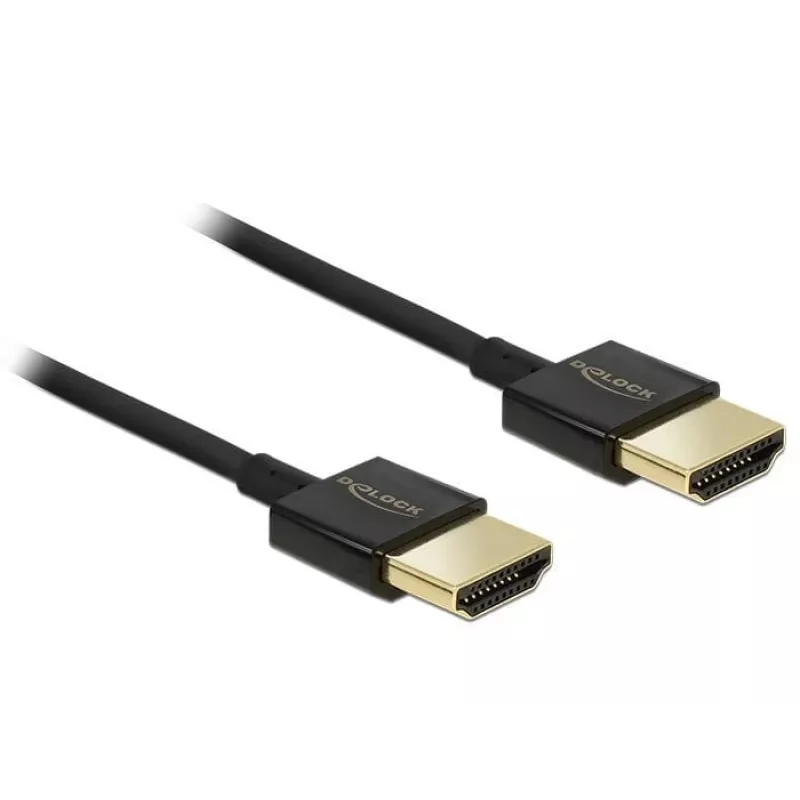

Cable HDMI DeLOCK 84775 4,5 m

The DeLOCK HDMI Cable 84775 (4.5 m) is a premium High Speed HDMI with Ethernet cable designed for reliable transmission of high-definition video, multi-channel audio and network data. It features HDMI Type A connectors with gold-plated contacts, a slim diameter and short connector housings for space-saving installation. The cable is triple shielded and supports a maximum bandwidth of 18 Gbit/s, allowing resolutions up to 3840 x 2160 (4K) at 60 Hz, 4K 3D at up to 24 Hz and widescreen 21:9 content.

Advantages

The cable combines a narrow profile and short HDMI Type A connectors for easier routing in tight spaces while maintaining signal integrity through triple shielding and gold-plated contacts. With support for 18 Gbit/s bandwidth, it delivers 4K@60Hz video, 4K 3D@24Hz, dual video channels for Picture-by-Picture usage and up to four simultaneous audio channels. Ethernet over HDMI is available for network-enabled devices, and audio sampling rates are supported up to 1536 kHz for improved audio fidelity.

Suitable for

• Connecting 4K TVs and monitors to set-top boxes, Blu-ray players and media players
• Home theatre systems requiring multi-channel audio transmission
• Workstations and laptops to external displays supporting 4K@60Hz
• Installations with limited space behind displays due to slim cable and short connectors

Key specifications

• Length: 4.5 m
• Connectors: HDMI Type A (Standard) to HDMI Type A (Standard), gold-plated contacts
• Maximum resolution: 3840 x 2160 (4K) at 60 Hz
• Bandwidth: up to 18 Gbit/s
• Shielding: triple shielded
• Colour: Black
• Supports: Ethernet over HDMI, dual video channels, up to 4 audio channels, audio sampling up to 1536 kHz

How to use

Connect one HDMI Type A connector to the HDMI output of your source device (for example a Blu-ray player, set-top box, PC or laptop) and the other HDMI Type A connector to the HDMI input of your display or AV receiver. Ensure connectors are fully inserted and secure. Select the correct HDMI input on your display and, if required, configure display resolution and audio settings in the source device to match the connected display capabilities.

Recommendations

For optimal performance, avoid tight bends and kinks; maintain a gentle bend radius. Use the cable for distances up to 4.5 m as specified and keep connectors and ports free of dust. If using Ethernet over HDMI, confirm both connected devices support HDMI Ethernet Channel.
