Cable HDMI DeLOCK 85138 3 m conector macho Type-A a conector macho blanco

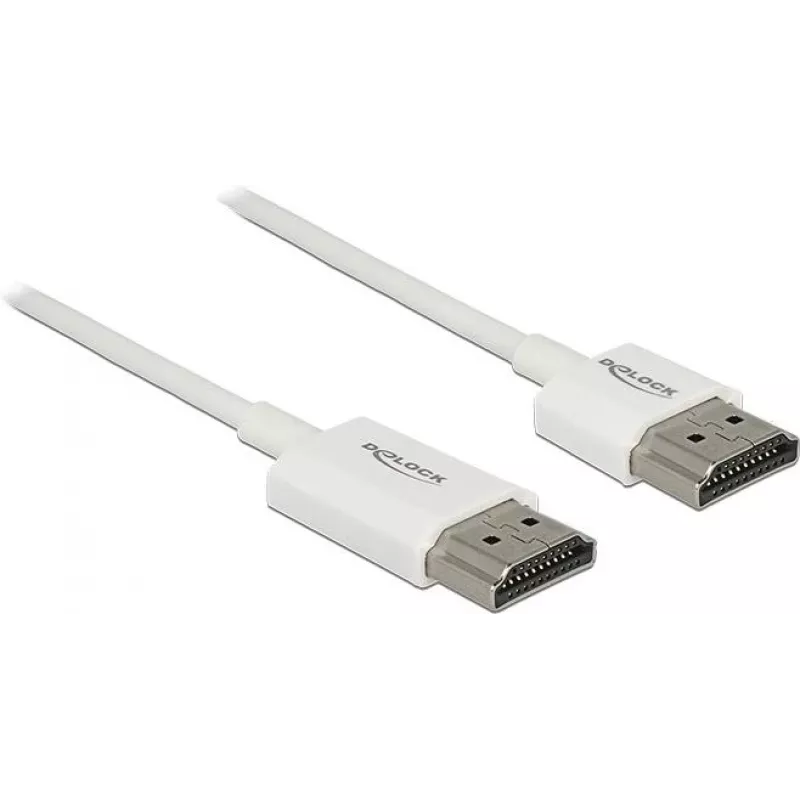

The DeLOCK 85138 HDMI cable is a 3 m, slim-diameter HDMI Type A male-to-male cable in white. It features gold-plated contacts and triple shielding to maintain signal integrity for audio, video and Ethernet connections. The cable supports a maximum bandwidth of 18 Gbit/s and resolutions up to 3840 x 2160 (4K) at 60 Hz, 3D in 4K at up to 24 Hz, and 21:9 cinema aspect ratio content. It also supports Audio Return Channel (ARC) and enhanced audio sampling rates up to 1536 kHz.

Advantages

The slim cable diameter and short connectors reduce strain and improve routing behind displays and in tight spaces. Triple shielding and gold-plated contacts help ensure reliable signal transmission for high-definition video, multi-channel audio and Ethernet. Support for 18 Gbit/s bandwidth enables 4K at 60 Hz and 3D content in 4K, while ARC and high sampling rates improve audio quality.

Suitable for

• Connecting TVs and projectors to set-top boxes or media players
• Linking gaming consoles to displays supporting 4K at 60 Hz
• Connecting AV receivers or soundbars using Audio Return Channel (ARC)
• Use behind wall-mounted TVs or in tight AV installations thanks to slim diameter and short connectors

Key specifications

• Cable length: 3 m
• Connectors: HDMI Type A male to HDMI Type A male
• Maximum bandwidth: 18 Gbit/s
• Maximum resolution: up to 3840 x 2160 (4K) at 60 Hz
• 3D support: 4K at up to 24 Hz
• Audio: ARC support, up to 1536 kHz sampling rate, up to 4 simultaneous audio channels
• Additional features: triple shielded, gold-plated contacts, white colour

How to use

Connect one HDMI Type A male connector to the HDMI output of your source device (for example a Blu-ray player, gaming console or set-top box) and the other HDMI Type A male connector to the HDMI input on your display, projector or AV receiver. Ensure connectors are fully inserted. If using ARC, connect the cable to the HDMI ARC-labelled port on both TV and audio device and enable ARC in device settings if required. Handle the cable gently and avoid sharp bends to maintain signal quality.

Recommendations

For best performance with 4K at 60 Hz and high-quality audio, use the cable for runs within the specified 3 m length and avoid routing near strong sources of electromagnetic interference. If wall-mounting a TV, route the slim cable through the mounting area to minimise visible cable and connector strain.
