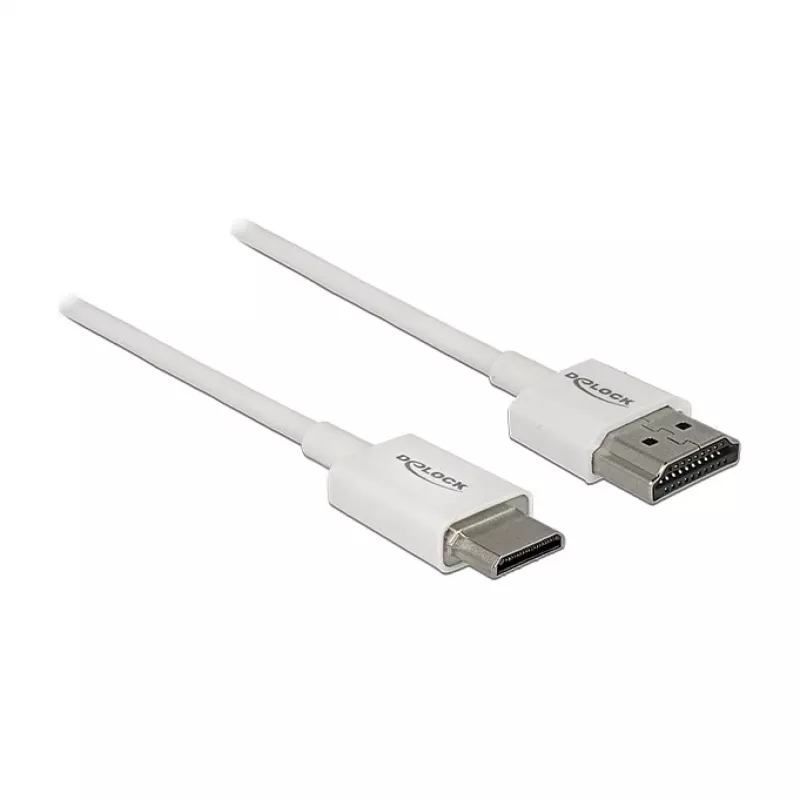

Cable HDMI DeLOCK 85142 1 m HDMI Type-A Type-C blanco

The DeLOCK 85142 is a 1 m High Speed HDMI with Ethernet cable featuring an HDMI Type C (Mini) connector for cameras or tablets and an HDMI Type A (Standard) connector for monitors or TVs. The cable has a slim diameter, short connectors and gold-plated contacts. It supports a maximum bandwidth of 18 Gbit/s, a resolution up to 3840 x 2160 (4K) at 60 Hz, 4K 3D at up to 24 Hz, 21:9 cinema formats, Audio Return Channel (ARC) and enhanced audio sampling rates up to 1536 kHz.

Advantages

The cable is triple-shielded to reduce interference and ensure stable data and audio/video transmission. Its slim design and short connector housings make it suitable for tight spaces and compact devices. Gold-plated contacts improve signal reliability and contact durability. Support for Ethernet over HDMI and ARC expands connectivity options between source devices and displays.

Suitable for

• Connecting cameras or tablets with Mini HDMI (Type C) to TVs or monitors with HDMI-A (Type A)
• Transmitting 4K video at up to 60 Hz and 4K 3D at up to 24 Hz
• Use with displays and AV equipment that require ARC or Ethernet over HDMI
• Setups that need two video channels or up to four audio channels transmitted simultaneously

Key specifications

• Cable length: 1 m
• Connector 1: HDMI Type A (Standard)
• Connector 2: HDMI Type C (Mini)
• Maximum bandwidth: 18 Gbit/s
• Maximum resolution: 3840 x 2160 (4K) at 60 Hz
• Supports 4K 3D (up to 24 Hz) and 21:9 aspect ratio
• Audio sampling rate: up to 1536 kHz
• Features: Triple shielding, gold-plated contacts, Ethernet over HDMI, ARC
• Colour: White

How to use

Connect the HDMI Type C (Mini) end to the compatible camera, tablet or other source device and insert the HDMI Type A (Standard) end into the HDMI input of the monitor or TV. Ensure both devices are powered on and the display input is set to the corresponding HDMI port. For ARC functionality, connect to the HDMI port on the TV labelled ARC and enable ARC in device settings if required. For Ethernet over HDMI, ensure connected devices support the feature.

Recommendations

To maintain signal integrity, avoid sharp bends and place the cable away from strong EMI sources. Use short routes when connecting compact devices to reduce strain on the short connectors. Verify device compatibility for ARC and Ethernet features before use.
