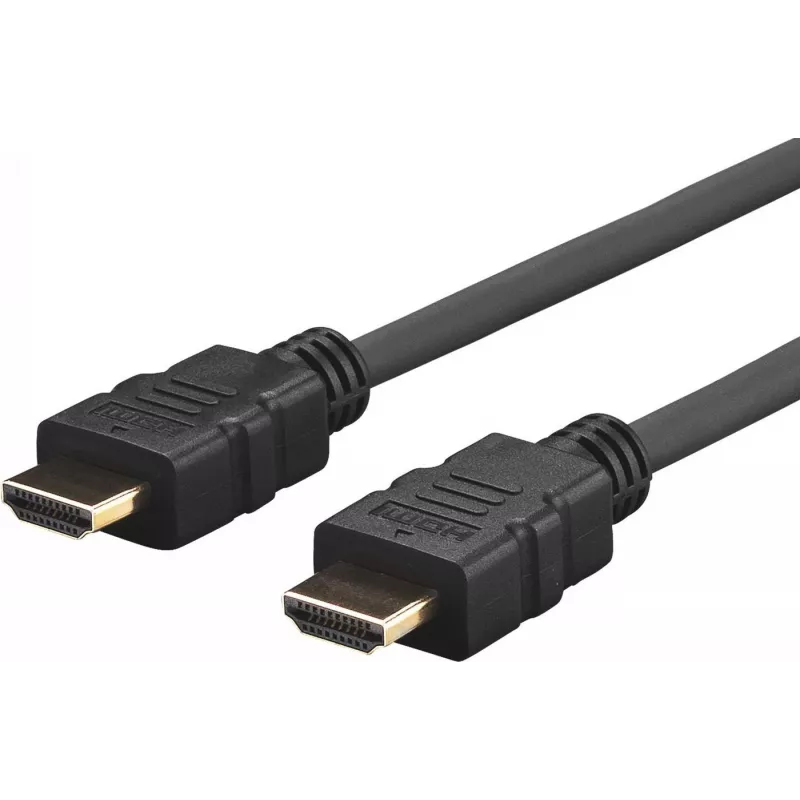

Cable HDMI Vivolink PRO HDMI LSZH 1 m

The Vivolink PRO HDMI LSZH 1m is a high-performance HDMI 2.0 cable with Ethernet, designed for reliable transmission of high-definition audio and video. This 1 metre cable features HDMI Type A connectors on both ends, gold-plated contacts and a low-smoke zero-halogen (LSZH) jacket for safer installation in confined spaces. It supports resolutions up to 4K@60Hz (4096 x 2160) with HDCP 2.2, 3D, CEC and ARC and offers a data bandwidth of up to 18 Gbit/s.

Advantages

The cable offers high data throughput (18 Gbit/s) and compatibility with HDMI 2.0 features such as 4K@60Hz, HDCP 2.2 and ARC, ensuring synchronized audio-video transmission. Gold-plated contacts improve signal contact and corrosion resistance. The LSZH outer jacket reduces smoke and toxic gas emissions in the event of fire, and the cable’s ultra-flexible construction simplifies routing in tight spaces.

Suitable for

• Connecting 4K Blu-ray players, set-top boxes and streaming devices to TVs and monitors
• Home theatre components requiring ARC and HDCP 2.2 support
• Short runs between media players and displays in living rooms, offices or meeting rooms
• Installations where LSZH cabling is preferred for safety

Key specifications

• Length: 1 m
• Connectors: HDMI Type A to HDMI Type A
• HDMI version: 2.0
• Maximum resolution: 4096 x 2160 (4K) at 60 Hz
• Bandwidth: up to 18 Gbit/s
• Features: Ethernet, ARC, CEC, 3D, HDCP 2.2
• Contacts: Gold-plated
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Black
• Weight: 0.06 kg

How to use

Connect one HDMI Type A connector to the HDMI output of your source device (for example a Blu-ray player, streaming box or PC) and the other HDMI Type A connector to the HDMI input of your display or audio-video receiver. Ensure both devices support the desired HDMI features (for example 4K@60Hz or ARC) and select the correct HDMI input on the display. For ARC functionality, enable ARC in both TV and AV receiver settings if required.

Recommendations

For best results keep the cable run short (this 1 m cable is intended for short connections) and avoid sharp bends. Use LSZH cabling in areas where reduced smoke and toxic emission in case of fire is required. If you experience handshake or HDCP issues, verify device firmware and try a power cycle of connected equipment.
