Cable SAS DeLOCK 85756 1 m

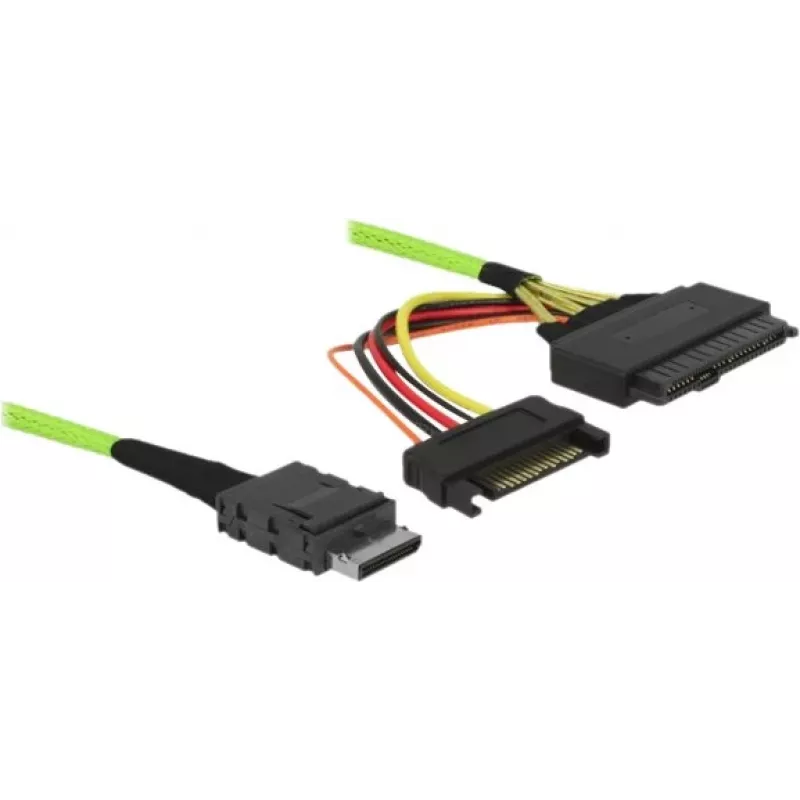

This OCuLink cable by Delock connects internal storage devices, for example an SSD with an SFF-8639 connector to a controller with an OCuLink SFF-8611 interface. The DeLOCK 85756 is a 1 meter SAS cable combining an SFF-8611 connector on one end with an SFF-8639 plus SATA 15‑pin power connector on the other end, intended for reliable data transfer in high‑performance systems. The cable is individually packaged in a polybag.

Advantages

The cable supports connections between controllers with OCuLink (SFF-8611) and devices using SFF-8639, providing a compact internal link suitable for SAS/NVMe environments. Its 1 m length offers flexible routing inside chassis, and the integrated SATA 15‑pin connector supplies drive power where required. The product is sold individually and packaged in a polybag for straightforward replacement or installation.

Suitable for

• Connecting SSDs with SFF-8639 to controllers with OCuLink SFF-8611
• Internal cabling inside servers and workstations
• High-performance storage setups requiring SAS/NVMe links

Key specifications

• Brand: DELOCK
• MPN: 85756
• EAN: 4043619857562
• Length: 1 m
• Connectors: SFF-8611 to SFF-8639 + SATA 15‑pin
• Packaging: polybag, single unit

How to use

Power off the system before installation. Route the cable inside the chassis and connect the SFF-8611 end to the controller’s OCuLink port and the SFF-8639 end to the drive. If the drive requires a separate power input, attach the SATA 15‑pin power connector to the power supply cable. Ensure connectors are fully seated and secure any cable ties to avoid strain on connectors.

Recommendations

Use this cable for internal connections only. Avoid tight bends and do not pull on the cable when connectors are attached. Verify compatibility of the SFF-8639 device and controller firmware for SAS/NVMe operation prior to use.
