Cable sensor/actuador DeLOCK 1 m RST M12 negro 80514

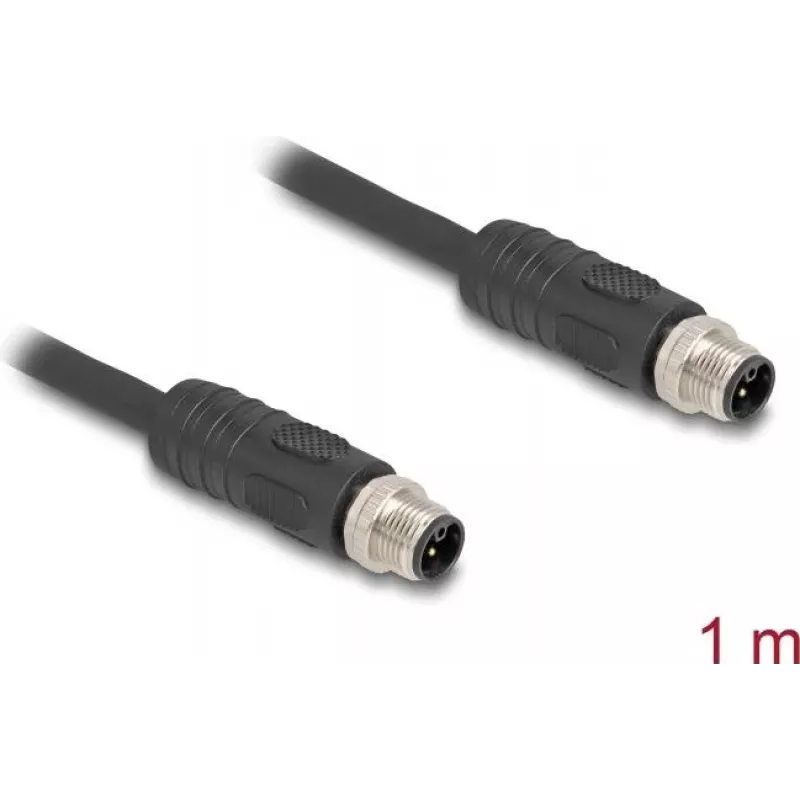

The DeLOCK sensor/actuator cable 1 m RST M12 Black (80514) is a 1 meter M12 L-coded cable designed for DC power transmission in industrial environments. It includes RST connectors and four power contacts rated to carry up to 12 A at 63 V, providing a compact connection for powering field devices and actuators.

Advantages

The L-coded M12 design offers a standardized, compact connector with four power contacts for reliable low-voltage, high-current transmission. With a rated current of 12 A at 63 V, the cable supports stable power delivery for fieldbus modules, sensors, actuators and small motors. Its 1 m length and robust M12 housing simplify installation in confined spaces and industrial setups.

Suitable for

• Supplying power to fieldbus components and sensors
• Connecting actuators and small industrial motors
• Powering industrial power supply units and control modules
• Use in DC applications requiring low voltage and higher current

Key specifications

• Connector type: M12, L-coded, RST connector
• Number of power contacts: 4
• Rated current: 12 A
• Rated voltage: 63 V
• Cable length: 1 m
• Color: Black
• Manufacturer: DELOCK, MPN 80514, EAN 4043619805143

How to use

Connect the M12 RST connectors to compatible L-coded M12 sockets on the field device and the power source. Ensure connectors are fully seated and secured according to the device specifications. Observe correct polarity and wiring assignment for the four power contacts to prevent damage. Use the 1 m length to position devices within reach of the power source or inline modules.

Recommendations

Use this cable in dry and industrial environments within the specified voltage and current ratings. Avoid excessive bending near the connector and route the cable away from sharp edges and high-temperature surfaces. Verify connector coding (L-coded M12) compatibility with equipment before installation.
