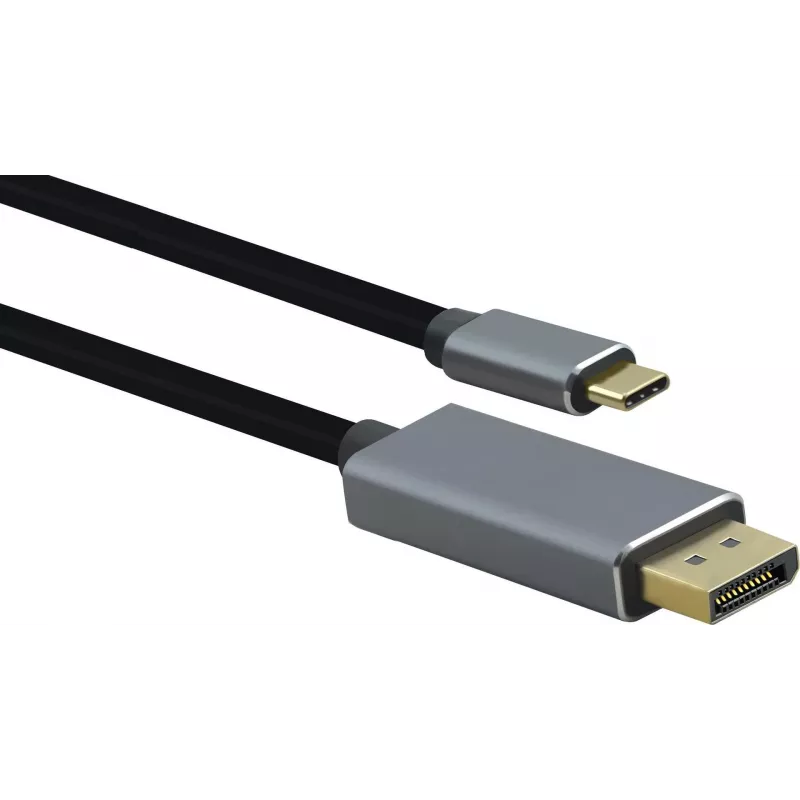

Cable USB 3.1 Type-C a DisplayPort helos 288365, longitud 1,8 m

Helos PREMIUM USB-C to DisplayPort cable (model 288365) is a 1.8 m video cable that connects devices with a 24‑pin USB-C port to monitors and projectors with a 20‑pin DisplayPort input. The cable supports USB 3.1 data signalling and DisplayPort 1.2 video mode, enabling up to 4K (3840 × 2160) resolution at 60 Hz. The connectors feature gold plating and aluminium housings, and the cable jacket is made of thermoplastic elastomer (TPE) in black.

Advantages

The cable provides direct digital video transmission from USB-C hosts that support DisplayPort Alt Mode, delivering 4K/60Hz output without additional adapters. Aluminium connector housings and gold‑plated contacts improve mechanical durability and signal reliability. At 1.8 m length the cable balances reach and signal integrity for desktop and meeting-room setups.

Suitable for

• Connecting laptops with USB-C (DisplayPort Alt Mode) to DisplayPort monitors
• Connecting tablets or smartphones with USB-C video output to projectors
• Extending desktop or mirroring displays for presentations and video playback

Key specifications

• Model: helos 288365
• Length: 1.8 m
• Connector A: 24‑pin USB‑C (male)
• Connector B: 20‑pin DisplayPort (male)
• Standards: USB 3.1 signalling / DisplayPort 1.2
• Maximum resolution: 3840 × 2160 @ 60 Hz
• Cable jacket: thermoplastic elastomer (TPE)
• Connector finish: gold‑plated contacts, aluminium housings
• Color: black
• EAN: 4005938883653

How to use

Plug the USB‑C connector into a USB‑C port on the source device that supports DisplayPort Alt Mode. Connect the DisplayPort end to the monitor or projector input. Select the correct input on the display and configure resolution/refresh settings in the source device’s display settings if necessary. No additional drivers are required for standard video output.

Recommendations

Use with devices that explicitly support DisplayPort Alt Mode over USB‑C. Avoid tight bends near the connectors and keep the cable away from strong electromagnetic sources to maintain signal quality.
