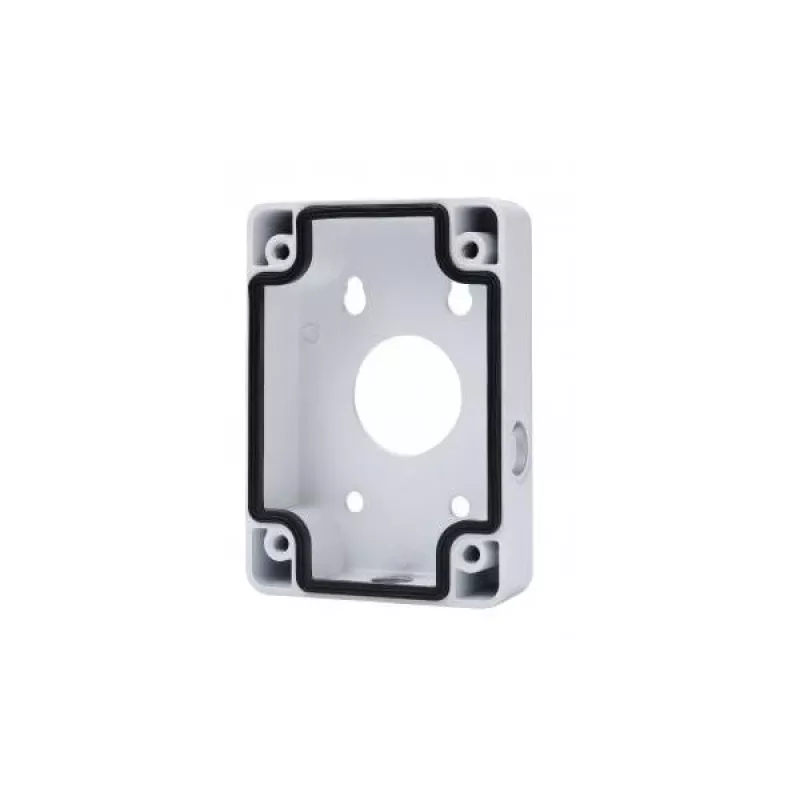

Caja de conexiones Dahua Technology PFA120

The Dahua Technology Junction Box PFA120 is a waterproof aluminum junction box intended for indoor use. It is designed to protect electrical connections for security cameras and similar devices in wet or damp environments. The unit is finished in white and supports installations with a 1/2" connecting thread and a maximum equipment weight of 7 kg. Its compact dimensions are 115 mm (width) x 37 mm (depth) x 160 mm (height).

Advantages

The PFA120 offers a neat, integrated design that conceals and secures cable terminations while providing corrosion-resistant aluminum construction. Its waterproofing and standard 1/2" thread make it compatible with a wide range of CCTV camera mounts and fittings. Compact dimensions and up to 7 kg load capacity allow straightforward integration into indoor surveillance setups.

Suitable for

• Indoor CCTV camera installations requiring protected cable junctions
• Security camera mounting points with 1/2" thread
• Environments with occasional moisture or condensation

Key specifications

• Material: Aluminum
• Color: White
• Connecting thread: 1/2"
• Maximum supported weight: 7 kg
• Dimensions (W×D×H): 115 × 37 × 160 mm
• Model / MPN: PFA120 (Dahua Technology)
• EAN: 6939554903434

How to use

Mount the junction box to a suitable indoor surface using appropriate fasteners for the substrate. Route camera and power cables into the box and make the necessary electrical connections inside the enclosure. Secure cable entries and the cover to maintain the waterproof protection. Attach the camera or compatible adaptor to the 1/2" thread and ensure the total hanging weight does not exceed 7 kg.

Recommendations

For reliable protection, use the junction box indoors and avoid direct outdoor exposure. Verify cable glands or sealing methods are appropriate for the installation and confirm the combined weight of the camera and mounting accessories remains below 7 kg.
