Caja de derivación Spelsberg Abox Pro 160-L, IP66/IP67/IP69, gris, 160x160x91mm 41640001

Rated at IP69, this junction box withstands high-pressure, high-temperature washdowns, making it suitable for demanding industrial environments. The Spelsberg Abox Pro 160-L is a robust enclosure for electrical connections, offering protection against dust, water, and mechanical impact.

Overview

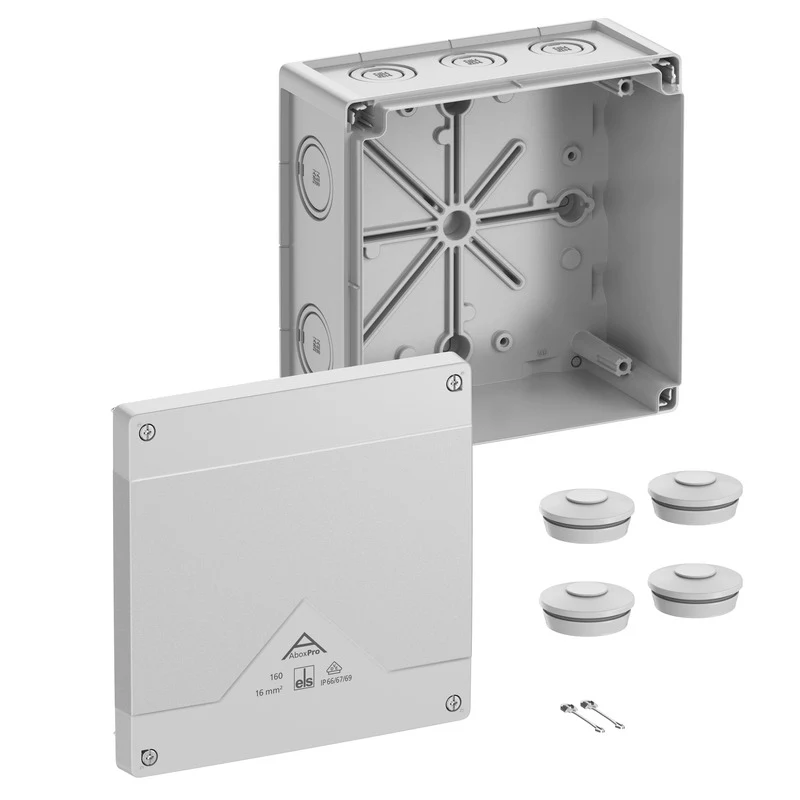

The Abox Pro 160-L is a grey polycarbonate junction box with external dimensions of 160 x 160 x 91 mm. It features 10 elastic cable entries for M25/M32 conduits and screw terminals for conductors up to 16 mm². The box is halogen-free and has an impact resistance of IK08.

What stands out

• High protection: IP66, IP67, and IP69 ratings.
• Durable polycarbonate housing, grey RAL 7035.
• Temperature range: -35 °C to +80 °C.
• Glow wire test: 960 °C.
• 5-pole screw terminals, rated 76 A, 690 V.

Technical details

• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 4 kV
• Rated current: 76 A
• Max conductor cross-section: 16 mm²
• Number of poles: 5
• Terminal type: Screw terminals
• Material: Polycarbonate (PC)
• Glow wire test: 960 °C
• Operating temperature: -35 °C to +80 °C
• Halogen-free: Yes
• Impact resistance: IK08
• Colour: Grey (RAL 7035)
• Lid type: Opaque
• Cable entries: 10 elastic entries (M25/M32)
• Internal dimensions: 148 x 148 x 80 mm
• Mounting type: Wall, ceiling, floor
• Test standard: DIN EN 60670-22

Our verdict

The Abox Pro 160-L delivers high protection and reliable performance for industrial wiring applications.
