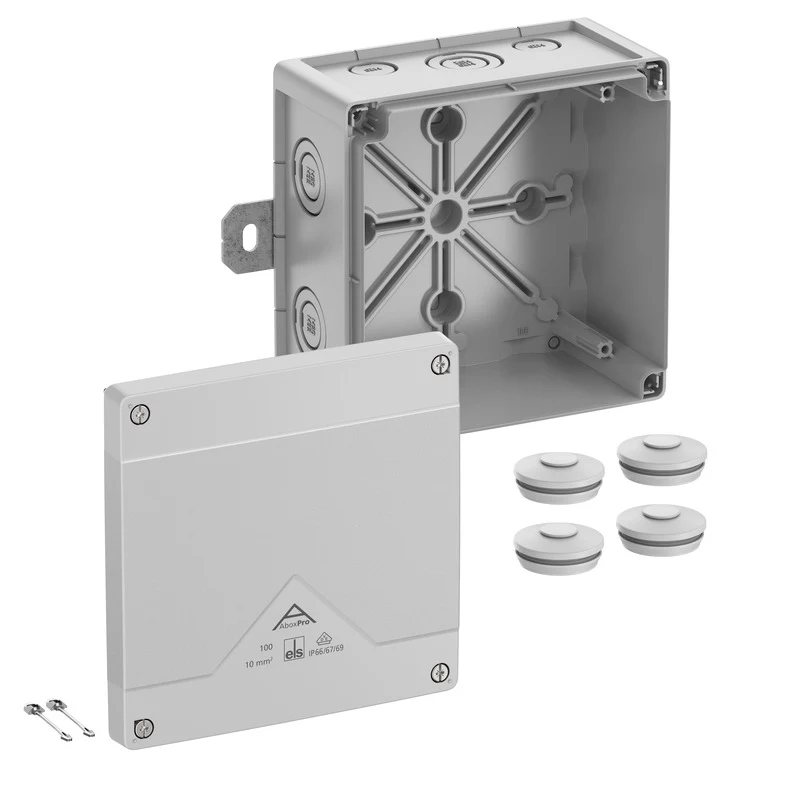

Spelsberg 41040101 caja de derivación 152 x 152 x 85 mm gris IP66/IP67/IP69

Electricians and panel builders use the Spelsberg 41040101 junction box to protect cable connections in demanding industrial and outdoor environments. The grey polycarbonate enclosure measures 152 x 152 x 85 mm and provides a reliable housing for wiring junctions, splices, and distribution points.

Key specifications

• Material: Polycarbonate (PC), halogen-free
• Colour: Grey (RAL 7035)
• Ingress protection: IP66, IP67, IP69
• Impact resistance: IK08
• Rated insulation voltage: 690 V AC
• Rated current: 63 A
• Number of cable entries: 10 (M25/M32 knockouts)
• Lid fastening: Quick-release screws (1/4 turn)
• Mounting: External mounting lugs
• Operating temperature: -35 °C to +80 °C
• Flammability rating: UL 94 V-0
• Glow wire test: 750 °C (IEC 60695-2-11)
• UV resistant: Yes
• Chemical resistance: Good against oils, fats, alcohols, weak acids/bases
• Standards: IEC 60670-22, VDE

Why choose it

The high IP69 rating allows cleaning with high-pressure hot water, making this box suitable for food processing and washdown areas. The polycarbonate material is tough, UV-stable, and halogen-free, ensuring long-term durability outdoors. Quick-release lid screws speed up installation and maintenance.

Ideal use cases

• Outdoor electrical installations exposed to weather
• Industrial machinery and control cabinets
• Food and beverage production areas requiring hygienic washdown
• Junctions in solar, agricultural, or marine environments

Good to know

The box is supplied empty, without terminal blocks, allowing full flexibility for custom wiring configurations. Cable entry is via pre-formed knockouts for M25 and M32 glands.
