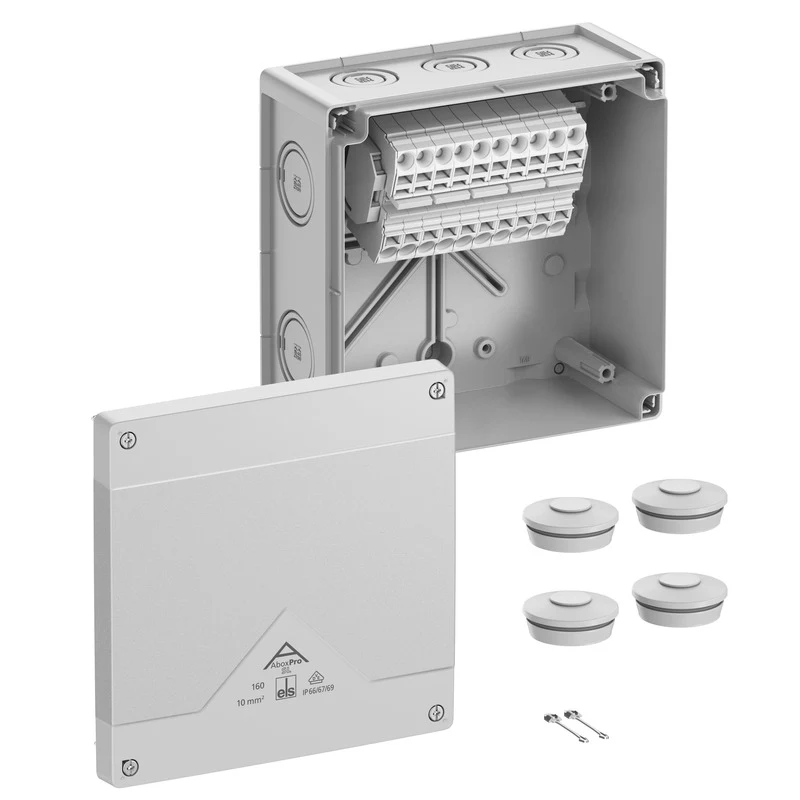

SPELSBERG Abox Pro SL-10² caja de derivación, IP66/IP67/IP69, 5 polos, 10 mm², gris 41044001

Electrical installations in demanding environments often fail because standard enclosures cannot withstand high-pressure cleaning, dust, or temporary submersion. The SPELSBERG Abox Pro SL-10² junction box solves this with a polycarbonate housing rated IP66, IP67, and IP69, ensuring reliable protection for cable connections in industrial and outdoor settings.

Who is it for

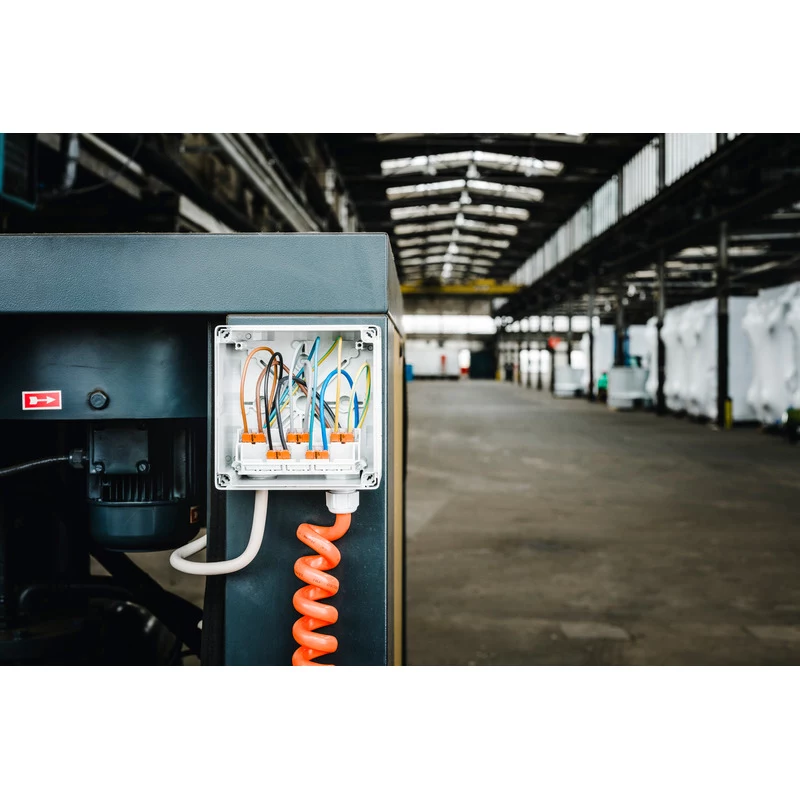

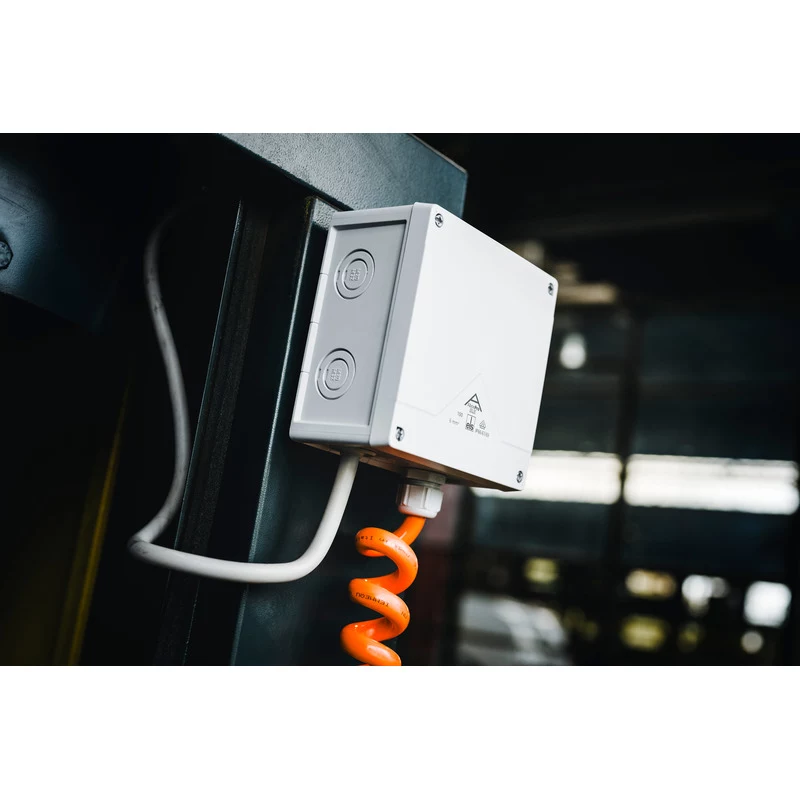

This junction box is built for electricians and installers who need a durable, easy-to-mount enclosure for cable branching and distribution. It suits applications in food processing, chemical plants, washdown areas, and outdoor installations where ruggedness and quick access are essential.

Main features

• High protection: IP66 (dust-tight and powerful water jets), IP67 (temporary immersion), IP69 (high-pressure, high-temperature washdown).
• Robust polycarbonate housing, grey RAL 7035, halogen-free and UV-resistant, impact rating IK08.
• Rated insulation voltage 690 V, rated current 32 A, supports conductors up to 10 mm².
• 5-pole screw terminals for secure wiring.
• Eight elastic cable entries: 7 × M20 and 1 × M25, accommodating various cable diameters.
• Quick-release lid fasteners (4×) for tool-free opening, opaque lid.
• Wide temperature range: -35 °C to +80 °C, glow wire test 750 °C per EN 60670-22.
• Internal mounting points for easy installation; internal dimensions 98 × 98 × 57 mm.

Specifications

• Brand: SPELSBERG
• Model: Abox Pro SL-10²
• MPN: 41044001
• EAN: 4013902663644
• Protection class: IP66 / IP67 / IP69
• Rated insulation voltage: 690 V
• Rated current: 32 A
• Max. conductor cross-section: 10 mm²
• Number of poles: 5-pole
• Terminal type: Screw terminals
• Housing material: Polycarbonate (PC)
• Lid material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Glow wire test: 750 °C (according to EN 60670-22)
• Temperature range: -35 °C to +80 °C
• Cable entries: 8 elastic entries (7x M20, 1x M25)
• Halogen-free: Yes
• UV resistant: Yes
• Impact resistance: IK08
• Mounting type: Internal mounting points
• Lid fastening: Quick-release fasteners (4x)
• Lid type: Opaque
• Internal dimensions (L x W x H): 98 x 98 x 57 mm
• Certifications: VDE

Tips

When installing in washdown areas, ensure cable glands are tightened to the specified torque to maintain the IP69 rating. For outdoor use, position the box to avoid direct sunlight on the lid to prolong seal life, though the material is UV-resistant.
