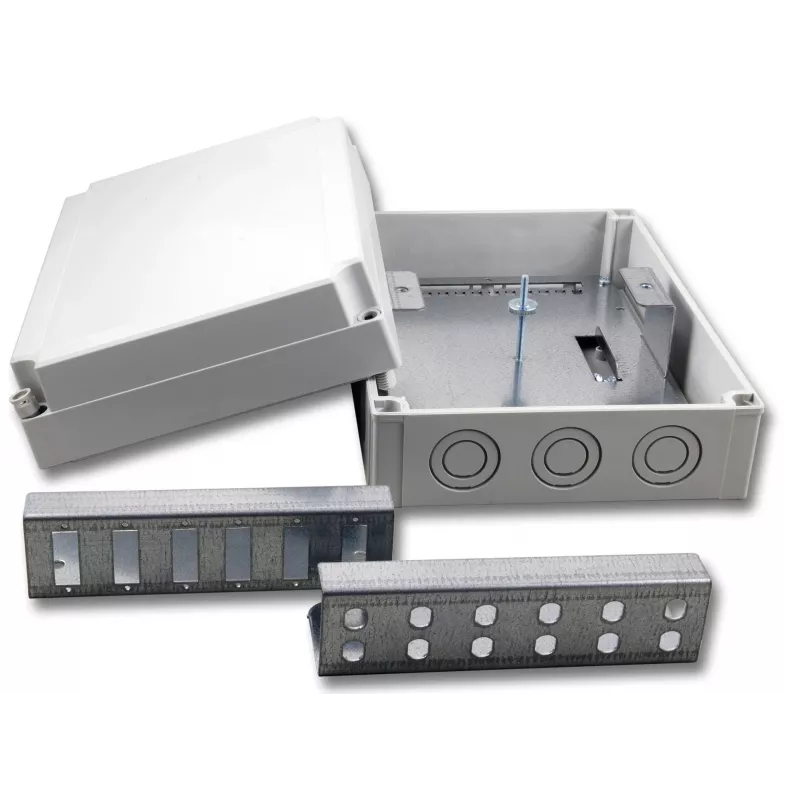

Caja de distribución de fibra óptica EFB Elektronik - RAL 7035 - 12x SC dúplex OM4

The EFB Elektronik Fiber Optic Distribution Box (model 53710.1) is a high-quality wall-mountable enclosure designed for indoor fiber optic network termination and distribution. Manufactured from robust steel sheet with a light grey (RAL 7035) finish, this box provides reliable protection and organization for up to 24 fiber splices and 12 SC-Duplex OM4 adapters. Ideal for structured cabling in data centers, telecom rooms, and enterprise networks.

Advantages

Durable steel housing with IP20 protection ensures safe operation in indoor environments. The integrated strain relief and cable routing simplify installation and maintain fiber integrity. Lockable screw closure prevents unauthorized access. Compact dimensions (220 x 220 x 60 mm) allow flexible wall mounting.

Suitable for

• Fiber optic termination and distribution in LAN/WAN networks
• Data center patching and splice management
• Telecommunication rooms and building infrastructure
• OM4 multimode fiber applications up to 10 Gbps and beyond

Key specifications

• Product Type: Fiber Optic Distribution Box
• Housing Material: Steel sheet
• Colour: RAL 7035 (Light Grey)
• Mounting: Wall mount
• Protection Class: IP20
• Number of Ports: 12
• Connector Type: SC-Duplex
• Fiber Mode: Multimode
• Fiber Class: OM4
• Max. Fiber Capacity: 24
• Adapters Included: 12x SC-Duplex OM4
• Splice Trays Included: 2x (each for 12 splices)
• Max. Splice Capacity: 24
• Cable Entry Glands: 2x PG16, 2x PG11
• Application: Indoor
• Lockable: Yes (screw)
• Dimensions (W x H x D): 220 x 220 x 60 mm

Recommendations

For optimal performance, use with OM4 patch cables and appropriate splice protectors. Ensure proper grounding according to local regulations.
