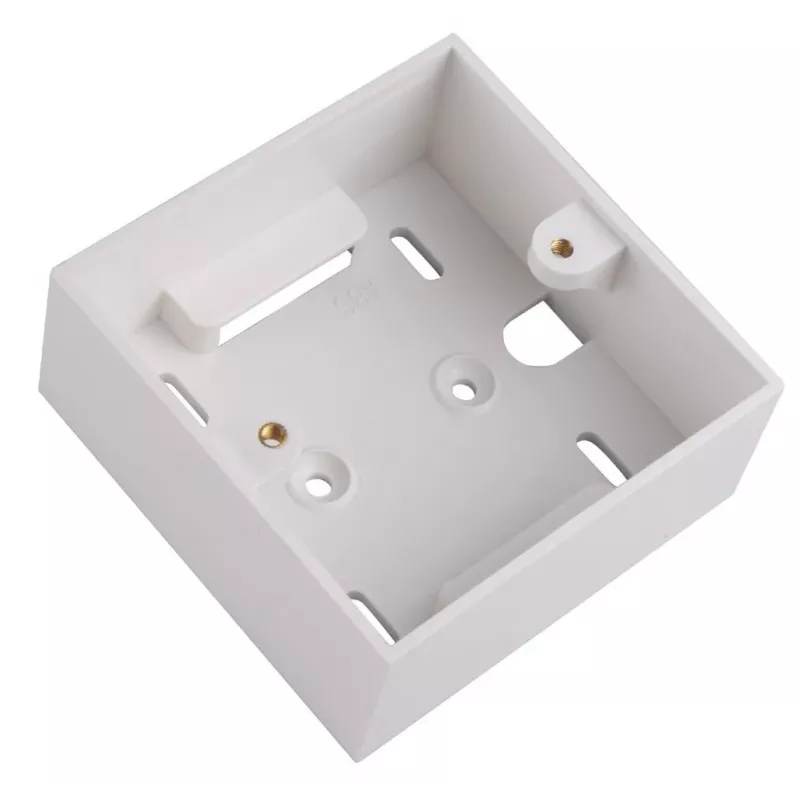

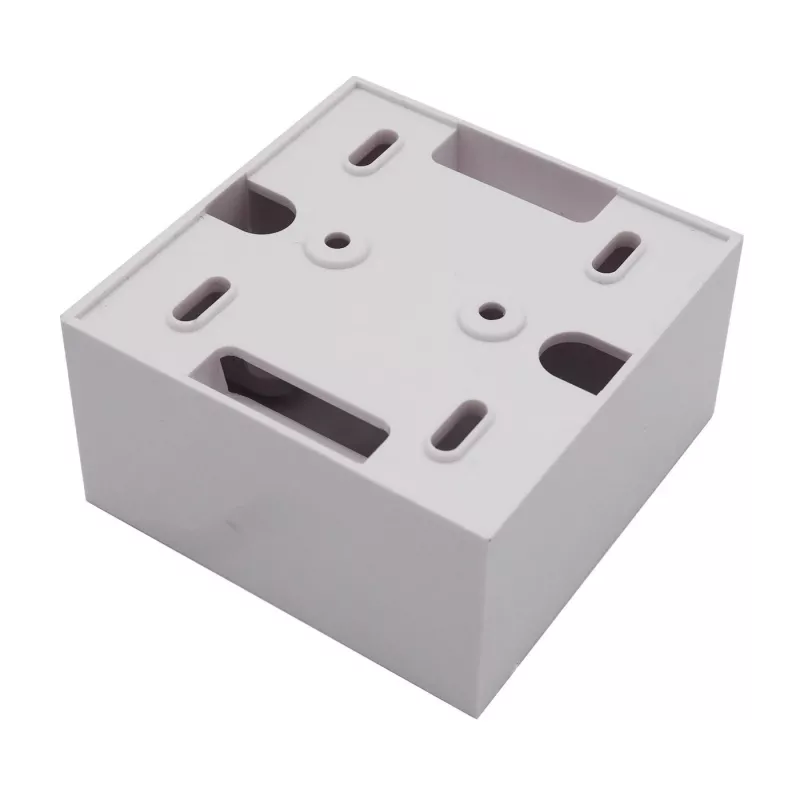

Caja de empotrar Lanview LVN126078UK blanca 86x86x36 mm

The Lanview LVN126078UK outlet box is a single/double-gang back box made of durable ABS, designed to house standard electrical outlets. Its 86 x 86 x 36 mm dimensions suit common wall constructions and the unit includes breakaway cable entries to accommodate different cable routing needs.

Advantages

The ABS construction provides impact resistance and long-term dimensional stability while remaining lightweight. Breakaway cable entries allow flexible installation for various cable directions. The 86 mm square format matches industry-standard faceplates for straightforward mounting.

Suitable for

• Mounting single or double gang electrical outlets
• Standard residential and commercial wall installations
• Retrofitting or new-build electrical wiring where 86×86×36 mm back boxes are required

Key specifications

• Brand: Lanview
• Model / MPN: LVN126078UK
• EAN: 5704174531302
• Material: ABS plastic
• Dimensions: 86 × 86 × 36 mm (W × H × D)
• Weight: 400 g
• Country of origin: China

How to use

Position the back box at the desired mounting location and mark the fixing points. Knock out the appropriate cable entries as needed, run the cable into the box, and secure the box to the wall according to local installation regulations. Fit the outlet or faceplate over the box and fasten with screws to complete the installation.

Recommendations

Use compatible industry-standard faceplates and follow local electrical codes. Ensure cables are properly routed through the breakaway entries and that the box is fixed securely before connecting power.
