Toma de conexión de mesa Tipo F Kindermann 7492000071 Plata Blanco

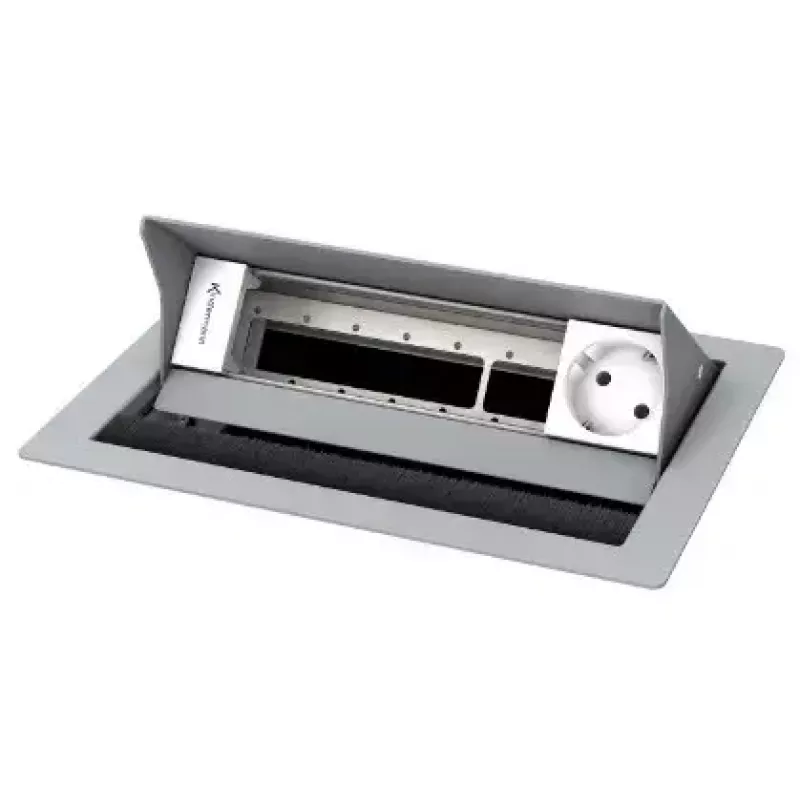

Desktop casing for 4 insets in powder-coated steel (RAL 9006 silver) preinstalled with 1 mains socket and 3 empty modules. The Kindermann 7492000071 outlet box measures 250 × 190 mm, supports installation depths up to 65 mm and is designed for desktops up to 40 mm thickness. It provides a flush, level-mounted appearance and can be configured with Konnect flex 45 adapter plates to accept media controls, USB chargers and similar interfaces.

Advantages

Quick mounting is enabled by a click mechanism. The unit offers a homogeneous, level-mounted interface appearance and allows easier mounting into desktops from above. Level-mounted desktop integration is possible. The casing is compatible with common media control modules and USB chargers and includes a mains connection with a 3-pin GST 18 plug.

Suitable for

Key specifications

How to use

Prepare a cutout in the desktop that matches the product dimensions and recommended installation depth. Fit the casing from above into the cutout and secure it using the integrated click mechanism. Configure the empty module slots with Konnect flex 45 adapter plates and insert desired interfaces such as media controls or USB chargers. Connect mains power using the supplied 3-pin GST 18 plug following local electrical regulations.

Recommendations

For safe and code-compliant installation, have the mains connection performed or checked by a qualified electrician. Verify the compatibility of chosen Konnect flex 45 modules before installation to ensure flush mounting and correct function.
