Caja de montaje empotrado Axis 02067-001

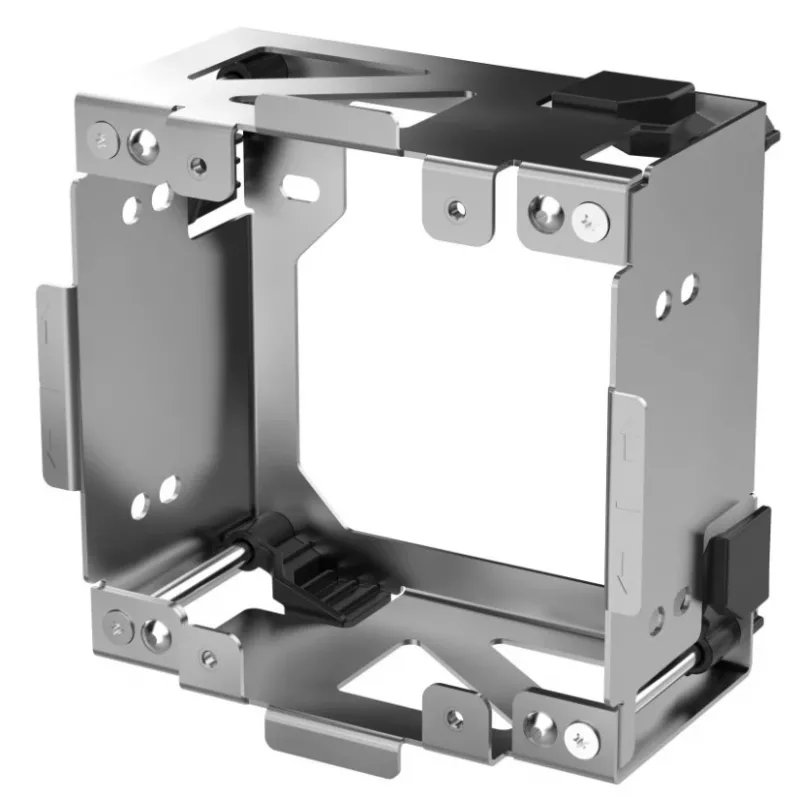

The Axis 02067-001 flush mount box provides a recessed mounting solution for neat installation of the AXIS I8016-LVE Network Video Intercom. Constructed from durable stainless steel, it offers a secure housing and a clean finish that integrates with various wall types. Its compact dimensions (110 mm width × 63 mm depth × 110 mm height) make it suitable for both indoor and outdoor installations where a discreet, robust mounting is required.

Advantages

Designed specifically for Axis intercom systems, the flush mount box ensures a reliable fit and simplifies installation. Stainless steel construction increases resistance to corrosion and mechanical wear, while multiple mounting and wiring options allow adaptation to different wall materials and cable routing needs. The recessed design improves aesthetics by minimizing protrusion from the wall surface.

Suitable for

• Mounting the AXIS I8016-LVE Network Video Intercom
• Indoor and outdoor wall installations
• Walls with limited mounting depth or where a flush finish is preferred

Key specifications

• Manufacturer: AXIS
• Model / MPN: 02067-001
• EAN: 7331021071872
• Material: Stainless steel
• Dimensions: 110 mm (W) × 63 mm (D) × 110 mm (H)
• Purpose: Recessed flush mount for AXIS I8016-LVE intercom

How to use

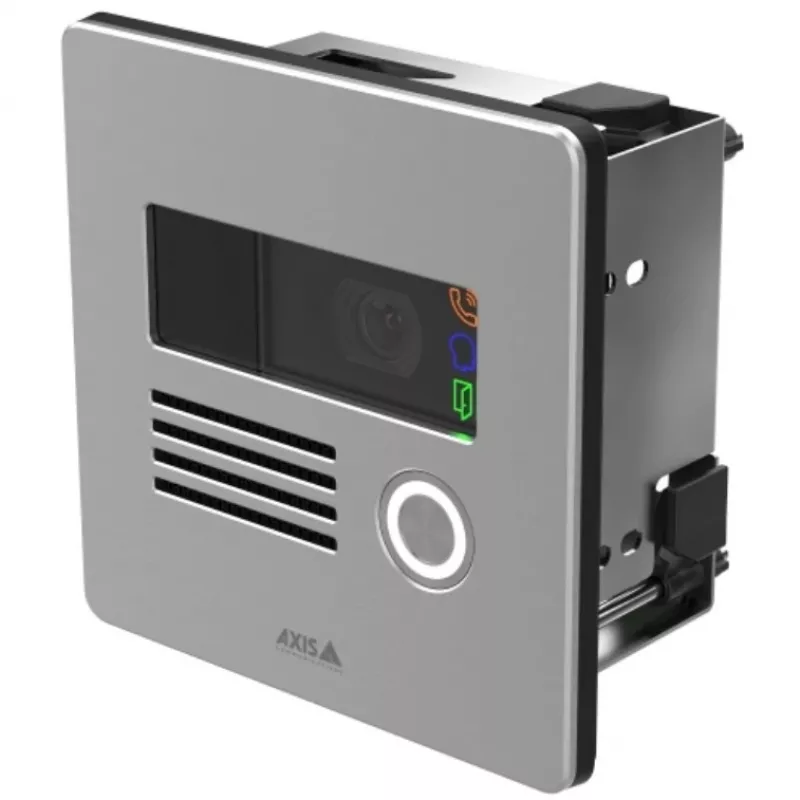

Prepare the installation opening according to the dimensions of the flush mount box and the wall material. Route necessary cabling through the chosen entry points, place the box into the recess, and secure it to the wall using appropriate fasteners for the substrate. Install the AXIS I8016-LVE Network Video Intercom into the flush mount, connect cables following the intercom manufacturer’s instructions, and verify alignment and secure fastening before restoring power.

Recommendations

Use corrosion-resistant fasteners appropriate for the wall substrate and ensure cable entries are sealed for outdoor installations. Verify compatibility with the AXIS I8016-LVE intercom and follow the intercom’s installation guide for electrical and network connections.
