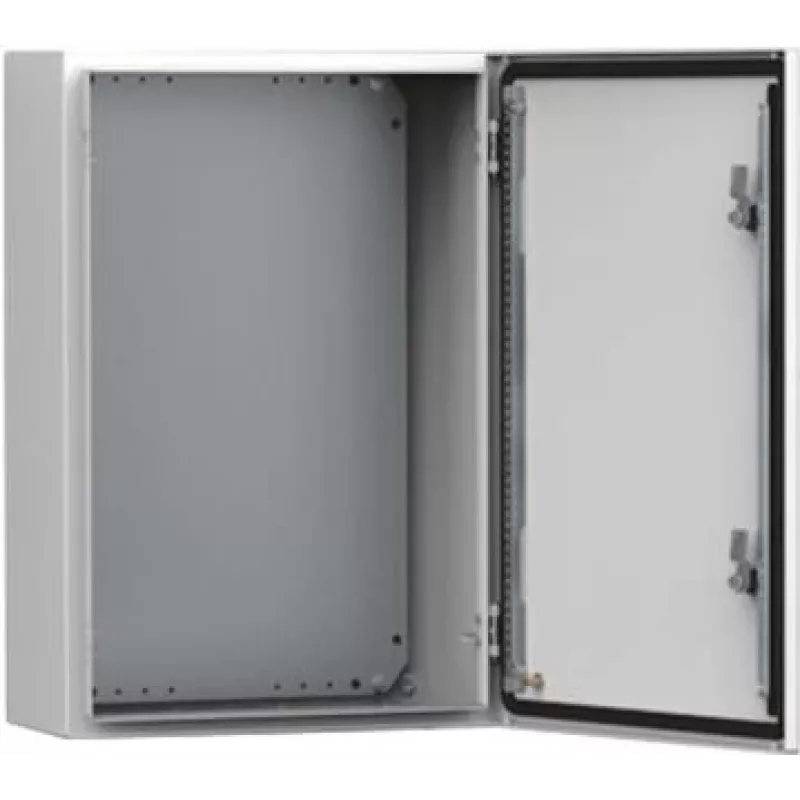

Caja de pared Eldon nVent MAS0302515R5 300x250x155 mm, acero, IP66, gris claro

Industrial electricians and panel builders install this wall-mount enclosure in factories, workshops and outdoor technical rooms to protect electrical controls, terminals and small automation components. The 300 x 250 x 155 mm steel housing offers a robust, weatherproof solution for demanding environments.

Key specifications

• External dimensions: 300 mm height, 250 mm width, 155 mm depth
• Material: mild steel, powder coated in RAL 7035 light grey
• Protection degree: IP66
• Impact resistance: IK10
• Single door with 130° opening angle and double-bit 3 mm lock
• Includes galvanized steel mounting plate and bottom gland plate
• Body thickness: 1.2 mm; door thickness: 1.5 mm
• Reversible door

Why choose it

The robust steel construction and high protection ratings make this enclosure suitable for harsh industrial settings. The included mounting plate simplifies component installation, while the reversible door adds flexibility during setup.

Ideal use cases

• Housing motor starters and contactors in production lines
• Protecting PLCs and I/O modules in washdown areas
• Outdoor distribution points for site electrical supplies
• Control stations for conveyor systems and packaging machines

Good to know

The enclosure is part of the Eldon MAS series and is supplied with a galvanized mounting plate. The powder-coated finish provides corrosion resistance and a clean industrial appearance.
