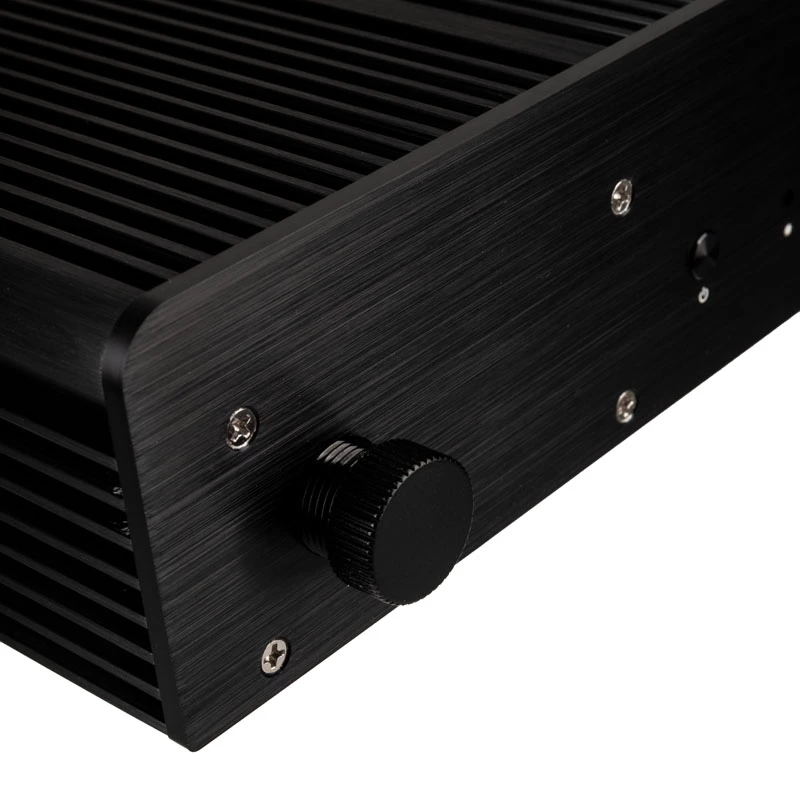

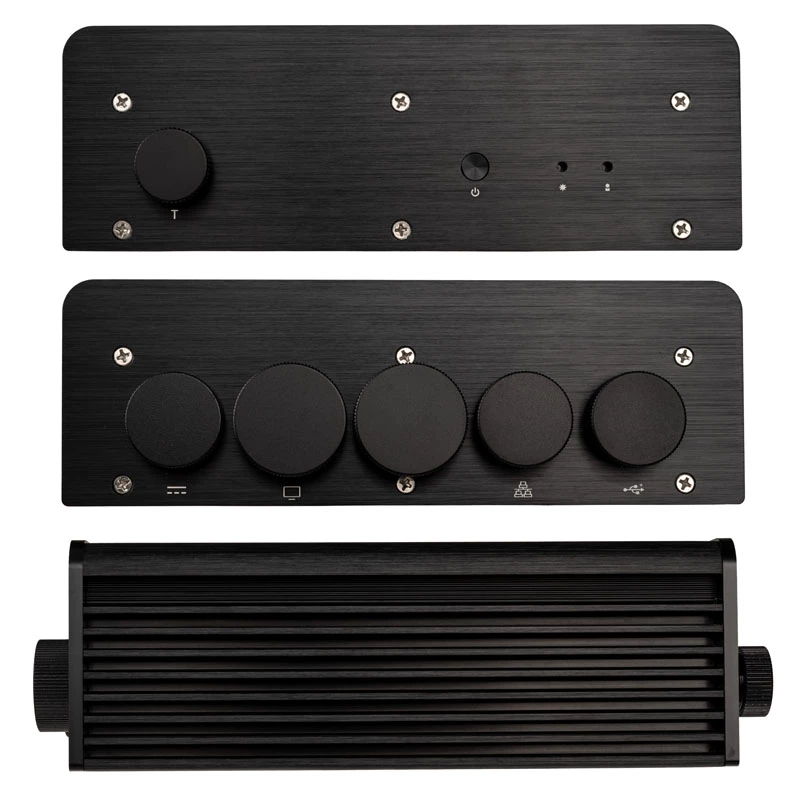

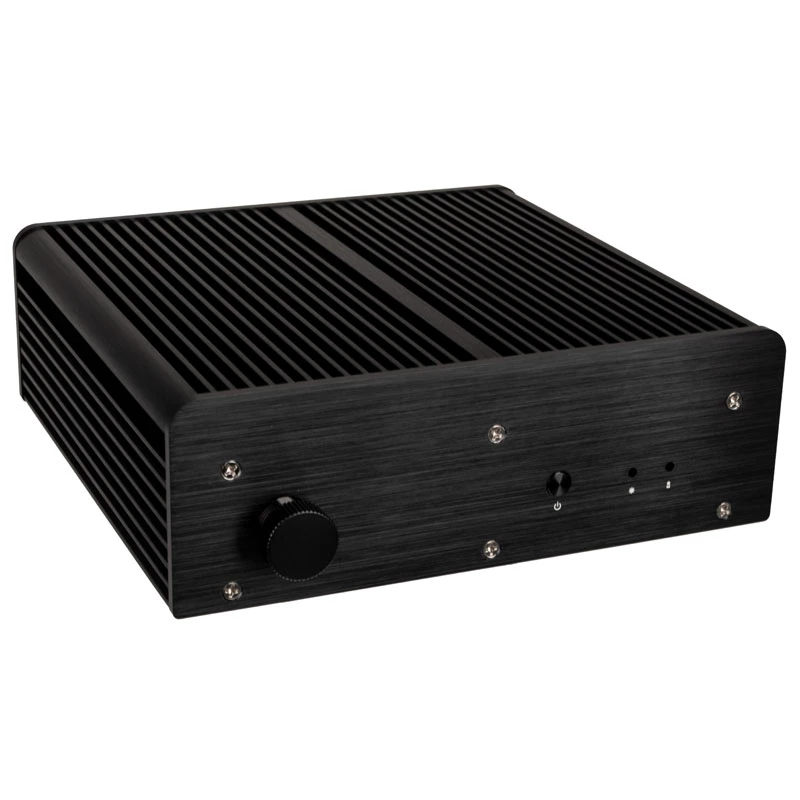

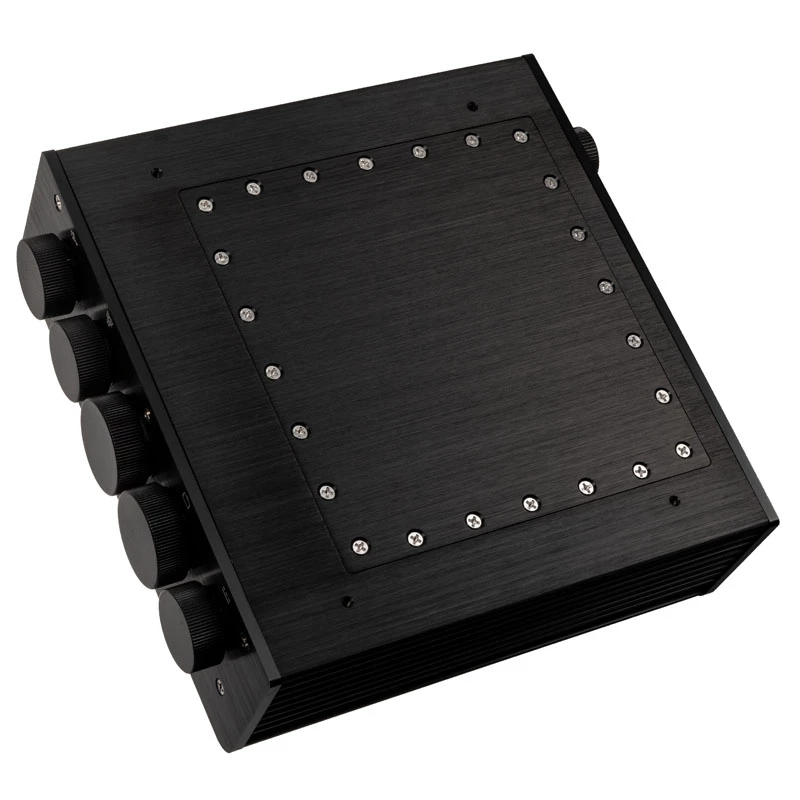

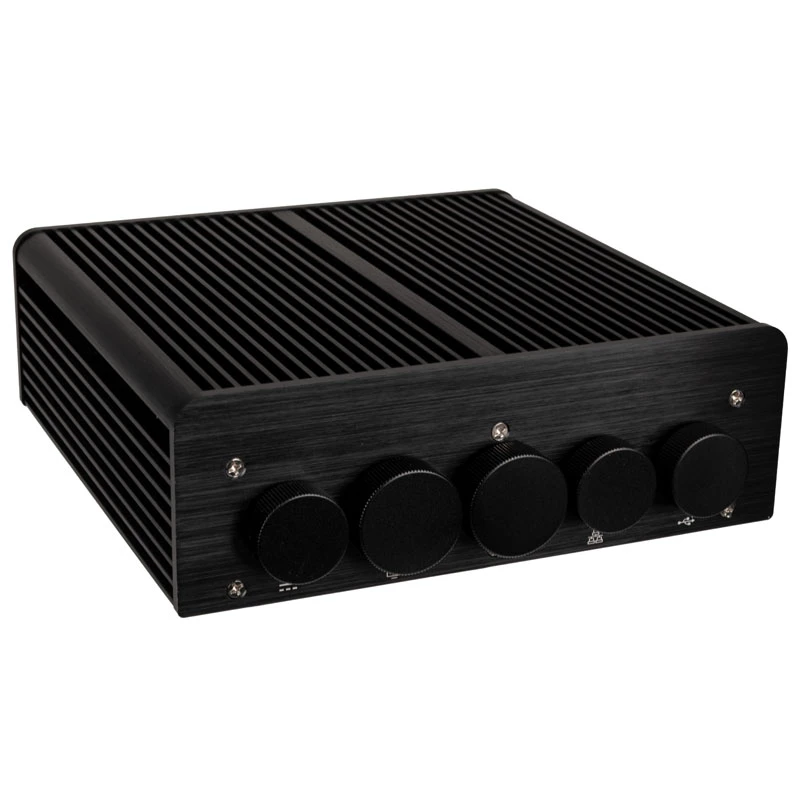

Caja de PC Akasa Pascal PX Ultra Small Form Factor negra

The Akasa Pascal PX Ultra Small Form Factor Black is a compact, IP65-rated waterproof and fanless PC case designed for 8th Generation Intel® NUC (Provo Canyon) systems. Constructed from aluminium with a black finish, the case supports NUC boards up to Intel® Core i7 (vPro® capable) and includes modular waterproof connectors plus essential cables (power adapter, USB 3.0, HDMI and network cable, each 2 m). Its fanless thermal design and rugged ingress protection make it suitable for installations that require a small footprint and reliable operation in exposed or industrial environments.

Advantages

The Pascal PX combines an aluminium fanless cooling chassis with IP65 waterproofing to enable low-noise, maintenance‑free operation in dusty or damp locations. Modular waterproof connectors and included 2 m cables simplify installation and reduce the need for additional accessories. Compatibility with Intel® NUC 8 Pro (Provo Canyon) boards, including vPro®-enabled Core i7 options, allows remote management and advanced security for commercial deployments.

Suitable for

• Digital signage and multimedia displays
• In-vehicle or car PC installations
• Outdoor kiosks and navigation systems
• Automation and industrial control units
• Medical devices requiring compact, sealed enclosures

Key specifications

• Model: Akasa Pascal PX Ultra Small Form Factor Black (A-NUC56-M1B, EAN 4710679550046)
• Compatibility: 8th Generation Intel® NUC (Provo Canyon) boards, up to Core i7, vPro® supported
• Dimensions: 195.6 mm (W) x 214.7 mm (D) x 64.6 mm (H)
• Material: Aluminium
• Ingress protection: IP65
• Cooling: Fanless
• Ports: 1 × USB 2.0, 1 × USB 3.2 Gen 1 Type-A (3.1 Gen 1)
• Colour: Black
• Included accessories: Power adapter cable, USB 3.0 cable, HDMI cable, network cable (length: 2 m each)

How to use

Install a compatible 8th Generation Intel® NUC (Provo Canyon) board into the Pascal PX chassis following the NUC manufacturer’s instructions. Connect the modular waterproof connectors for power, USB, HDMI and network using the supplied 2 m cables. Mount the case in the chosen location ensuring intake and exhaust areas are not obstructed; no internal fan is required due to the aluminium passive cooling design. For systems with vPro®, configure remote management according to your IT policies.

Recommendations

Place the case in a ventilated area and avoid covering the chassis to maintain passive cooling efficiency. For outdoor or damp environments, verify that all modular connectors are fully seated and sealed. Use compatible Provo Canyon NUC boards only and follow Intel’s thermal and mounting guidelines for optimal reliability.
