Caja de servidor Inter-Tech 2U 2404L rack negro, gris

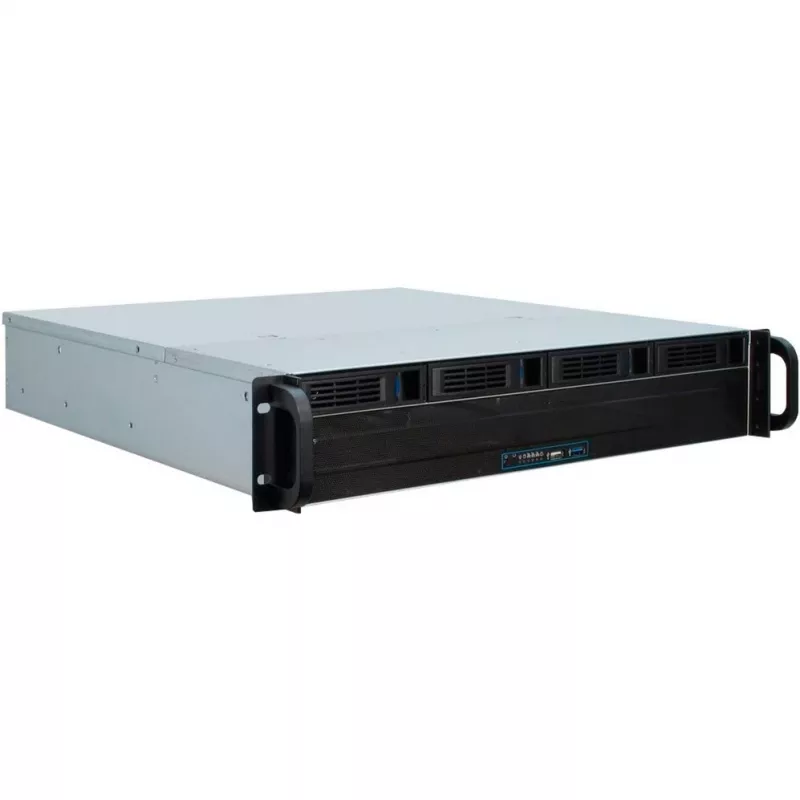

The Inter-Tech 2U 2404L Rack Black, Grey is a 2U server chassis designed to fit standard 19-inch racks and accommodate compact server builds. Its steel construction and matte black-and-grey finish provide a functional housing for Mini-ITX and Micro-ATX motherboards. The chassis supports both 2.5" and 3.5" hard drives and offers a shallow depth to save rack space while maintaining room for up to five 3.5" drive bays. With integrated front I/O including one USB 2.0 and one USB 3.2 Gen 1 Type-A port, the case balances accessibility and compactness for small to medium server deployments.

Advantages

The chassis combines sturdy steel construction with a compact 2U form factor to provide reliable protection and efficient use of rack space. Support for both 2.5" and 3.5" drives plus five 3.5" bays offers flexible storage configurations for diverse workloads. Front-panel USB 2.0 and USB 3.2 Gen 1 ports allow convenient device connectivity. Lightweight design and standard rack width enable straightforward installation and maintenance in server rooms and data closets.

Suitable for

• Small to medium business server installations
• Network-attached storage (NAS) builds with mixed 2.5" and 3.5" drives
• Compact rack deployments where depth is limited
• Home lab servers using Mini-ITX or Micro-ATX motherboards
• Edge computing or branch office appliances

Key specifications

• Form factor: 2U rack chassis for 19" racks
• Supported motherboard sizes: Mini-ITX, Micro-ATX
• Drive support: 2.5" and 3.5" HDD/SSD compatibility
• Number of 3.5" bays: 5
• External 5.25" bays: 0
• Front I/O: 1 × USB 2.0, 1 × USB 3.2 Gen 1 (Type-A)
• Material: Steel body
• Dimensions (W×D×H): 482 mm × 518 mm × 89 mm
• Colour: Black and grey
• Weight: 6.72 kg

How to use

Mount the Inter-Tech 2U 2404L into a standard 19-inch rack using the front mounting ears and appropriate rack screws. Install a compatible Mini-ITX or Micro-ATX motherboard on the internal standoffs, then fit a suitable power supply according to available internal space and connectors. Secure 3.5" or 2.5" drives into the provided bays or trays and connect them to the motherboard via SATA cables. Use the front USB ports for peripheral access or initial setup. Ensure proper cable routing and airflow clearance inside the rack for reliable operation.

Recommendations

For optimal thermal performance and serviceability, reserve adequate front-to-back airflow in the rack, avoid blocking ventilation openings, and use vibration-damping mounting hardware for mechanical hard drives. Choose drive types and RAID configurations according to your redundancy and performance needs, and verify power supply compatibility before final assembly.
