Caja de superficie JUNG ES 2583 A-L acero inoxidable

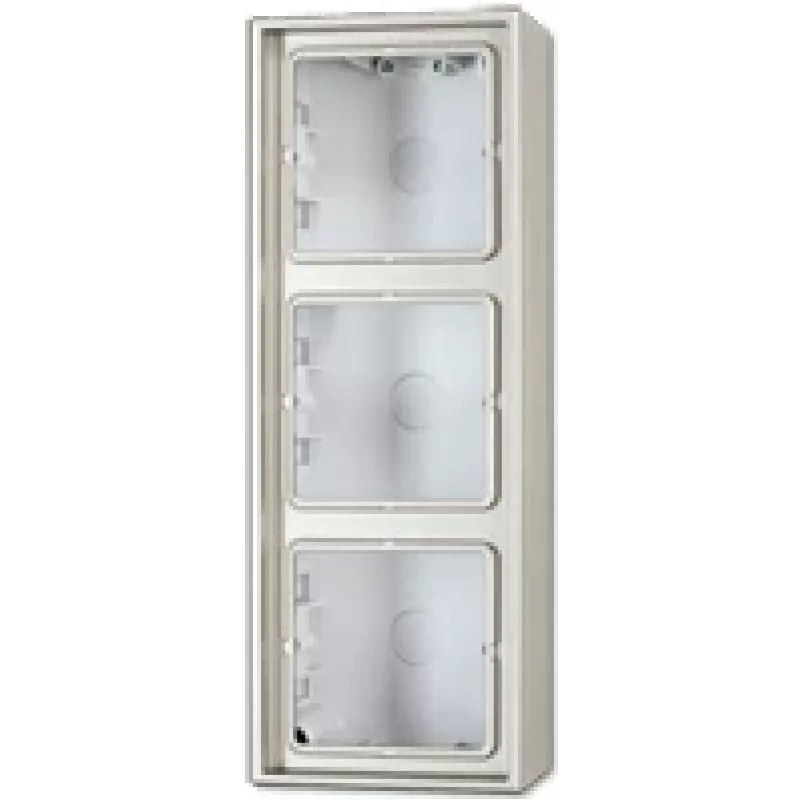

The JUNG ES 2583 A-L outlet box is a stainless steel, 3-gang surface-mounted housing measuring 223 x 81 x 47 mm. It includes an integrated frame and a non‑flammable grounding plate and is compatible with LS-range inserts with covers, except for key switches (ref. ..15), 3-level switches and the Swiss type 13 socket. Installation of radio module R AN ..914 .. into 2- to 3-gang surface caps is possible.

Advantages

Constructed from stainless steel for corrosion resistance and long service life, the outlet box features an integrated frame and a fire-resistant grounding plate for enhanced safety. Its 3-gang format and standard dimensions allow straightforward surface mounting and compatibility with many LS-range inserts, and it supports installation of the specified radio module into 2- or 3-gang caps.

Suitable for

Key specifications

How to use

Prepare the surface where the outlet box will be mounted and follow local electrical codes. Fix the 3-gang stainless steel box to the surface using appropriate screws and anchors for the mounting substrate. Install compatible LS-range inserts with covers into the openings, taking care not to use the excluded key switch ref. ..15, 3-level switch or Switzerland type 13 socket. If required, fit the radio module R AN ..914 .. into a 2- or 3-gang surface cap according to the module manufacturer’s instructions. Connect grounding and conductors according to safety standards before closing the covers.

Recommendations

Use appropriate corrosion-resistant fasteners for mounting on exterior or damp locations and ensure all electrical connections and grounding are completed by a qualified electrician in accordance with local regulations.
