Toma de conexión de mesa tipo F Kindermann 7430000073 Gris Blanco

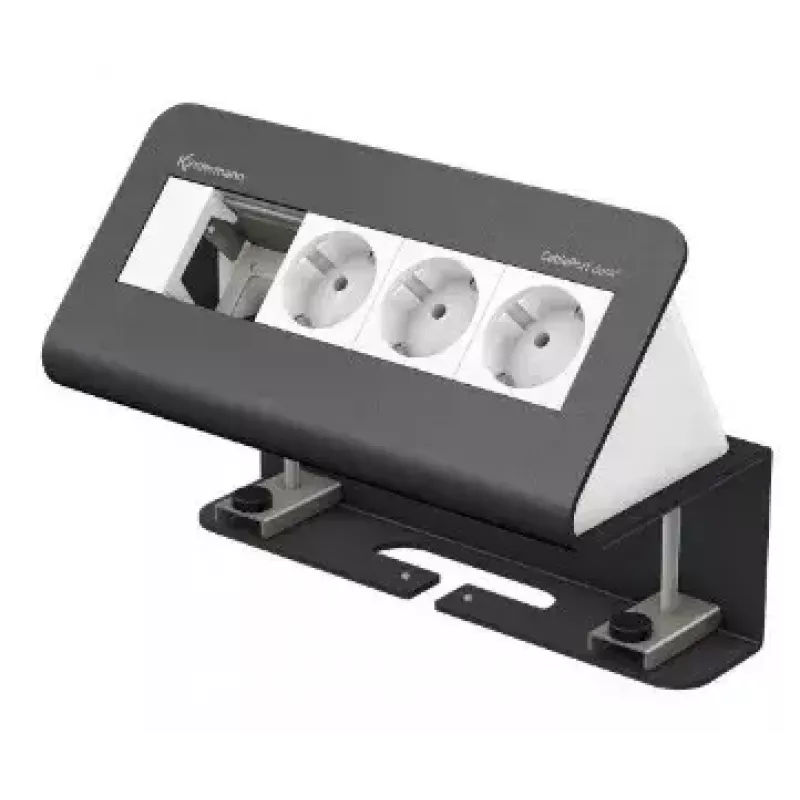

The Kindermann 7430000073 outlet box is a desktop-mount connection unit designed for secure fixation on worktops. The four-compartment casing in powder-coated RAL 7015 slate grey includes three fixed mains sockets and additional space for individual configuration. It provides room for either two half or one full adapter plate from the Konnect flex 45 click series and is supplied with a 1 m GST18 power cable.

Advantages

Adapter plates are mounted using an easy click system that allows quick, tool-free installation. The unit features a plain, flush surface for a discreet appearance and concealed clamps that enable anti-slip fixing on desktops with a thickness of 10–60 mm. It is compatible with Neets media controls, USB recharger modules and EnOcean components, allowing flexible configuration for audiovisual and power needs.

Suitable for

Key specifications

How to use

Place the outlet box on the desktop edge and secure it using the concealed clamps, adjusting them to the desk thickness (10–60 mm). Fit Konnect flex 45 adapter plates by aligning and clicking them into the available half- or full-size slots. Connect the GST18 power cable to a compatible power source and configure additional modules such as Neets media controls, USB recharger or EnOcean devices as required.

Recommendations

For safe and reliable operation, ensure the outlet box is mounted on a stable surface within the specified desk thickness and that electrical connections comply with local regulations. Use only compatible Konnect flex 45 plates and certified modules when expanding the unit.
