Caja eléctrica Rittal 9524.100, Poliamida/Policarbonato IP66, 360×165×254 mm

Rittal 9524.100 is an IP66-rated electrical enclosure constructed from glass-fibre reinforced polyamide with a polycarbonate cover option. With external dimensions of 360×165×254 mm, this enclosure provides a compact but robust housing for electrical and electronic components. The IP66 rating ensures protection against dust ingress and powerful water jets, making the unit suitable for demanding industrial, control and outdoor applications where ingress protection and mechanical strength are required.

Advantages

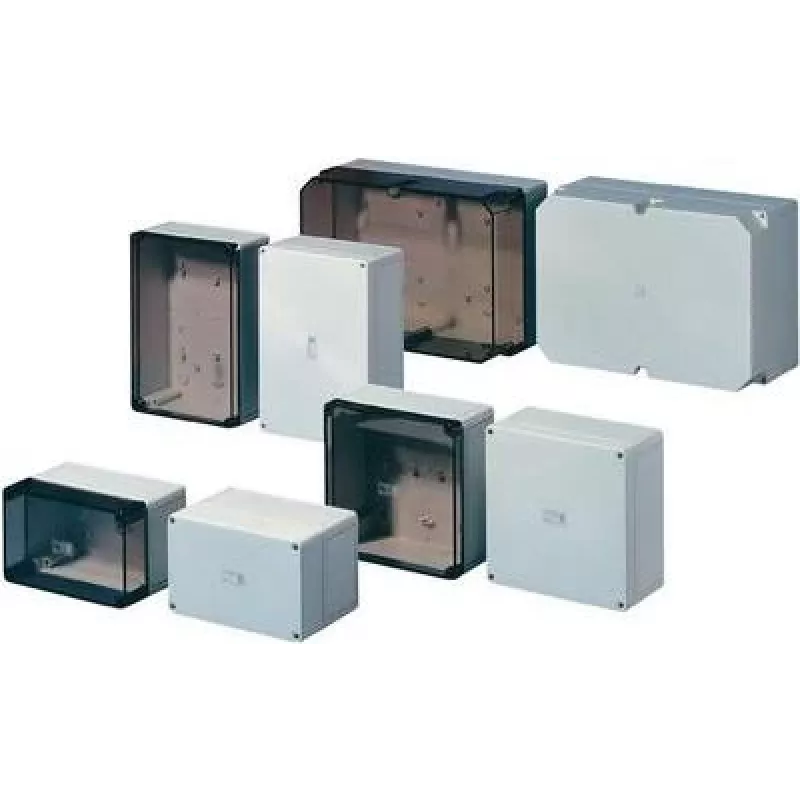

The enclosure combines glass-fibre reinforced polyamide for structural durability with a polycarbonate cover available in grey or transparent variants, enabling component visibility when needed. Its IP66 protection class provides reliable sealing against dust and high-pressure water jets. The compact external size and standardized mounting options facilitate straightforward installation in control cabinets, on machinery or at outdoor junctions. Chemical-resistant materials and impact-resistant construction increase service life in industrial environments.

Suitable for

Key specifications

How to use

Install the enclosure on a flat surface or machine frame using the designated mounting points. Route cables through appropriate gland plates or pre-cut openings and seal entries to maintain the IP66 rating. Mount internal components on the provided mounting plate or DIN-rail accessories where applicable, ensuring adequate spacing for ventilation and cable management. Close the polycarbonate cover and fasten all screws securely to retain ingress protection.

Recommendations

For optimal longevity, avoid prolonged exposure to strong chemical solvents and high-temperature sources. Use appropriate cable glands and gaskets rated for IP66 to preserve the enclosure’s ingress protection. Choose the transparent cover when visual inspection of indicators or status LEDs is required without opening the enclosure.
