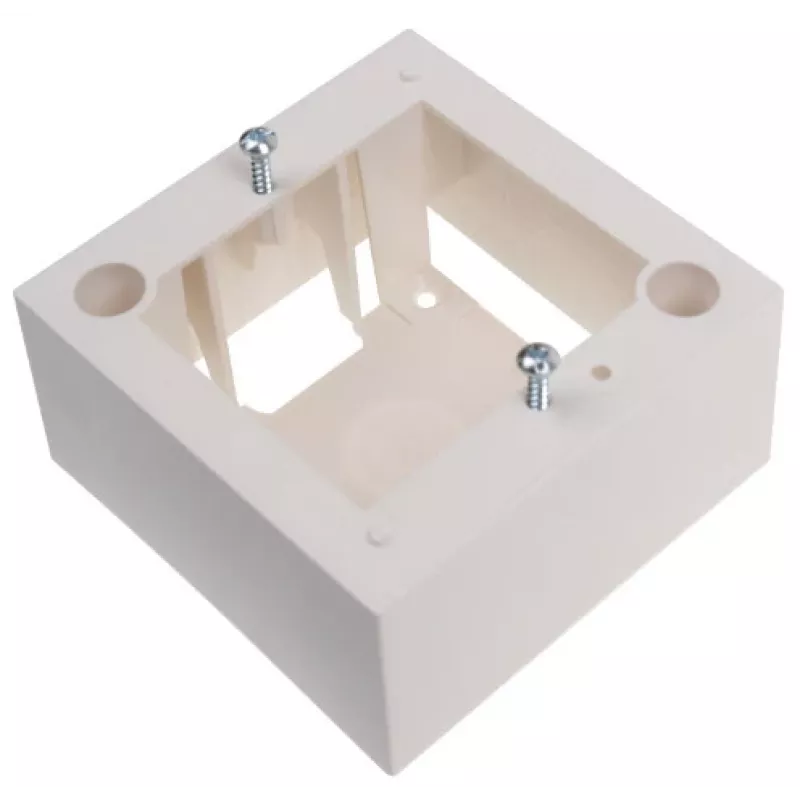

Caja individual de superficie JAVEL para 2 módulos M45, 1M, 45x45, blanca

Engineered for indoor surface mounting, this single gang enclosure accommodates two M45 modules (45x45 mm each) in a compact 1-module width footprint. The white ABS/PC housing is halogen-free and self-extinguishing, meeting safety standards for residential and commercial installations.

Overview

The JAVEL OS102 is a surface-mounted box designed to house two M45 standard modules. It provides a clean, organized solution for mounting switches, sockets, data outlets, or other 45x45 mm modules where flush mounting is not possible. The box features knockouts for cable entry and is fixed using screws, ensuring a secure installation. Its IP20 rating makes it suitable for indoor use only.

What stands out

• Supports two M45 modules (45x45 mm each) in a single gang configuration
• Durable white ABS/PC plastic, halogen-free and self-extinguishing
• Surface-mounted design with screw fixing for easy installation
• Knockout cable entries for flexible wiring
• Compact dimensions: 1-module width (45 mm) with depth and height as per standard

Technical details

• Brand: JAVEL
• Model: 02-O1M-1 OS102
• MPN: 02-O1M-1 OS102
• EAN: 5905567545726
• Mounting type: Surface-mounted
• Number of modules: 2
• Module standard: M45 (45x45 mm)
• Configuration: Single gang
• Colour: White
• Material: Plastic (ABS/PC)
• IP rating: IP20
• Halogen-free: Yes
• Fire resistance: Self-extinguishing
• Fixing method: Screws
• Cable entry: Knockouts
• Operating temperature: -5°C to +40°C
• UV resistance: No (indoor use only)

Our verdict

A reliable and safe choice for surface-mounted M45 module installations. Its halogen-free, self-extinguishing construction and screw fixing provide peace of mind, while the white finish blends seamlessly with most interiors.
