InLine 92504P Zócalo IDC 20 a bloque de terminales de 10 pines, montaje en PCB

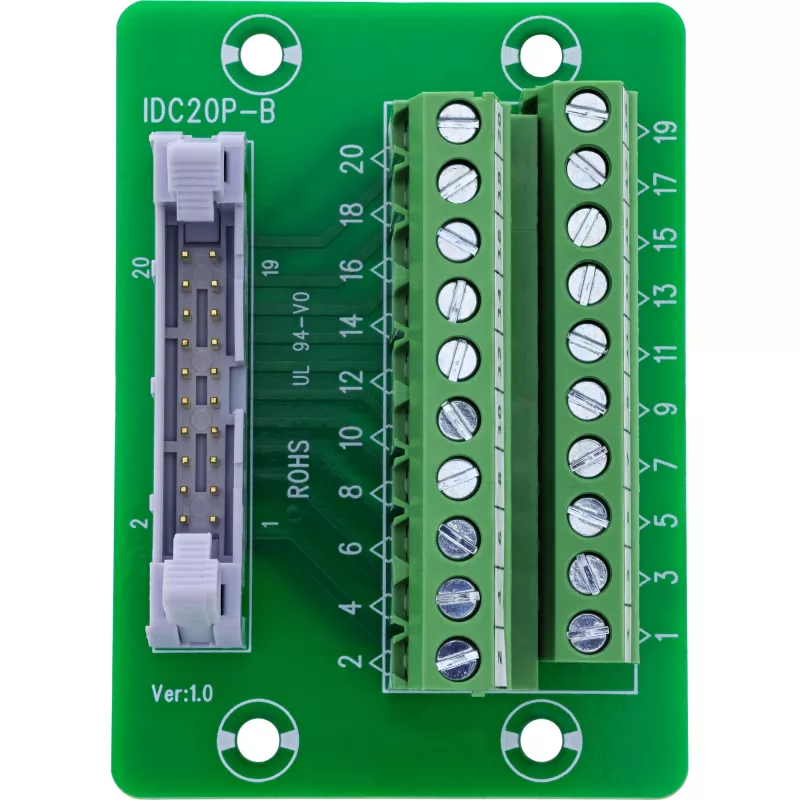

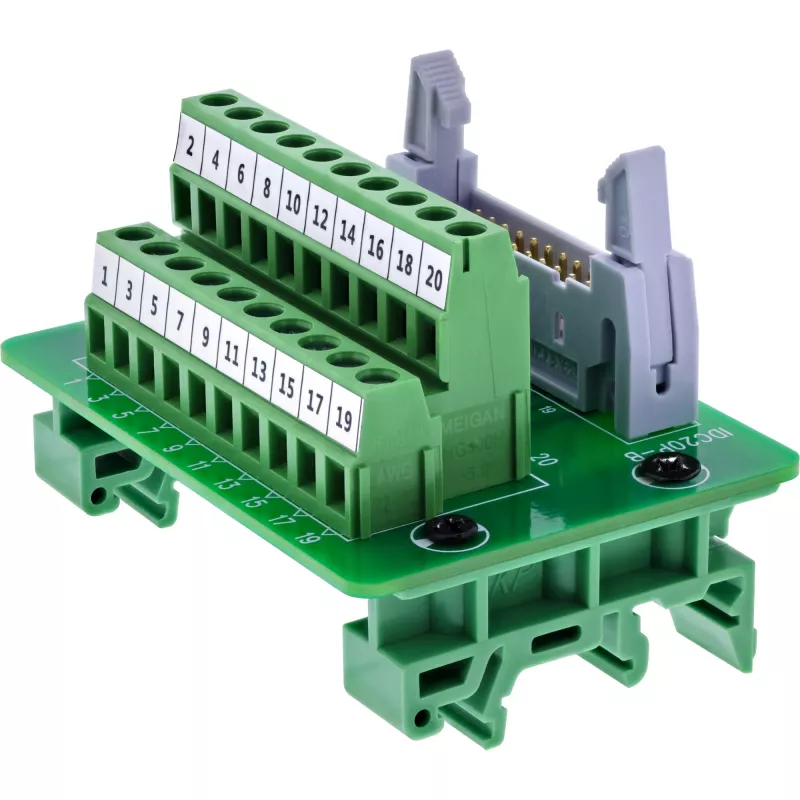

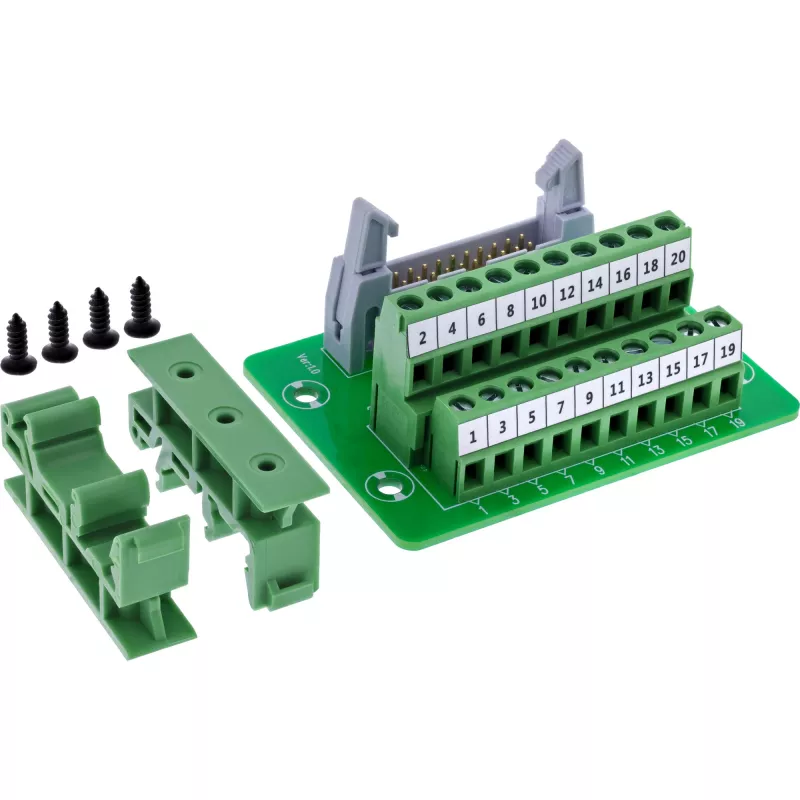

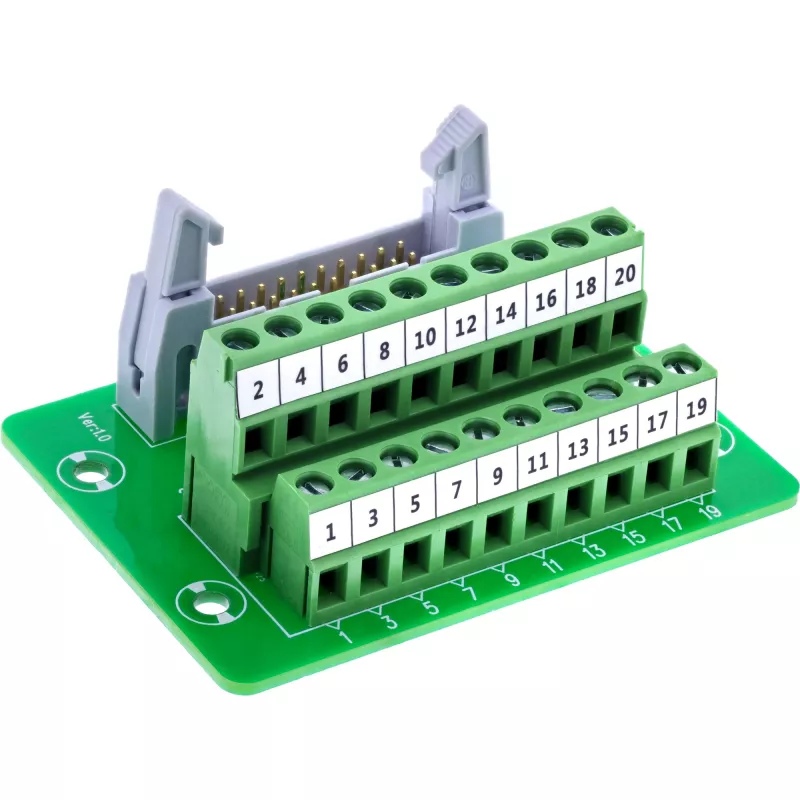

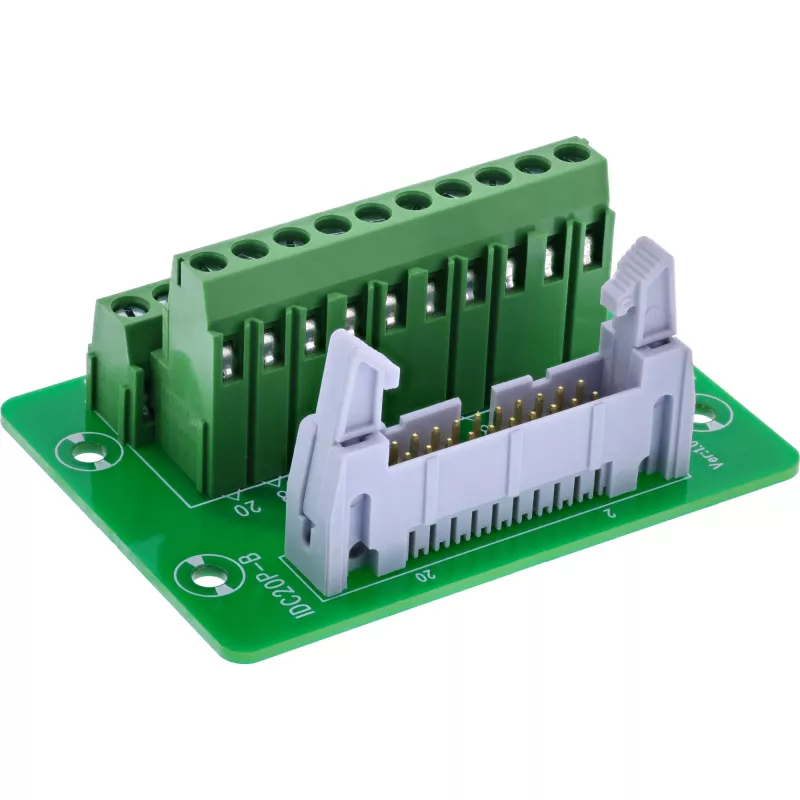

The InLine 92504P adapter connects a 20-pin IDC socket (2×10) to a 10-pin screw terminal block for easy signal wiring without soldering. It is designed for structured installations in test benches, control devices, and embedded systems.

Key features

• Connects 20-pin IDC socket (2×10) to 10-pin screw terminal strip
• No soldering required
• Screw terminals with pressure plate, 5.0 mm pitch
• Clear pin assignment and standardized signal routing
• EVA insulating layer on underside for protection on conductive surfaces
• 100% short-circuit and wiring tested

Specifications

• Brand: InLine
• MPN: 92504P
• IDC interface: 20-pin IDC socket (2×10), pitch 2.54 mm
• Screw terminal strip: 10 terminals, pitch 5.0 mm, with pressure plate
• Signal assignment: GND, D0 to D7
• Connection range: 16–26 AWG
• Actuation: flat-head screwdriver ≤ 2.5 mm
• Rated current: 0.8 A per pin
• Max. operating voltage: 100 V between two signals
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Max. conductor resistance: 5 ohms
• Operating temperature: –10 °C to +70 °C
• Insulation layer: EVA insulation on underside
• Dimensions: approx. 71 × 51 × 48.7 mm (W × H × D)
• Country of origin: Taiwan
• EAN: 4043718346240
