Campana extractora semintegrada CATA TF 5260 WH 325 m³/h blanca

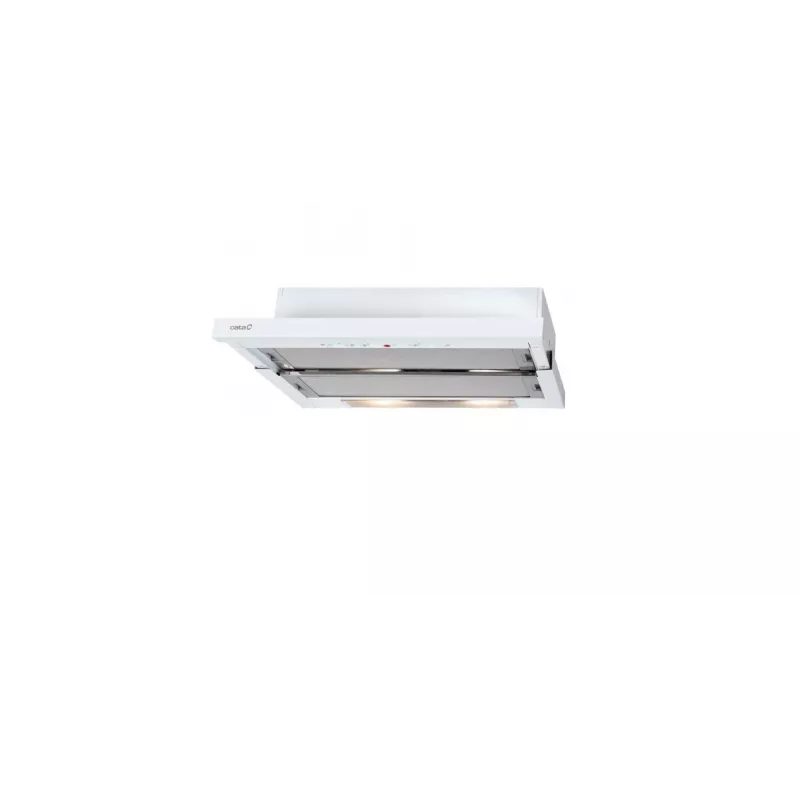

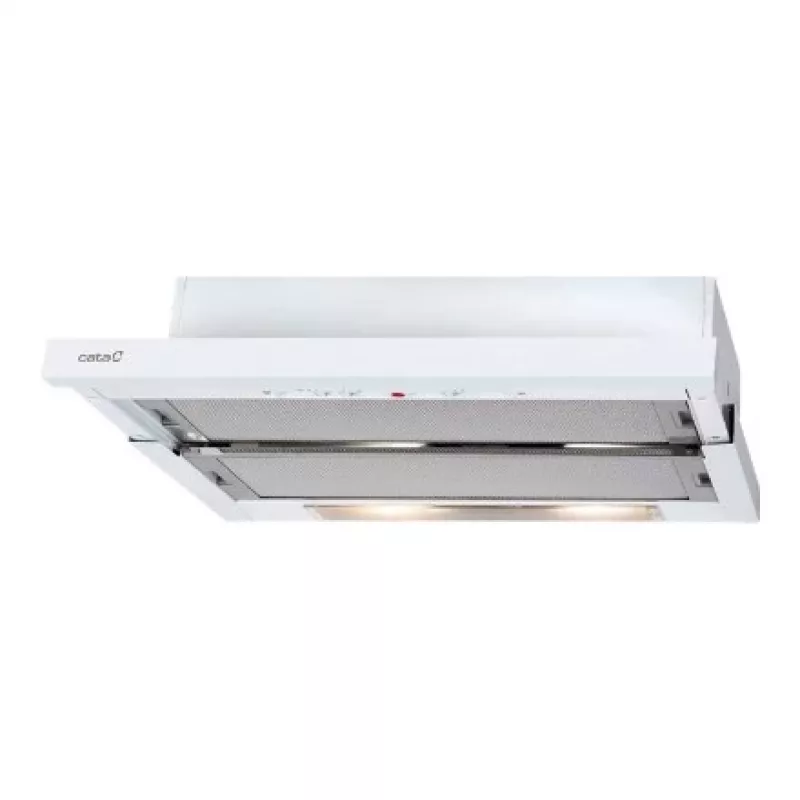

The CATA TF 5260 WH is a semi built-in (pull-out) kitchen extractor in white with a maximum extraction power of 325 m³/h. It supports both ducted and recirculating operation and is designed for installation in 600 mm cabinets. The extractor uses two metal grease filters and is fitted with two 5.5 W LED lamps. Energy efficiency is rated D with an annual consumption of 78 kWh, and the unit operates at a noise level of approximately 68 dB.

Advantages

This semi built-in extractor combines compact dimensions with a pull-out design for discreet integration into kitchen cabinetry. It provides both ducted and recirculating extraction modes to suit different ventilation setups. Metal grease filters offer durable grease capture, while LED lighting supplies clear illumination of the cooktop with low power consumption.

Suitable for

• Homes with 600 mm wall cabinets where a semi built-in extractor is required
• Kitchens requiring either ducted or recirculating ventilation
• Cooking areas where low-power LED lighting is preferred

Key specifications

• Type: Semi built-in (pull-out)
• Width: 600 mm
• Maximum extraction power: 325 m³/h
• Operation modes: Ducted / Recirculating
• Noise level: 68 dB
• Grease filters: 2 metal filters
• Number of speeds: 3
• Lighting: 2 × LED 5.5 W (92.5 lx)
• Fluid dynamic efficiency class: E
• Lighting efficiency class: E
• Grease filtering efficiency class: D

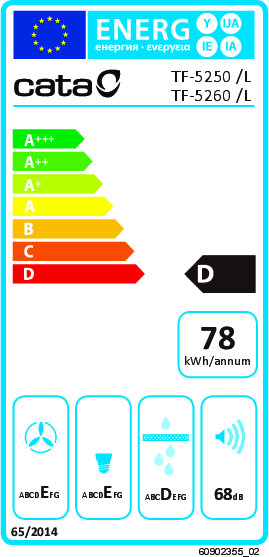

• Energy efficiency class: D
• Annual energy consumption: 78 kWh
• Control type: Scrollbar
• Depth: 280 mm
• Colour: White

How to use

Install the extractor into a 600 mm wide cabinet following the manufacturer’s installation instructions and ensure correct ducting or recirculation setup as required. Use the scrollbar control to select one of three fan speeds, and extend the pull-out section when cooking to increase extraction. Replace or clean the metal grease filters regularly and switch on the LED lights as needed for cooktop illumination.

Recommendations

For optimal performance and lower noise, use the lowest fan speed sufficient for the cooking activity and ensure filters are cleaned or replaced according to the maintenance schedule. When using recirculation mode, fit and replace appropriate charcoal filters as specified by the manufacturer.
