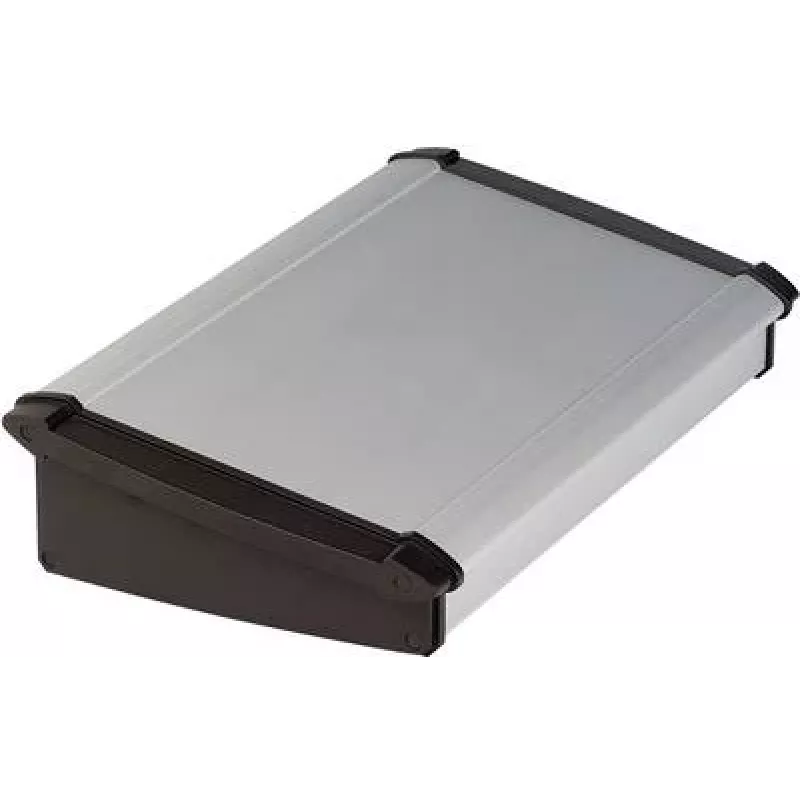

Carcasa de consola Bopla TOPLINE ATPH 1865-200, 200 x 181 x 68 mm, aluminio, gris grafito RAL 7024 92865200.MT 1

The Bopla TOPLINE ATPH 1865-200 console enclosure offers a robust aluminium housing for desktop control panels and measurement devices. Its graphite grey powder-coated finish (RAL 7024) provides a professional appearance and durability. The two-part construction with integrated PCB mounting bosses simplifies assembly and internal layout.

Highlights

• Console enclosure for desktop or console mounting
• Aluminium body with powder-coated graphite grey finish
• External dimensions: 200 mm length, 181 mm width, 68 mm height
• Two-part design with screw-fastened lid
• Integrated PCB mounting bosses for easy board installation

In daily use

This enclosure is suited for housing control electronics, measurement instruments, and desktop devices. The aluminium construction offers good mechanical stability, while the graphite grey coating blends well in industrial and office environments. The lid can be removed for access to internal components, and the mounting bosses allow secure placement of PCBs without additional brackets.

Full specifications

• Product type: Console Enclosure
• Enclosure series: TOPLINE
• Material: Aluminium
• Colour: Graphite Grey (RAL 7024)
• External length: 200 mm
• External width: 181 mm
• External height: 68 mm
• Mounting type: Desktop / Console
• Finish: Powder-coated
• Construction: Two-part (base and lid)
• Internal mounting: Integrated PCB mounting bosses
• Lid fastening: Screws

Final note

A reliable enclosure choice for custom control panel and desktop electronic projects.
