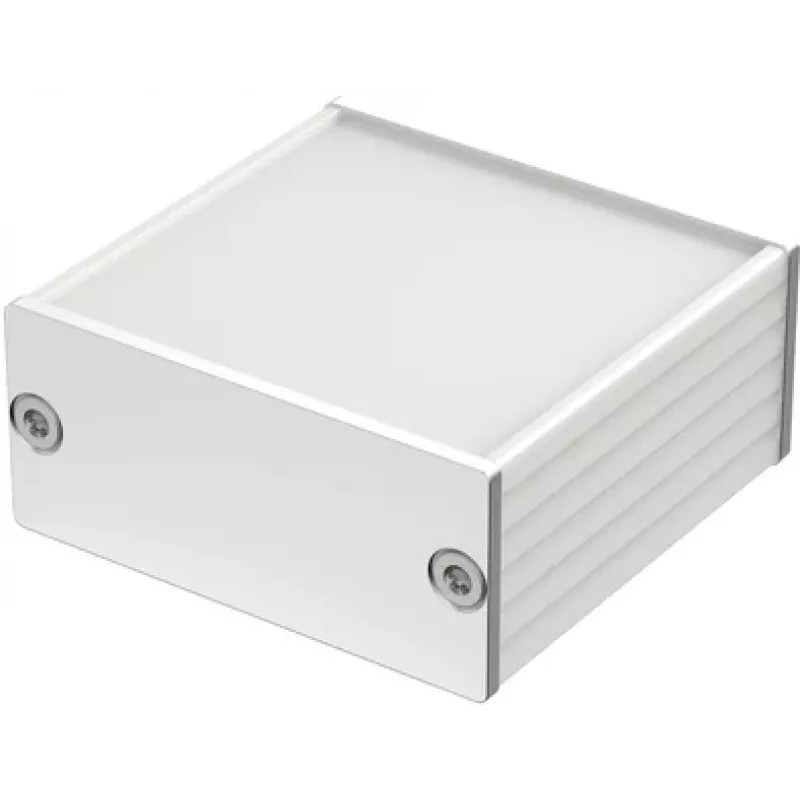

Carcasa de perfil de aluminio Bopla Filotec F 524-50 55,3 x 24,4 x 50 mm anodizada 97153050.H

Protect sensitive electronics in a robust, heat-dissipating aluminium housing. The Bopla Filotec F 524-50 profile enclosure offers a compact solution for PCBs and industrial components, ensuring durability and efficient thermal management.

Who is it for

Engineers and hobbyists building industrial electronics, custom controllers, or PCB-based devices that require a lightweight yet sturdy enclosure with good heat dissipation.

Main features

• Extruded aluminium profile with anodized surface for corrosion resistance and a clean silver finish.
• Internal screw channels allow secure mounting of PCBs without additional brackets.
• Compact dimensions: 55.3 mm height, 24.4 mm width, 50 mm length.
• Natural aluminium colour blends into industrial environments.
• RoHS compliant, supporting environmentally conscious designs.

Specifications

• Product type: Profile enclosure
• Material: Aluminium
• Surface treatment: Anodized
• External height: 55.3 mm
• External width: 24.4 mm
• External length: 50 mm
• Colour: Natural aluminium (silver)
• Series: Bopla Filotec

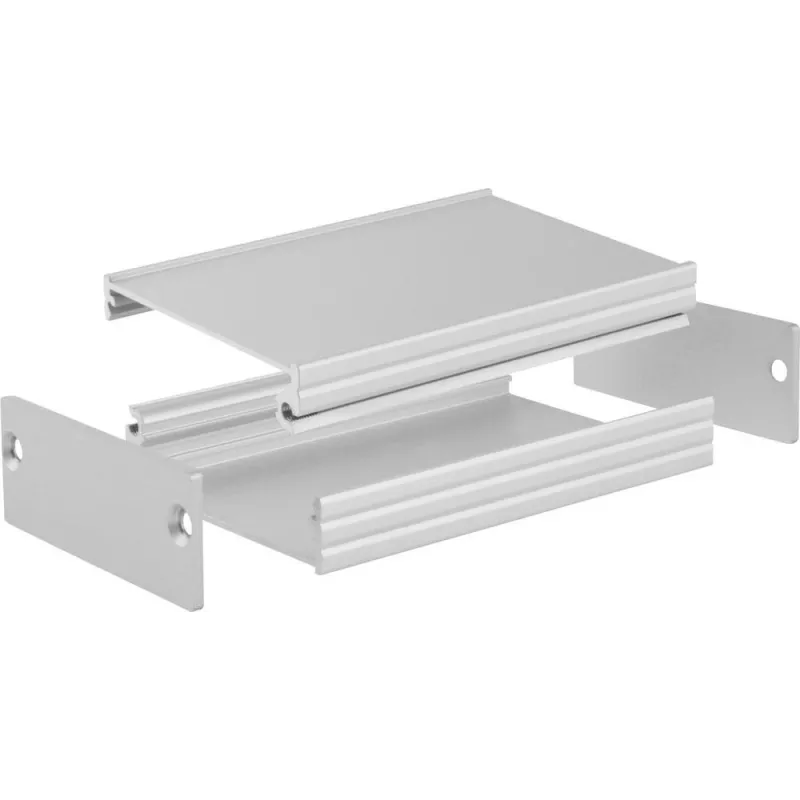

• Construction: Extruded profile
• Mounting type: Internal screw channels
• Unit quantity: 1 piece

Tips

Pair with Bopla end plates and sealing kits for a complete enclosure solution. The anodized surface can be laser engraved for custom labelling.
