Carcasa eléctrica EFB Elektronik 53603.1 ancho 150 mm profundidad 55 mm altura 265 mm

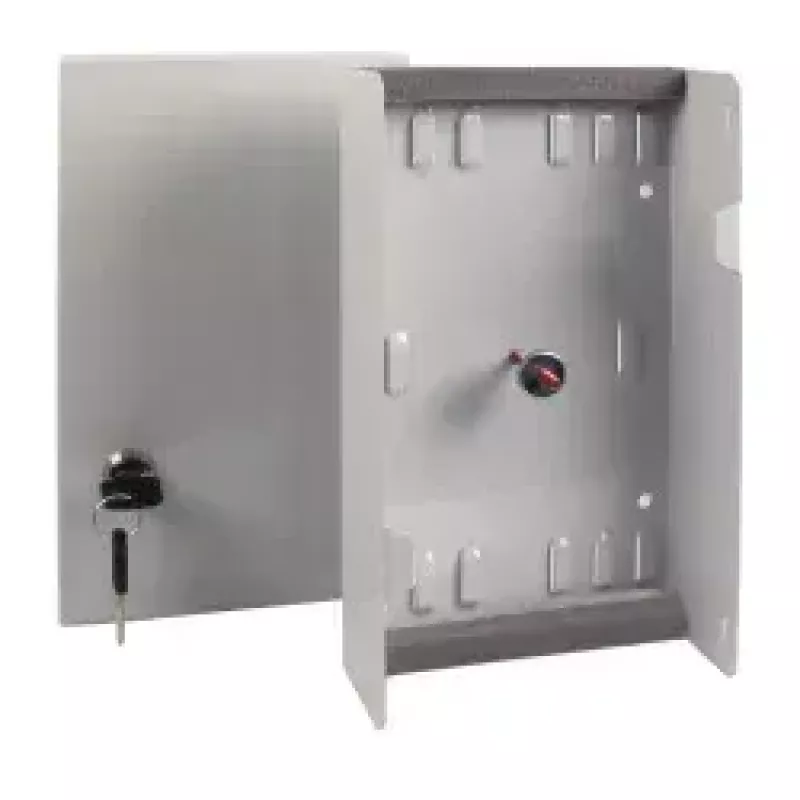

The EFB Elektronik 53603.1 electrical enclosure is a lockable steel housing designed to protect splices and distribution components. With external dimensions of 150 mm (width) × 55 mm (depth) × 265 mm (height), the enclosure accommodates up to four splice cassettes or one splice cassette plus a distribution plate. The housing includes two cable entries fitted with dust-tight strips and a swivel lid secured by a lock with two keys.

Advantages

The steel construction offers mechanical strength and long-term durability. A lockable swivel lid increases security and access control, while the dust-tight cable entry strips help protect internal components from contamination. The compact footprint suits installations with limited space yet allows flexible internal configuration for splices and distribution plates.

Suitable for

• Indoor and sheltered outdoor fiber optic splice protection
• Small distribution points in buildings and communication cabinets
• Installations requiring a lockable enclosure for access control

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 53603.1
• EAN: 4049759036393
• Material: steel sheet
• Dimensions (W × D × H): 150 × 55 × 265 mm
• Cable entries: 2 openings with dust-tight strips
• Capacity: up to 4 splice cassettes or 1 splice cassette + 1 distribution plate
• Locking: swivel lid lockable, supplied with 2 keys

How to use

Mount the enclosure on a suitable flat surface using appropriate fasteners (not supplied). Route incoming and outgoing cables through the two openings and secure them with cable ties through the provided passages. Install splice cassettes or a splice cassette with a distribution plate inside the enclosure according to the cassette manufacturer’s instructions. Close the swivel lid and lock it with the supplied keys after completing connections.

Recommendations

For exterior installations choose a sheltered location to avoid direct exposure to weather. Ensure cable entry strips are fitted correctly to maintain dust protection and use suitable cable ties and strain relief to prevent stress on splices. Periodically check the lock and seals for wear.
